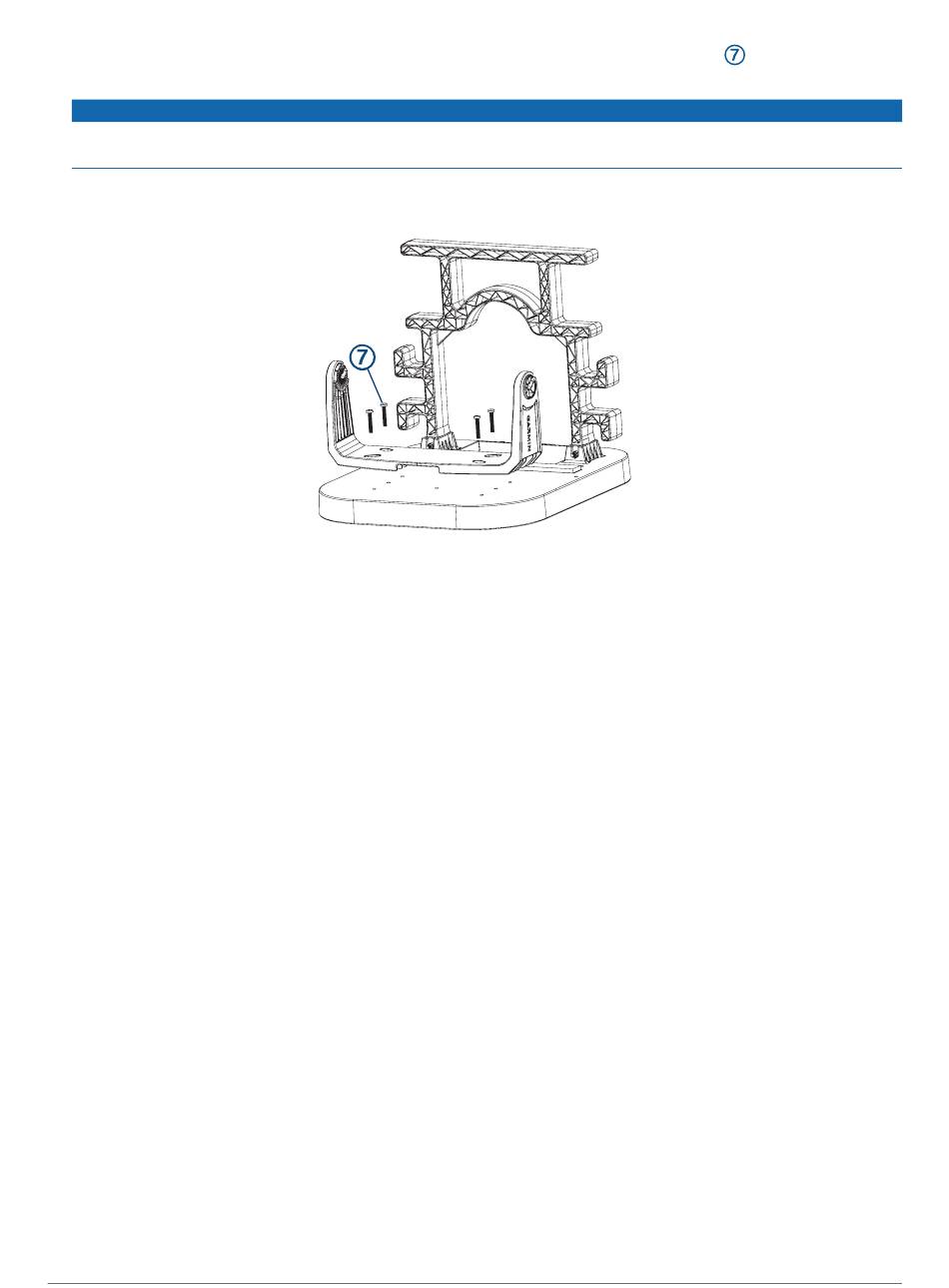

6 Secure the device mount to the base using the four included 24 mm machine screws
washers, if you are installing a metal bail mount.
Only use the included washers if you are installing a metal bail mount. If you are installing a plastic bail
mount, do not use the four included washers.
NOTE: Do not use the self-threading screws included with the chartplotter. Only use the machine-threaded
screws included with this portable kit or use M4 machine screws.
7 Place the included rubber washers on the bail-mount knobs, and screw the knobs into the sides of the cradle
or chartplotter.
8 Place the cradle or chartplotter into the bail mount, with the rubber washers between the knobs and the
cradle, and tighten the knobs.
The rubber washers enable you to adjust the viewing angle without adjusting the knobs.
9 Place the battery (not included) into the battery compartment under the handle.
10 Pull the straps under and around the bottom of the portable mount, and wrap them tightly around the
battery.

Placing the Portable Mount in the Bag

After you have assembled the portable mount, you should place it in the bag, which makes it easier to carry and
protects it from the elements. The bag contains loops that allow you to tether the bag as needed.
1 Place the portable mount into the bag.
2 If necessary, wrap the excess power cable and transducer cables around the handle.
3 Close all of the zippers.
You can use the zipper at the back of the bag for quick access to charge the battery. You can store the wall
charger in the interior zippered pocket, and store the transducer in the exterior side pocket.
2
NOTICE
and the included
