Garmin PANOPTIX Installation Instructions

Ice fishing kit

Assembling the Portable Mount

You need a Phillips screwdriver to assemble the portable mount.

1 Insert the handle

into the two openings on the portable mount base

2 Secure the handle to the base using the two 42 mm machine screws

3 Slide the included hook and loop straps through the narrow slots beside the battery compartment.

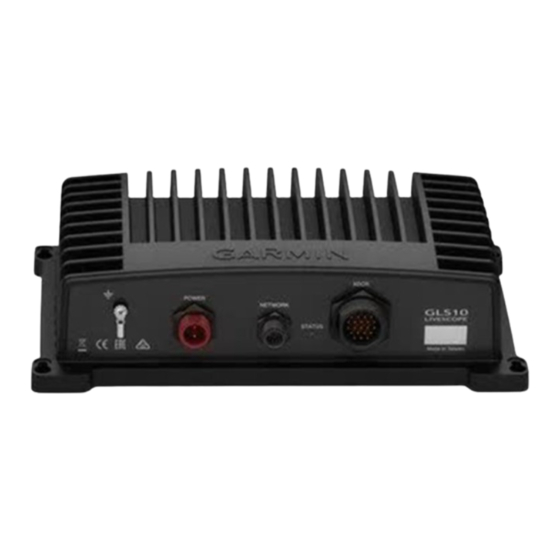

4 If you are installing a Panoptix LiveScope

washers, and flat washers, attach the two included brackets

the portable mount.

5 Align the chartplotter bail mount over the hole pattern that matches your bail mount, with the openings on

the top of the bail mount facing the back of the base.

March 2021

PANOPTIX

™

INSTALLATION INSTRUCTIONS

sonar module , using the eight included 21 mm screws

™

ICE FISHING KIT

and two nuts

to the module, and secure the brackets to

GUID-C5E8D7D2-C09F-45FD-82BF-4470A5CE1713 v2

, split

Table of Contents

Do you have a question about the PANOPTIX and is the answer not in the manual?

Page 1 2 Secure the handle to the base using the two 42 mm machine screws and two nuts 3 Slide the included hook and loop straps through the narrow slots beside the battery compartment. 4 If you are installing a Panoptix LiveScope sonar module , using the eight included 21 mm screws , split ™...
Page 2 6 Secure the device mount to the base using the four included 24 mm machine screws and the included washers, if you are installing a metal bail mount. NOTICE Only use the included washers if you are installing a metal bail mount. If you are installing a plastic bail mount, do not use the four included washers.
Page 3 ® /support/warranty.html. © 2019 Garmin Ltd. or its subsidiaries Garmin ® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. LiveScope and Panoptix are trademarks of ™ ™ Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
