ASSEMBLY INSTRUCTIONS
BEFORE YOU ASSEMBLE:
• P lace all parts on a clean, smooth surface to avoid scratching the parts
• C heck to be sure you have all parts and hardware
• R emove all wrapping materials, including any staples & packing straps
• K eep all hardware, small parts and packaging out of reach of children
IN THE BOX:
A: Metal
B: Front
Triangle
Leg
2 Pcs
2 Pcs
D: X-Wire
E: Bracket
2 Pcs
G: 2
Shelf
H: 3
nd
C: Rear
Leg
2 Pcs
F: Bottom
Shelf
Shelf
I: Top Shelf
rd
Find your niche
VERSATILE AND MODERN
J: Long
K: Small
Screw
16 Pcs
8 Pcs
N: Screw
O: L-
Cap
4 Pcs
1 Pc
R: Wall
Anchor
1 Pc

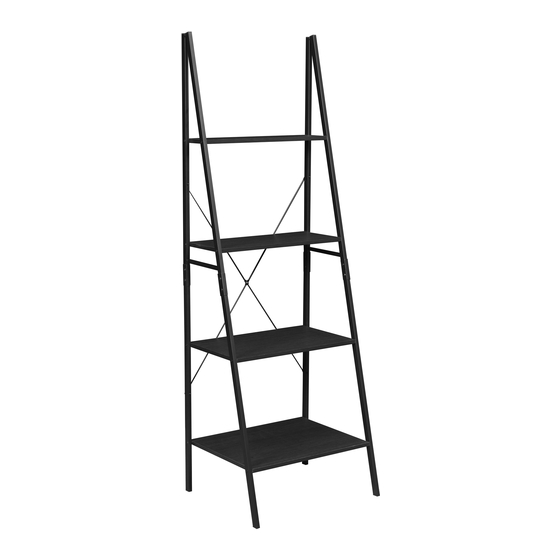

SOHO 72" LADDER BOOKCASE
NSBC7224
I
A
H
D
G
F
C
L: Medium
Bolt
Bolt
(10mm)
(15mm)
8 Pcs
P: Small
Bracket
Screw
1 Pc
B
M: Long
Bolt
4 Pcs
Q: Tapping
Screw
1 Pc
Advertisement
Table of Contents
Related Manuals for Niche SOHO 72 LADDER BOOKCASE NSBC7224
Summary of Contents for Niche SOHO 72 LADDER BOOKCASE NSBC7224

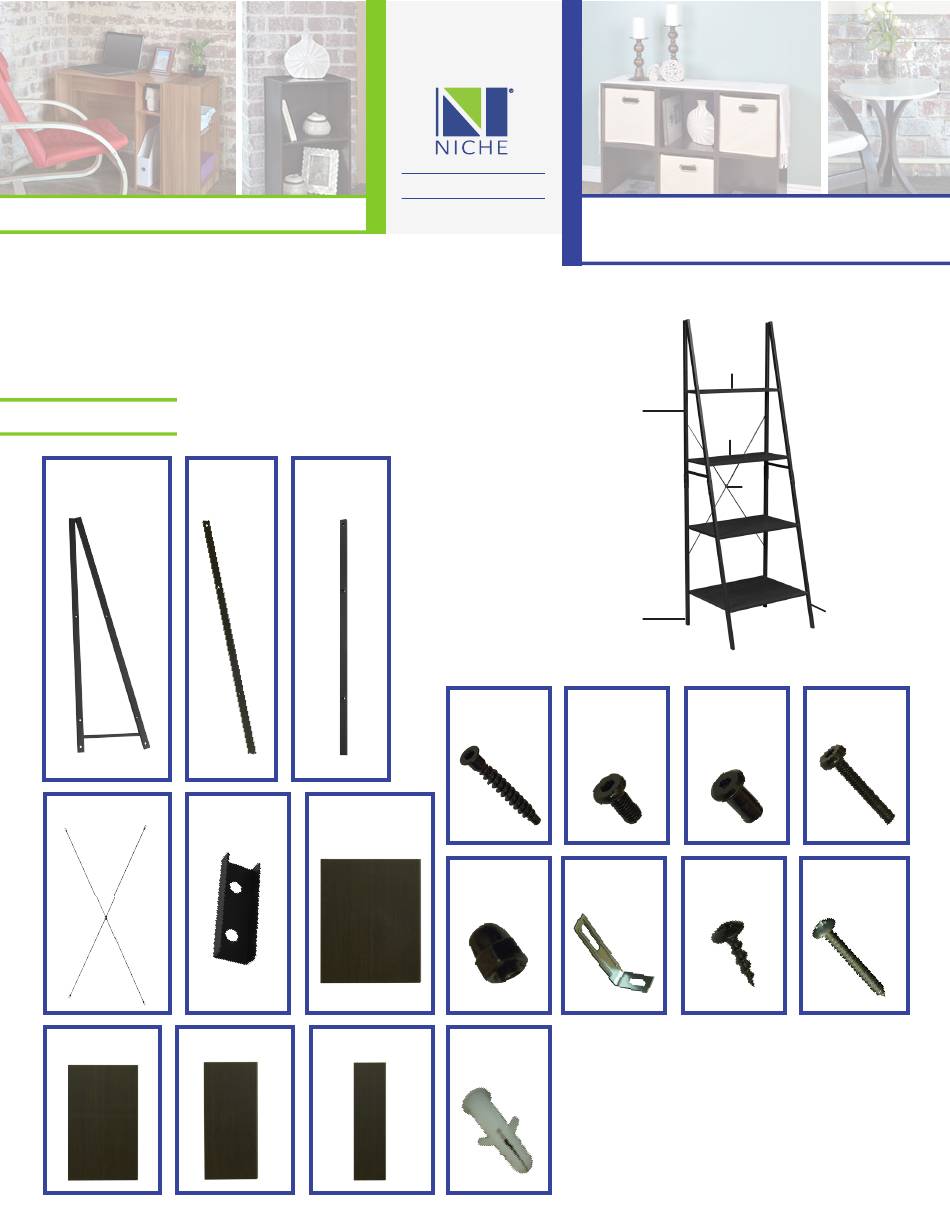

- Page 1 Find your niche VERSATILE AND MODERN SOHO 72” LADDER BOOKCASE ASSEMBLY INSTRUCTIONS NSBC7224 BEFORE YOU ASSEMBLE: • P lace all parts on a clean, smooth surface to avoid scratching the parts • C heck to be sure you have all parts and hardware • ...
- Page 2 Find your niche VERSATILE AND MODERN SOHO 72” LADDER BOOKCASE ASSEMBLY INSTRUCTIONS NSBC7224 STEP 1 STEP 2A Align Metal Triangle (A) with Front Leg (B). Using Small Bolt (K) and Med. Bolt (L) attach Bracket (E) to both Metal Triangle (A) and Front Leg (B). Insert Small Bolt (K) and Med.
- Page 3 Find your niche VERSATILE AND MODERN SOHO 72” LADDER BOOKCASE ASSEMBLY INSTRUCTIONS NSBC7224 STEP 3B STEP 4 Using 8 Long Screws (J) attach remaining Leg to Shelves (F, G, Attach X-Wire (D) to the back of Rear Leg (C) by lining up with H &...
- Page 4 Find your niche VERSATILE AND MODERN SOHO 72” LADDER BOOKCASE ASSEMBLY INSTRUCTIONS NSBC7224 OPTIONAL STEP 5C Attach bookcase to your wall by inserting the Tapping Screw (Q) through the L-Bracket (O) and in to the wall or Wall Anchor (R).
