ASSEMBLY INSTRUCTIONS
BEFORE YOU ASSEMBLE:
• P lace all parts on a clean, smooth surface to avoid scratching the parts
• C heck to be sure you have all parts and hardware
• R emove all wrapping materials, including any staples & packing straps
• K eep all hardware, small parts and packaging out of reach of children
IN THE BOX:
A: Wood Frame (2)
C: Back Frame (1)
E: Medium Bolt (4)
G: Long Bolt with Insert (4)
I: Seat
Cushion
(1)
Find your niche
VERSATILE AND MODERN
B: Stringer (2)
D: Seat Frame (1)
F: Small Bolt (2)
H. Threaded
Flange (2)

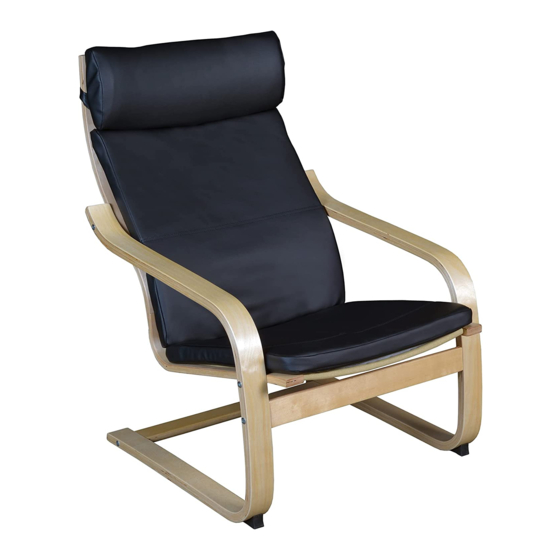

MIA RECLINING CHAIR
N2020LNTBK & N2050LNTBK
J. Allen Wrench
(1)
K. Headrest
Advertisement
Related Manuals for Niche MIA N2020LNTBK
Summary of Contents for Niche MIA N2020LNTBK
- Page 1 Find your niche VERSATILE AND MODERN MIA RECLINING CHAIR ASSEMBLY INSTRUCTIONS N2020LNTBK & N2050LNTBK BEFORE YOU ASSEMBLE: • P lace all parts on a clean, smooth surface to avoid scratching the parts • C heck to be sure you have all parts and hardware • ...
- Page 2 Find your niche VERSATILE AND MODERN MIA RECLINING CHAIR ASSEMBLY INSTRUCTIONS N2020LNTBK & N2050LNTBK STEP 1 Attach Stringers (B) to Wood Frames (A). Remove Inserts from Large Bolts (G) and place Inserts into pre-drilled holes on Stringers (B) (See Figure 1.) Insert Large bolts (G) from outside of Wood Frames (A) and connect to Inserts using Allen Wrench (H). Please Note: Do not completely tighten bolts yet.
- Page 3 Find your niche VERSATILE AND MODERN MIA RECLINING CHAIR ASSEMBLY INSTRUCTIONS N2020LNTBK & N2050LNTBK IN THE BOX N2050LNTBK OTTOMAN M: Stringers (2) L: Cushion (1) O: Long Bolt with Inserts (4) N: Wood Frame (2) P: Medium Bolts (4) STEP 1 STEP 2 Attach Stringers (M) to Wood Frames (N).
