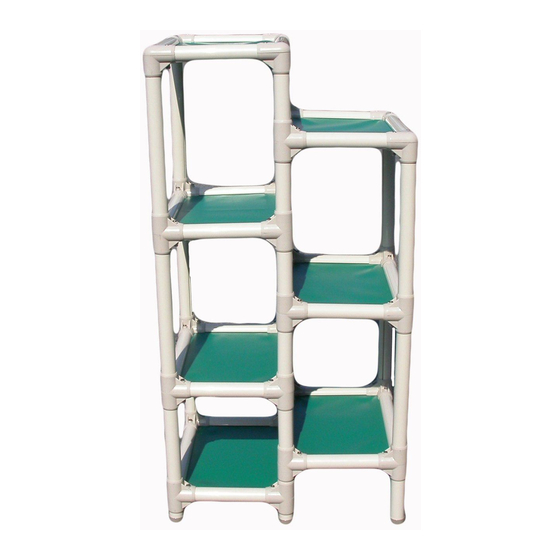

Assembly Instructions For Kuranda 7 Tier Cat Tower
Fabric mats
2.5"
7"
11"
16"
PVC leg pipes

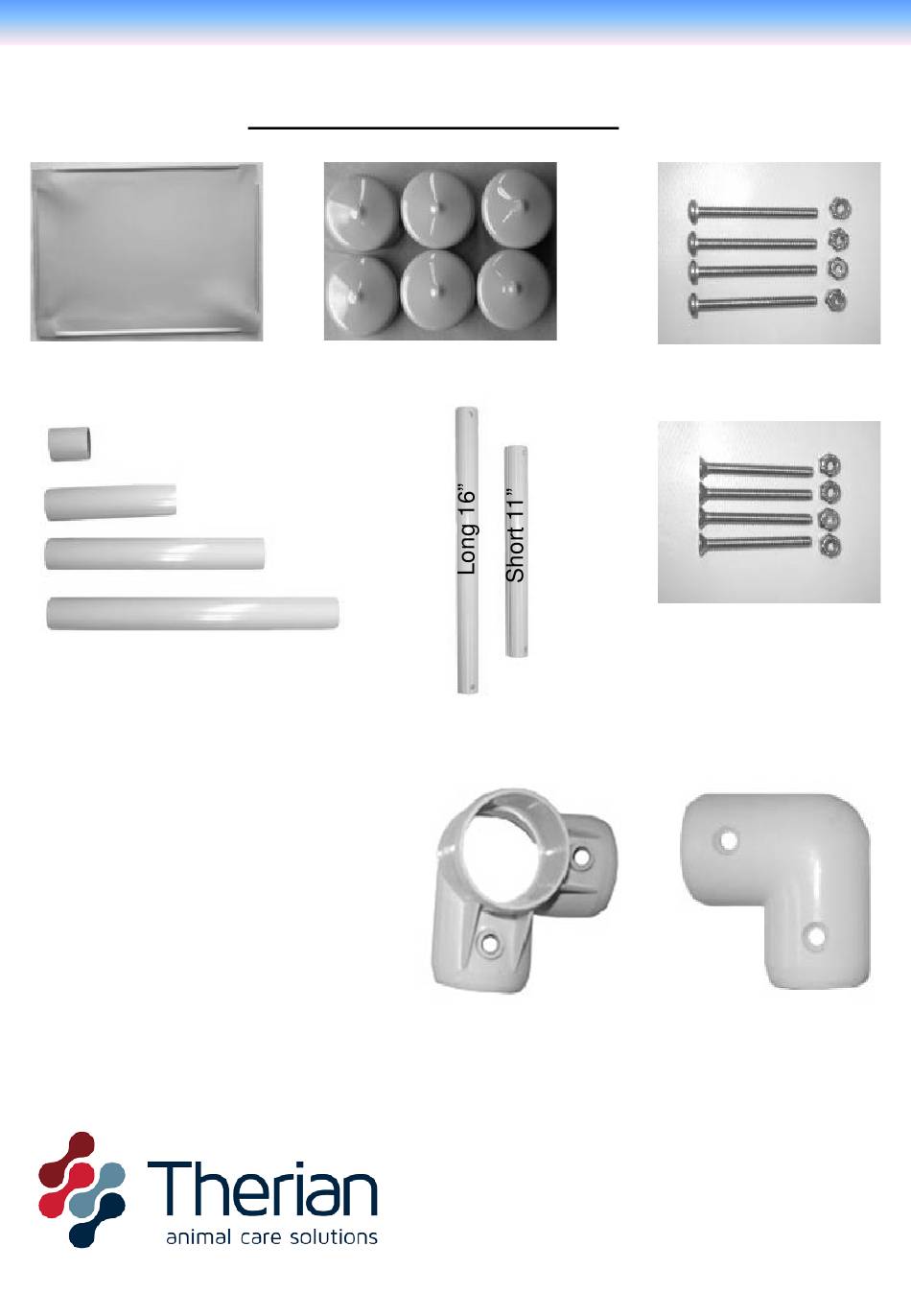

Parts List-
(7) Fabric Mats
(8) 16" PVC leg pipe
(12) 7" PVC leg pipe
(2) 11" PVC leg pipe
(6) 2.5" PVC leg pipe
(14) Long side PVC frame
(14) Short side PVC frame
(6) gray leg caps
(6) top corners
(50) bottom corners
(12) machine screws
(44) pan head screws (2 ¾")
(56) lock nuts
7 Nest Cat Tower Parts List
Gray leg caps
PVC frame pipe
bottom corners
Tools Needed – Phillips Head
Screwdriver, 7/16 Wrench or
Adjustable Wrench, level & rubber
mallet. Flat surface to work on.
2.75" pan-head screws
with locknuts
Machine screws
with locknuts
top corners
