Kuranda All-Aluminum Dog Bed Assembly Instructions

Assembly Instructions For All-Aluminum Kuranda Dog Bed
Tools Needed –
#2 Head Screwdriver
11mm or 7/16 Wrench or Pliers or Adjustable
Wrench
Flat surface on which to work (table preferred)
Parts List-
1 Fabric Mat
4 lengths of Alum slotted pipe (2 long & 2 short)
4 Alum legs, 4 Leg caps
4 top corner brackets & 4 bottom corner brackets
8 machine screws , 8 split washers & 8 nuts
4 set screws for alum leg & bottom corner
4 pieces black plastic cording for the sleeves of
the Cordura & Vinyl Weave fabrics
NOTE: Heat Welded 40oz Vinyl fabrics have the
cording already encased in outer edge of fabric.

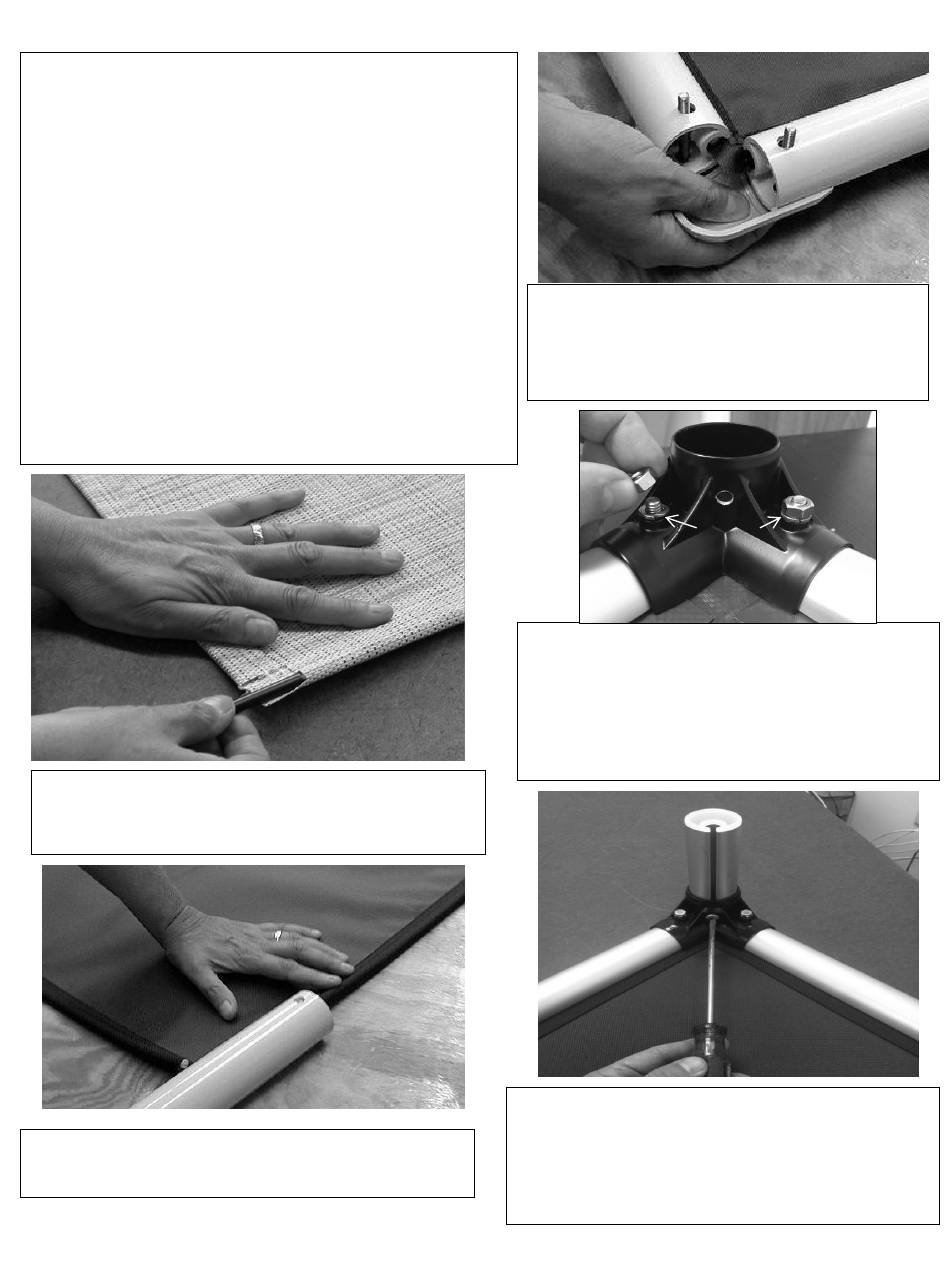

Lay fabric flat with underside facing up and
insert cording into sleeve. Note that 40oz
Vinyl fabric comes with cording in the sleeve.
Insert fabric sleeves into the channel on each
length of pipe.
Continuing to work with the underside of
the fabric facing up, position one top
corner bracket and insert bolts through
bracket and pipe.
Place a bottom corner bracket over pipes,
insert screws through openings, place split
washer over screw, secure with a nut and
1
hand tighten. Insert and secure second
screw. Repeat process at each of other
three corners.
2
Insert legs into bottom corner. Rotate leg
so slot aligns with set screw hole. Secure in
place with set screw. This is purposely a
tight fit so it will take some effort to fully
tighten screws.
Split washers
3
4
5
