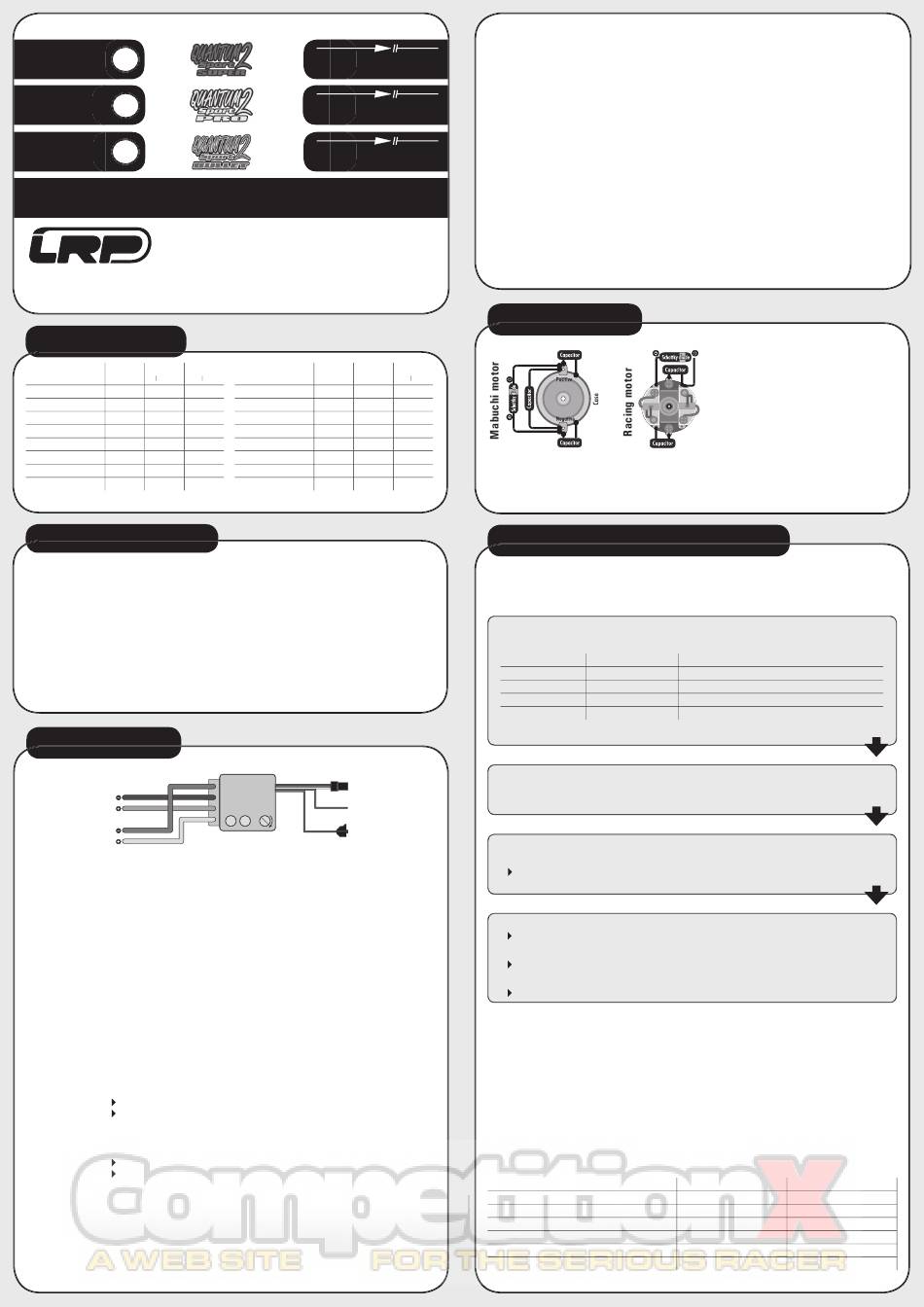

LRP QUANTUM SPORT 2 Series User Manual

RA00254
ORDER NO.:
84610
ORDER NO.:
84510
ORDER NO.:
84410
USER GUIDE
LRP electronic GmbH
Wilhelm-Enssle-Str. 132-134
73630 Remshalden
Germany
info@LRP.cc
www.LRP.cc
1. SPECIFICATION
Quantum Quantum Quantum
Super Sport 2 Pro Sport 2 Pro Sport 2 Pro Bullet Sport 2 Bullet Bullet Sport 2
Forward / Brake yes yes yes
Case Size
25,4x23,1x16 25,4x23,1x16 25,4x23,1x16
Weight (excl. wires) 15,5 g 16,0 g 16,5 g
Voltage Input
4,8 - 9,6 V 4,8 - 9,6 V 4,8 - 9,6 V
Typical Voltage Drop** @20A - 0,037V @20A - 0,025V @20A - 0,015V
Rated Current*
50A 75A 125A
Rec. Motor Limit** over 13 turns over 10 turns over 7 turns
B.E.C. 5,0V 5,0V 5,0V
* Transistors rating at 25°C junction temperature
** measured at 7.2V
2. INSTALLATION TIPS
• Mount the speed-control using the supplied thick/black doubled-sided tape.
• Position the speed-control where it is protected in the event of a crash.
• Install the speed-control so that you have easy access to the connector and buttons.
• Make sure there is enough clearance (about 3cm) between the speed-control, power-wires, antenna and
receiver. Avoid any direct contact between power components, the receiver or the antenna. This can cause
interference. If interference occurs, position the components at a different place in the model.
• The aerial should be run vertically up and away from the receiver. Avoid contact with any parts made of
carbon fibre or metal. If the aerial is too long, don't coil up the excess length. It is better to cut it down to a
length of about 35 cm. See also the instructions supplied with your radio control system.
• Make sure there are enough cooling slits in the body. This will increase the performance and life of all the
electronic components.
3. CONNECTIONS
Battery: black-minus
Battery: red-plus
Motor: blue-minus
Motor: yellow-plus
RECEIVER CONNECTING WIRE:
This LRP speed-control is equipped with a LRP Multicon receiver wire. As supplied, it will easily fit in all ordi-
nary receivers.
POWER WIRES:
The QUANTUM SPORT 2 series speed-controls come pre-wired using common „Tamiya-/JST style" battery and
motor connectors. Together with a motor and a pre-assembled battery-pack from LRPs selection of motors and
battery packs, the speed-control can be used instantly without the need of a solder iron.
You can also solder the power wires of the speed-control directly to the motor, if you do not want to use the
supplied plugs. Nevertheless some soldering skills are still required. However please note, that your warranty
may void if you cut-off the plugs. Therefore we recommend using the original power-wires and plugs.
INSTALLATION:
Your QUANTUM SPORT 2 series speed-control comes pre-wired using common „Tamiya-/JST style" battery
and motor connectors. Be very careful with the correct wire sequence/colours since an incorrect connection
may damage the speed-control!
• Mount the speedo using the supplied thick/black doubled-sided tape.
• Connect the receiver connecting wire of the speed-control with the receiver (position: Channel 2).
• Connect the speed-control to the motor:
Yellow wire Connect to motor „Plus"
Blue wire Connect to motor „Minus"
CAUTION: Be careful with the correct polarity!
• Doublecheck all connections before connecting the speed-control to a battery.
CAUTION: If a battery is connected with reversed polarity it will destroy your speed-control!
Red power-wire Connect to battery „Plus"
Black power-wire Connect to battery „Minus"
• Doublecheck all connections before connecting the speed-control to a battery.
CAUTION: If a battery is connected with reversed polarity it will destroy your speed-control!
• You can now switch on the speed-control with the On/Off switch.
• The speed-control is now ready to be set-up (please see section 5).
Note: If your servo has an external FET connection, you have to connect it to the blue FET servo wire of the
speed-control.
© LRP electronic GmbH 2008
FORWARD BRAKE
OVER 13 TURNS
FORWARD BRAKE
OVER 10 TURNS
FORWARD BRAKE
OVER 7 TURNS
Quantum Quantum Quantum
Super Sport 2 Pro Sport 2 Bullet Sport 2 Bullet Sport 2 Bullet
4, 5, and 6 Cell optimised yes yes yes
High Frequency yes yes yes
EPS Easy Programming System yes yes yes
Improved Brake Feel yes yes yes
Adjustable Power Control APC-2 yes yes yes
Multi-Protection-System yes yes yes
Standard TamiyaStyle Connectors yes yes yes
AutoCell System yes yes yes
Specifications subject to change without notice.
Receiver Connecting
Wire
FET-Servo wire
(Quantum Bullet Sport 2 only)
On/Off Switch
Dear Customer,
thank you for your trust in this LRP product. By purchasing a QUANTUM SPORT 2 series speed-control you
have chosen a high-performance product full of new design features, such as:
• Longer runtimes thanks to Ultra-High-Performance SMD-MOS FETs
• Small size
• Super lightweight
• Plug-in-and-drive, fully wired and ready to plug-in
• Improved version of the legendary QUANTUM SPORT series
• Foward/brake control for maximum performance
• APC-2 – Adjustable Power Control
Please read the following instructions carefully before you start using your QUANTUM SPORT 2 speed control.
This user guide contains important notes for the safety, the use and the maintenance of this product. Thus
protecting yourself and avoid damages of the product.
Proceed according to the user guide in order to understand your QUANTUM SPORT 2 speed control better.
Please take your time as you will have much more joy with your product if you know it exactly.
This user manual shall be kept in a safe place. If another customer is using this product, this manual has to be
handed out together with it.
4. SUPPRESSION
The Schottky diode improves the efficiency of the speed-control/motor combination and provides extra protec-
tion to the brake FETs. Solder the diode in place as shown in the illustration. The white ring must always face
the positive motor terminal.
5. RADIO / SPEED-CONTROL SET-UP
In setup mode, the QUANTUM SPORT 2 series speed-control stores every step when you press the SET button.
All the settings will be stored in the speed-controls memory even if the speed-control will be disconnected
from the battery.
TRANSMITTER SETTINGS
Setup the following basic functions on your transmitter (if available):
Throttle travel High ATV, EPA
Brake travel Low ATV, EPA, ATL
Throttle exponential EXP, EXPO
Neutral trim SUB Trim
Servo reverse Throttle reverse
If your transmitter doesn't offer any of above functions, it's already in „basic setup" mode.
• Ensure that the speed-control is not connected to the drive battery and is switched off.
• Remove motor pinion or ensure that the wheels of the model are free to rotate.
• Switch the transmitter on and set the transmitter throttle stick to neutral.
• Connect the speed-control to the battery and switch the unit on.
• Hold the SET button pressed for at least 3sec using the supplied plastic screwdriver.
You entered setup mode and the lower SET-LED flashes green (it will flash until the setup is comple-
ted).
• Leave transmitter in neutral position and press the SET button once.
Neutral setting is stored.
• Hold full throttle on transmitter and press the SET button once.
Full-throttle setting is stored.
• Hold full brake on transmitter and press the SET button once.
Brake setting is stored.
• This completes the setup procedure and your QUANTUM SPORT 2 series speed-control is ready to use.
• If you have made a mistake so far, don't worry: Switch off the speed-control for about 10 seconds and start
over again.
• After the run, first switch off the speed-control, unplug the battery and then switch off the transmitter.
When you start again, first switch on the transmitter, then plug in the battery and switch on the speed-
control.
• Always disconnect the drive battery from the speed-control, if you are not using your model.
CHECKING THE FUNCTIONS:
Check the LED when moving your throttle stick and you will see if everything is setup correctly.
FUNCTION
Neutral
Temprature protection
Forward
Forward
Brake
Brake
Motors with no capacitors or not enough ca-
pacitors may interfere with the speed-control.
To avoid this, solder the supplied capacitors to
your motor (see picture).
maximum
maximum
start with 0
centre
any setting, don't change after set-up procedure!
STATUS LED GLOWS
-- dark green
-- flashes bright green
partial throttle bright green
full throttle off
partial brake bright green
full brake off
