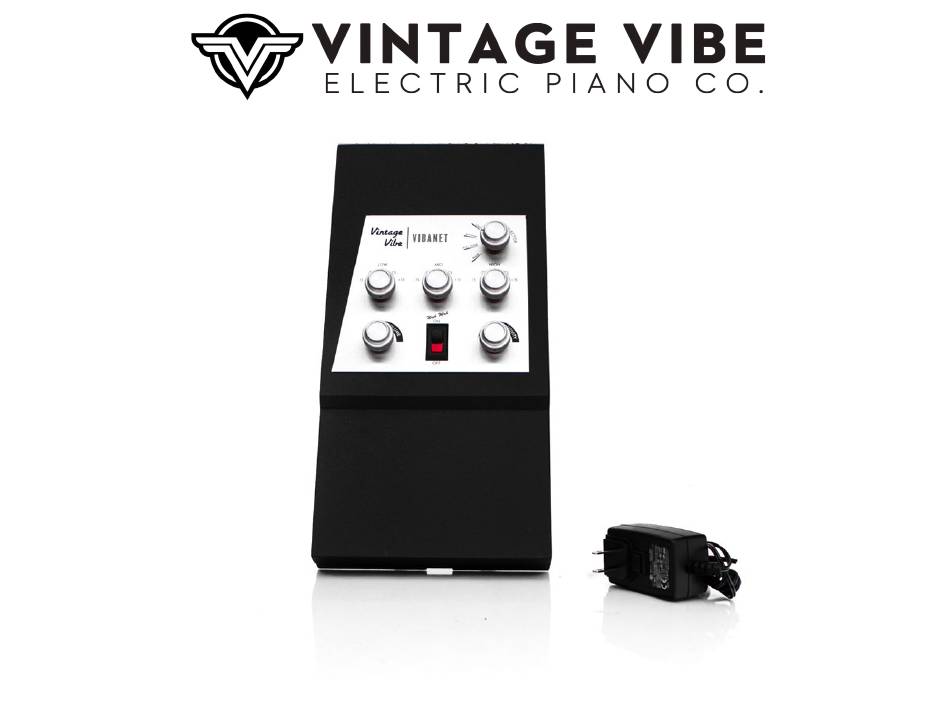

VIBANET PREAMP: E7 INSTALLATION

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIBANET E7 and is the answer not in the manual?

Questions and answers

Related Manuals for Vintage Vibe VIBANET E7

Summary of Contents for Vintage Vibe VIBANET E7

  • Page 1 VIBANET PREAMP: E7 INSTALLATION...
  • Page 2 REMOVE PREAMP HOUSING AND UNPLUG PICKUP WIRING PCB FROM MAIN PCB UNSCREW AND REMOVE LEFT FRONT SUPPORT BLOCK FROM BASE DESOLDER WIRES FROM PICKUP WIRING PCB.* * WE HAVE INCLUDED A DIAGRAM AT THE END OF THIS DOCUMENT SHOULD YOU EVER WISH TO REINSTALL AN ORIGINAL E7 PREAMP...
  • Page 3 THE BLUE WIRE IS A GROUND WIRE UNNECESSARY FOR THIS INSTALLATION. YOU MAY EITHER CLIP IT BACK TO PREVENT ANY POSSIBLE SHORT OR GO AHEAD AND REMOVE IT ALL TOGETHER.
  • Page 4 VIBANET E7 WIRING DIAGRAM 1) ENSURE THAT SUFFICIENT WIRE IS INSERTED INTO THE TERMINALS AND NOT WIRE INSULATION. 2) ENSURE THAT SCREWS ARE TIGHTENED BUT DO NOT OVER-TORqUE. 3) THE POWER & OUTPUT CONNECTORS ARE DESIGNED TO MATE WITH THE PCB SOCKET IN ONE DIRECTION ONLY.
  • Page 5 E7 PICKUP WIRING PCB 1. Blue ground wire to top pickup ground lug. 2. Bottom pickup shield. 3. Bottom pickup red wire. 4. Top pickup yellow wire 5. Bottom pickup yellow wire. 6. Top pickup red wire. 7. Top pickup shield.
