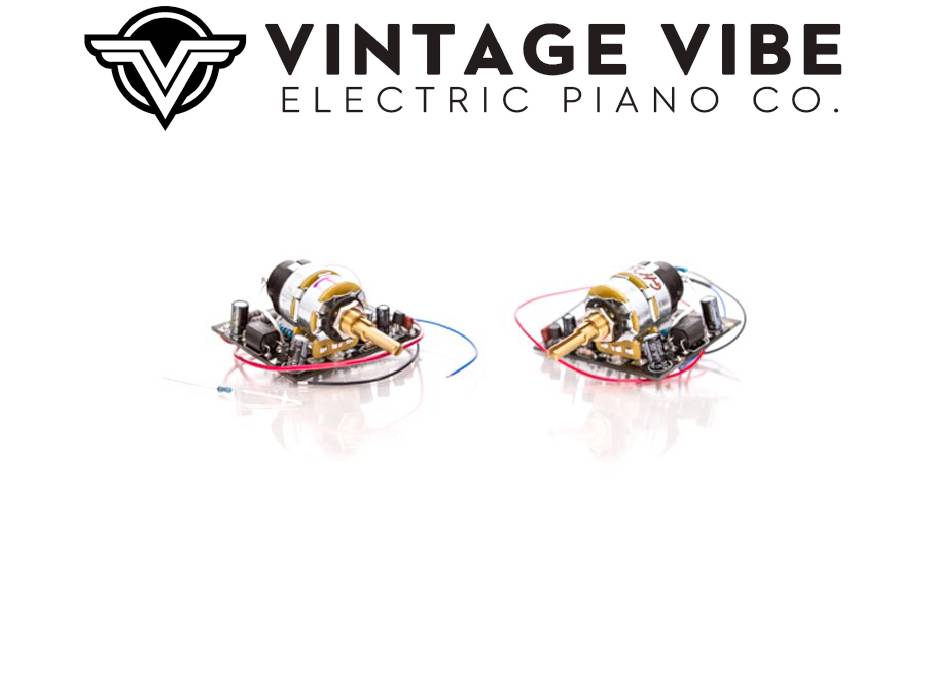

- Page 1 200 & 200A Wurlitzer Vari Vibe Installation...
- Page 2 TABLE OF CONTENTS M O D E L 2 0 0 V I N TA G E A M P L I F I E R ......P A G E 2 M O D E L 2 0 0 A V I N TA G E A M P L I F I E R .
- Page 3 ModEl 200 VIntAGE AMPlIfIEr 1. Unplug piano from wall outlet and ensure all voltage is drained from circuit before installation. 2. Desolder the vibrato pot leads from the amplifier PCB and remove the pot from the rail. 3. remove r42* (1K)from the amplifier PCB.
- Page 4 ModEl 200A VIntAGE AMPlIfIEr 1. Unplug piano from wall outlet and ensure all voltage is drained from circuit before installation. 2. Desolder the vibrato pot leads from the amplifier and preamplifier PCBs and remove the pot from the rail. 3. Install the Vari Vibe pot and PCB on the rail where the old vibrato pot was located. 4.
- Page 5 VINTAGE VIBE ClASSIC 200 AmPlIFIER 1. Unplug piano from wall outlet and ensure all voltage is drained from circuit before installation. 2. Desolder the vibrato pot leads from the amplifier PCB and remove the pot from the rail. 3. remove r26 (1K) from the amplifier PCB.
- Page 6 VINTAGE VIBE 200A WuRly-VIBE AmPlIFIER 1. Unplug piano from wall outlet and ensure all voltage is drained from circuit before installation. 2. Desolder the vibrato pot leads from the amplifier and preamplifier PCBs and remove the pot from the rail.
