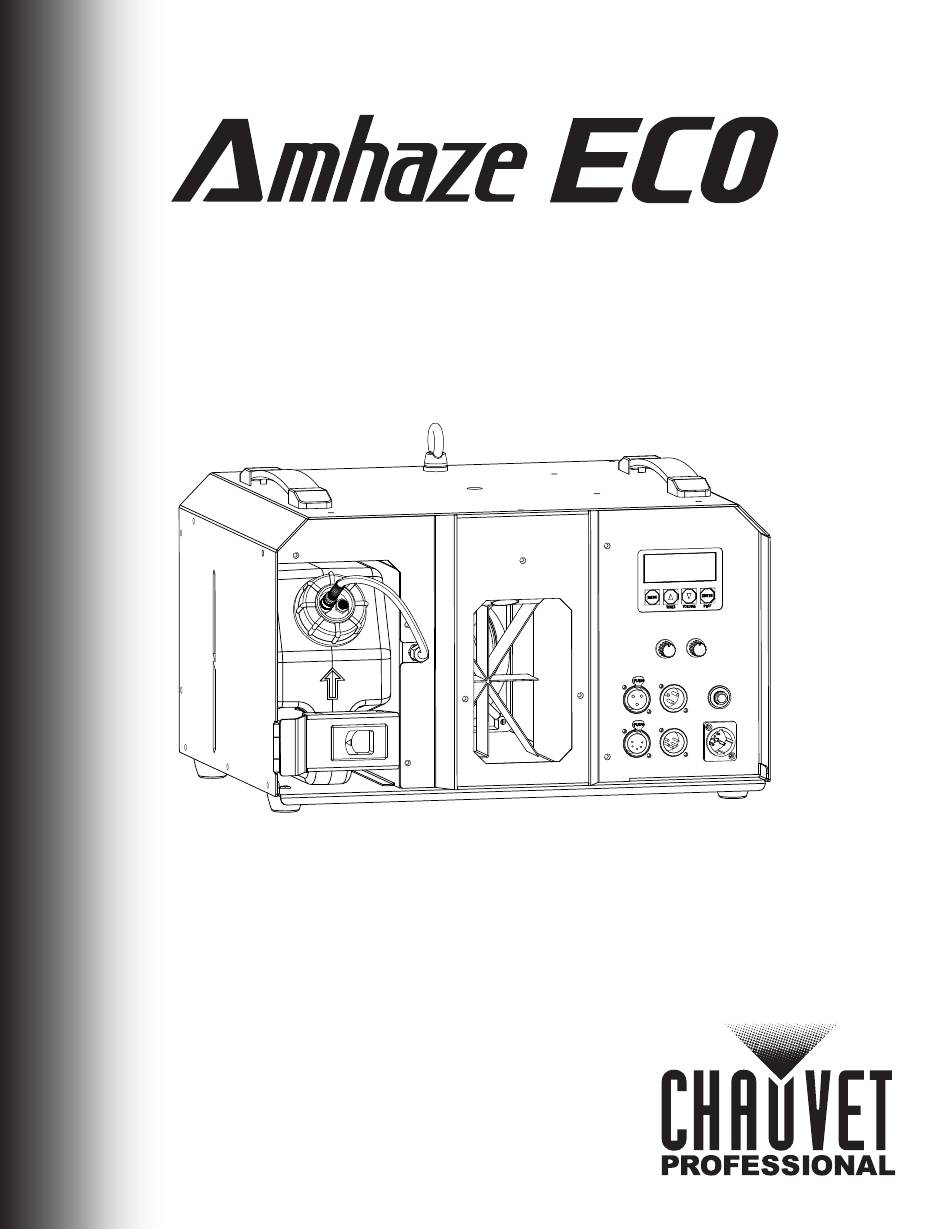

  • Page 1 User Manual Model ID: AMHAZEECO 220AMHAZEECO...
  • Page 2 Edition Notes The AmHaze ECO User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the AmHaze ECO as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and AmHaze ECO are registered trademarks or trademarks of Chauvet &...
  • Page 3: Table Of Contents

    Fan Speed........................Timer Interval ......................... Timer Duration ....................... Configuration (Settings) ................... RDM-UID ........................Fluid Sensor........................Auto Run Last Setting ..................... Auto Shutdown........................ 5. Maintenance....................Product Maintenance ....................Storage........................6. Technical Specifications................Returns ......................Contact Us......................AmHaze ECO User Manual Rev. 1...
  • Page 4: Before You Begin

    Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Page 1 of 14 AmHaze ECO User Manual Rev. 1...
  • Page 5: Safety Notes

    The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures. • In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. AmHaze ECO User Manual Rev. 1 Page 2 of 14...
  • Page 6: Introduction

    120 cfm will last over 8 hours. Easily control the output and fan speed via DMX or on the on-board control knobs. The AmHaze ECO comes ready to rest on the floor and is also equipped with M12 threaded inserts for truss clamps, an easy way to mount the 25lb machine.
  • Page 7: Setup

    3. Setup AC Power The AmHaze ECO has a fixed power supply that works with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
  • Page 8: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The AmHaze ECO comes with a bracket to which you can attach a mounting clamp directly. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product.
  • Page 9: Operation

    Manually controls the fan speed, 0–100% HAZE VOLUME knob Manually controls the haze volume, 0–100% Control Options Set the AmHaze ECO starting address in the 001–510 DMX range. This enables control of up to 170 products. Programming Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option.
  • Page 10: Rdm Chart

    Operation RDM Chart Refer to the AmHaze ECO product page on www.chauvetprofessional.com for the latest RDM chart. Category RDM Parameter ID's (Slots 21-22) Value Detail DISC_UNIQUE_BRANCH 0x0001   DISC_MUTE 0x0002   DISC_UN_MUTE 0x0003 Network   Management PROXIED_DEVICES 0x0010 ...
  • Page 11 Network   Configuration INTERFACE_RENEW_DHCP 0x0707  INTERFACE_RELEASE_DHCP 0x0708  INTERFACE_APPLY_CONFIGURATI 0x0709   IPV4_DEFAULT_ROUTE 0x070A   DNS_IPV4_NAME_SERVER 0x070B   DNS_HOSTNAME 0x070C   DNS_DOMAIN_NAME 0x070D   AmHaze ECO User Manual Rev. 1 Page 8 of 14...
  • Page 12: Configuration (Dmx)

    2. Increase or decrease the value from 5–600S. Timer Duration To adjust the duration of timed haze outputs through the display menu: 1. Go to the Timer Duration level. 2. Increase or decrease the value from 5–300S. Page 9 of 14 AmHaze ECO User Manual Rev. 1...
  • Page 13: Configuration (Settings)

    1. Go to the Auto Run Last Setting level. 2. Select from YES or NO. Auto Shutdown To shut all functions down: 1. Go to the Auto Shutdown level. 2. Select from ON or OFF. AmHaze ECO User Manual Rev. 1 Page 10 of 14...
  • Page 14: Maintenance

    • FCQ (Fog Cleaner Quart) was specifically developed by CHAUVET to clean your AmHaze ECO. Make sure you use FCQ regularly to increase the life of your hazer. • Do not spin the fans using compressed air because you could damage the hazer.
  • Page 15: Technical Specifications

    3 and 5-pin XLR Ordering Product Name Item Name Item Code UPC Number AmHaze ECO (120V) AMHAZEECO 09071502 781462218508 AmHaze ECO (230V) 220AMHAZEECO 09071503 781462218515 UL 499 CSA C22.2 No. 64-10 E115095 AmHaze ECO User Manual Rev. 1 Page 12 of 14...
  • Page 16: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 13 of 14 AmHaze ECO User Manual Rev. 1...
  • Page 17: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. AmHaze ECO User Manual Rev. 1 Page 14 of 14...
