Summary of Contents for Chauvet Professional Amhaze Whisper

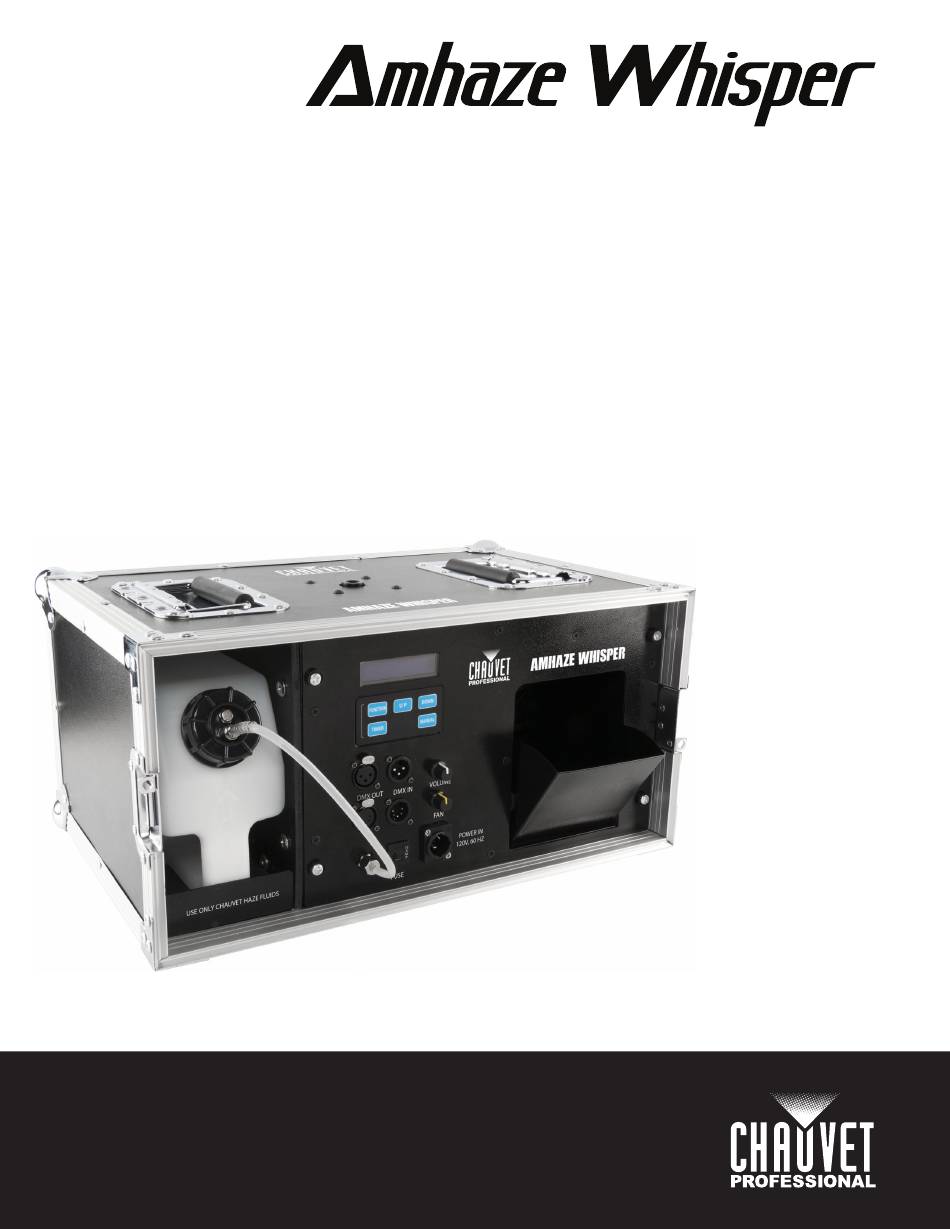

- Page 1 User Manual...
- Page 2 Edition Notes The Amhaze Whisper User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Amhaze Whisper as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Amhaze are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
DMX Control....................... Control Channel Assignments and Values............ Configuration (Settings) ................Interval ....................... Duration......................Priming the Pump..................5. Maintenance................Product Maintenance ..................Storing the Product ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Amhaze Whisper User Manual Rev. 8... -
Page 4: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Amhaze Whisper User Manual Rev. 8... -
Page 5: Safety Notes
In the event of a serious operating problem, stop using this product immediately! • Do not add perfume, alcohol, gasoline, or any other flammables to the fluid. • Use only CHAUVET water-based Premium Haze Fluid (PHF). If your Chauvet product requires service, contact Chauvet Technical Support. Amhaze Whisper User Manual Rev. 8... -
Page 6: Introduction

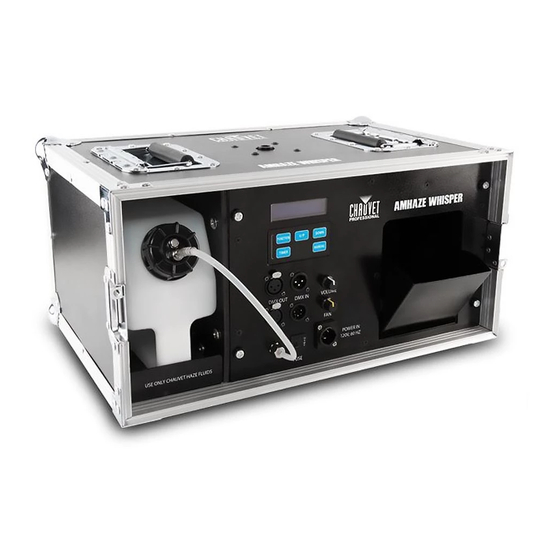

2. Introduction Description The Amhaze Whisper is an ideal haze machine for use in television studios and theatrical productions where discreet operation and rapid heat up time are key. The speed of the fan is controllable and the volume of haze fully adjustable up to a maximum of 77 cfm. -
Page 7: Product Dimensions
Introduction Product Dimensions 10.62 in 270 mm 14.96 in 380 mm 19.29 in 490 mm Amhaze Whisper User Manual Rev. 8... -
Page 8: Setup
3. Setup AC Power The Amhaze Whisper has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Amhaze Whisper includes 4 rubber feet for floor mounting and comes with a threaded mounting hole, size M12, at the top of the hazer. This mounting hole is appropriate for use with a mounting clamp. You must supply the mounting clamps. -
Page 10: Operation
<DOWN> function Control Options Set the Amhaze Whisper starting address in the 001-512 DMX range. This enables control of up to 256 products in the 2-channel personality. Programming Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option. -
Page 11: Configuration (Settings)
2. Select how long the haze flow will last (10–255). Priming the Pump The Amhaze Whisper features an automatic shut-off function. When the fluid sensor detects no fluid in the hose, the pump automatically shuts off. Sometimes an air bubble can be caught in the hose by the fluid sensor, triggering the auto shut-off. -
Page 12: Maintenance
• FCQ (Fog Cleaner Quart) was specifically developed by CHAUVET to clean the Amhaze Whisper. Make sure to use FCQ regularly to increase the life of the hazer. • Test-run the Amhaze Whisper on a monthly basis to achieve the best performance. -
Page 13: Technical Specifications
Maximum External Temperature Cooling System 113 °F (45 °C) Convection I/O Connector Channel Range 3- or 5-pin XLR Ordering Product Name Item Code UPC Number Amhaze Whisper 0507126 781462216115 Amhaze Whisper (220 V) 05071292 781462216405 Amhaze Whisper User Manual Rev. 8... -
Page 14: Contact Us
For warranty terms and conditions and return information, please visit our website. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Amhaze Whisper User Manual Rev. 8...
