Summary of Contents for National Instruments NI PXIe-8103
Page 1
(217) 352-9330 | Click HERE Find the National Instruments PXIe-8103 at our website:...
Page 2
PXI Express NI PXIe-8103 User Manual NI PXIe-8103 User Manual February 2006 371679A-01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 4
Warranty The NI PXIe-8103 is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period.
Page 5
THE SUITABILITY OF NATIONAL INSTRUMENTS PRODUCTS WHENEVER NATIONAL INSTRUMENTS PRODUCTS ARE INCORPORATED IN A SYSTEM OR APPLICATION, INCLUDING, WITHOUT LIMITATION, THE APPROPRIATE DESIGN, PROCESS AND SAFETY LEVEL OF SUCH SYSTEM OR APPLICATION. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 6
These classes are known as Class A (for use in industrial-commercial locations only) or Class B (for use in residential or commercial locations). All National Instruments (NI) products are FCC Class A products. Depending on where it is operated, this Class A product could be subject to restrictions in the FCC rules. (In Canada, the Department of Communications (DOC), of Industry Canada, regulates wireless interference in much the same way.) Digital...
Description ......................1-2 Functional Overview ..................1-2 National Instruments Software ..................1-4 Chapter 2 Installation and Configuration Installing the NI PXIe-8103...................2-1 How to Remove the Controller from the PXI Express Chassis.......2-4 BIOS Setup ........................2-4 Entering BIOS Setup ..................2-4 Main Setup Menu ....................2-5 Advanced Setup Menu ..................2-6 PXI Setup Menu ....................2-8...
Page 8
Upgrade Information ..................... 4-4 PXI Express Configuration.................... 4-6 Chapter 5 Troubleshooting Appendix A Specifications Appendix B Technical Support and Professional Services Glossary Index NI PXIe-8103 User Manual viii ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
This manual contains detailed instructions for installing and configuring the National Instruments PXIe-8103 embedded computer kit. How to Use the Documentation Set Begin by reading the NI PXIe-8103 Installation Guide, a brief quick-start guide that describes how to install and get started with your controller. This manual, the...
Introduction This chapter provides overview information for PXI Express and the NI PXIe-8103 embedded controller. Benefits of PXI Express The PXI (PCI eXtensions for Instrumentation) industry standard, an open specification governed by the PXI Systems Alliance (PXISA), has quickly gained adoption and grown in prevalence in test, measurement, and control systems since its release in 1998.

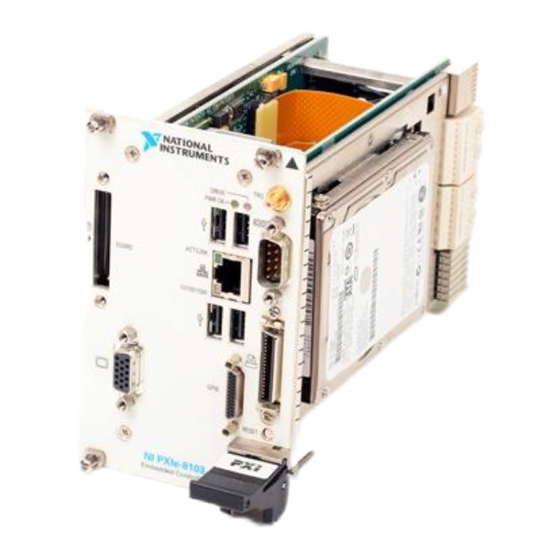

NI PXIe-8103 embedded computer. NI PXIe-8103 Functional Description The NI PXIe-8103 is a modular PC in a PXI Express 3U-size form factor. Figure 1-1 is a functional block diagram of the NI PXIe-8103. Following the diagram is a description of each logic block shown.
Page 13
PXI Trigger Connector Watchdog Figure 1-1. NI PXIe-8103 Block Diagram The NI PXIe-8103 consists of the following logic blocks on the CPU module and the I/O (daughter card) module. The CPU module has the following logic blocks: • Socket 479 CPU is the socket definition for the Intel Pentium M processor families.
Express/CompactPCI Express backplane. • The Super I/O block represents the other peripherals supplied by the NI PXIe-8103. The NI PXIe-8103 has one serial port, and an ECP/EPP parallel port. • The Gigabit Enet connects to either 10 Mbit, 100 Mbit, or 1,000 Mbit Ethernet interfaces.
Page 16
Linux OS. Instrument control in Linux has been improved by the NI-VISA driver for Linux and NI Modular Instruments are partially supported. For more information visit ni.com/linux NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
NI PXIe-8103 controller. Installing the NI PXIe-8103 This section contains general installation instructions for the NI PXIe-8103. Consult your PXI Express chassis user manual for specific instructions and warnings. Plug in your chassis before installing the NI PXIe-8103. The power cord grounds the chassis and protects it from electrical damage while you install the module.
Page 18
Figure 2-1. Removing Protective Screw Caps Make sure the injector/ejector handle is in its downward position. Align the NI PXIe-8103 with the card guides on the top and bottom of the system controller slot. Do not raise the injector/ejector handle as you insert the NI PXIe-8103.
Page 19
What if the NI PXIe-8103 does not boot? section of Chapter 5, Troubleshooting. Figure 2-2 shows an NI PXIe-8103 installed in the system controller slot of a National Instruments PXIe-1062 chassis. 1 PXIe-1062 Chassis 2 NI PXIe-8103 Controller 3 Injector/Ejector Rail Figure 2-2.
Chapter 2 Installation and Configuration How to Remove the Controller from the PXI Express Chassis The NI PXIe-8103 controller is designed for easy handling. To remove the unit from the PXI Express chassis, complete the following steps. Power off the chassis.
• Integrated Peripherals—Use this setting to bring up the Integrated Peripherals submenu. Refer to the Integrated Peripherals Submenu section for more information. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 23
Integrated Peripherals Submenu Use this submenu to apply nondefault configurations to the front panel peripherals of an NI PXIe-8103 controller. Normally, you do not need to modify these settings, as the factory default settings provide the most compatible and optimal configuration possible.
PXI Express/PCI Express devices connected to PIRQx. This settings affects OSes that do not use APIC routing. The default setting for all PIRQx options is IRQ10. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
System CMOS. The setup program remains active, allowing further changes. System CMOS The NI PXIe-8103 contains a backed-up memory used to store BIOS configuration information. Complete the following steps to clear the CMOS contents: Power off the chassis.
PXI Express Features PXI Express Trigger Connectivity The SMB connector on the NI PXIe-8103 front panel can connect to or from any PXI Express backplane trigger line. A trigger allocation process is needed to prevent two resources from connecting to the same trigger line, resulting in the trigger being double-driven and possibly damaging the hardware.
PXI specification at www.pxisa.org Upgrading RAM You can change the amount of installed RAM on the NI PXIe-8103 by upgrading the SO-DIMMs. To upgrade the RAM, remove the NI PXIe-8103 from the PXI Express chassis.
Note National Instruments has tested and verified that the DDR2 SO-DIMMs we sell work with the NI PXIe-8103. We recommend you purchase your DDR2 SO-DIMM modules from National Instruments. Other off-the-shelf DDR2 SO-DIMM modules are not guaranteed to work properly.
OS. When doing so, consider the following guidelines. Installing from a CD-ROM The NI PXIe-8103 supports the installation of Windows XP from a USB CD-ROM. However, many other operating systems do not support installation from a USB CD-ROM. For example, Windows 2000 aborts during the install process because it does not have drivers for the CD-ROM device.
ExpressCard modules. Installing an ExpressCard You can install an ExpressCard module while the NI PXIe-8103 is running. The NI PXIe-8103 will automatically detect the card. ExpressCards are generally marked with a symbol or a label to indicate which end to insert into the slot.
I/O Information Front Panel Connectors Table 3-1 lists various peripherals and their corresponding NI PXIe-8103 external connectors, bus interfaces, and functions. Table 3-1. NI PXIe-8103 Peripherals Overview External Peripheral Connector Description Video Intel Extreme Graphics (15-pin DSUB) controller Serial COM1...
Figure 3-1. NI PXIe-8103 Front Panel Layout and Dimensions Figure 3-2 shows the location and pinouts for the VGA connector on the NI PXIe-8103. Table 3-2 lists and describes the VGA connector signals. AMP manufactures a mating connector with part numbers 748364-1 (housing) and 748333-2 (pin contact).
Serial Clock COM1 Figure 3-3 shows the location and pinouts for the COM1 connector on the NI PXIe-8103. Table 3-3 lists and describes the COM1 connector signal. AMP manufactures a serial port mating connector, part number 745491-5. COM1 Figure 3-3. COM1 Connector Location and Pinout Table 3-3.
Ring Indicator Ethernet Figure 3-4 shows the location and pinouts for the Ethernet connector on the NI PXIe-8103. Table 3-4 lists and describes the Ethernet connector signals. AMP manufactures a mating connector, part number 554739-1. Ethernet Figure 3-4. Ethernet Connector Location and Pinout Table 3-4.
1000 Mbit/sec data rate is selected. Parallel Port Figure 3-5 shows the location and pinouts for the IEEE 1284 (parallel) connector on the NI PXIe-8103. Table 3-6 lists and describes the IEEE 1284 connector signals. Parallel port adapter cables are available from National Instruments, part number 777169-01.
Universal Serial Bus Figure 3-6 shows the location and pinouts for the Universal Serial Bus (USB) connector on the NI PXIe-8103. Each controller has 4 USB ports on the front panel. Table 3-7 lists and describes the USB connector signals.
The TRG connector is the software-controlled trigger connection for routing PXI triggers to or from the backplane trigger bus. Figure 3-7 shows the TRG connector location on the NI PXIe-8103. Table 3-8 lists and describes the trigger connector signals. Figure 3-7. TRG Connector Location and Pinout Table 3-8.
Chapter 3 I/O Information GPIB (IEEE 488.2) Figure 3-8 shows the location and pinouts for the GPIB connector on the NI PXIe-8103. Table 3-9 lists and describes the GPIB connector signals. ITT Canon manufactures a GPIB mating connector, part number MDSM-25SC-Z11-V51.
18–25 Logic Ground ExpressCard/34 Slot The NI PXIe-8103 controller is equipped with an ExpressCard/34 slot on the front panel, which provides I/O expansion and options for removable storage. Figure 3-9 shows the location and pinouts for the ExpressCard/34 slot on the NI PXIe-8103.
Page 45
Reserved by spec for future use SMBCLK SMBus Clock SMBDATA SMBus Data +1.5V Power +1.5V Power WAKE# PE Wake +3.3VAUX Power PERST# PE Reset NI PXIe-8103 User Manual 3-12 ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
PE Data Transmit – PETp0 PE Data Transmit + Ground Front Panel Features The NI PXIe-8103 has the following front-panel features: • A system reset pushbutton (press the button to generate a reset to the controller) • Two front panel LEDs that show PC status –...
Chapter 3 I/O Information Data Storage The NI PXIe-8103 has the following data storage features: • Internal Serial ATA hard drive – 2.5 in. notebook hard drive – Supports Native Command Queuing – Supports transfer rates up to 1.5 Gb/s •...
This chapter answers common configuration questions you may have when using a NI PXIe-8103 embedded controller. General Questions What do the LEDs on the NI PXIe-8103 front panel mean? Refer to the LED status descriptions in the Front Panel Features...
Note can be installed from a USB CD-ROM, but earlier versions of Windows cannot. The NI PXIe-8103 BIOS configures the USB devices so that they will work in a DOS environment. How do I configure the controller to boot from these devices? There are two methods.
How do I connect a standard 25-pin LPT cable to the NI PXIe-8103? The NI PXIe-8103 uses a type C LPT connector. Most parallel port devices use a type A connector. To use a device with a standard type A LPT connector, you need to use a type C-to-type A LPT adapter.
GPIB hardware after installing the driver. How do I install software from a CD? The compact size of the NI PXIe-8103 does not allow for an integrated CD-ROM drive. If you are using Windows XP, you have the following options: •...
Page 52
. For peripheral drivers, refer to KnowledgeBase 3H3COSD8 downloads/ ni.com My NI PXIe-8103 does not have an internal floppy drive. Is there a way to use an external drive? Yes. The NI PXIe-8103 controller supports and can boot from USB floppy drives.
Chapter 2, Installation and Configuration. Why doesn’t the NI PXIe-8103 work with the PXI-8220 or PXI-8221? The serialized IRQ line is not routed to the backplane on the PXIe-8103. This prevents PC cards using ISA interrupts from working with the PXIe-8103.
Page 54
This chapter answers common troubleshooting questions you may have when using the NI PXIe-8103 embedded computer. What if the NI PXIe-8103 does not boot? Several problems can cause a controller not to boot. Here are some things to look for and possible solutions.
Page 55
Select Save and Exit Setup. As an alternative method, complete the following steps: Power off the chassis. Remove the controller from the chassis. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 57
Specifications This appendix lists the electrical, mechanical, and environmental specifications of the NI PXIe-8103 embedded computer. Features NI PXIe-8103 Intel Pentium M 760 (2.0 GHz) On-die L2 cache 2048 kB Dual-Channel DDR2 RAM 512 MB Standard 2 GB Maximum Hard Drive...
Page 58
Pollution Degree ........2 Indoor use only. Caution Clean the NI PXIe-8103 with a soft nonmetallic brush. Make sure that the device is completely dry and free from contaminants before returning it to service. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 60
To obtain the DoC for this product, visit , search by model number or product line, and click the ni.com/certification appropriate link in the Certification column. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 61
Technical Support and Professional Services Visit the following sections of the National Instruments Web site at for technical support and professional services: ni.com • Support—Online technical support resources at ni.com/support include the following: – Self-Help Resources—For answers and solutions, visit the...
Page 62
Worldwide Offices section of to access the branch ni.com/niglobal office Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 64
DRAM Dynamic RAM (Random Access Memory)—Storage that the computer must refresh at frequent intervals. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 66
PXI backplane. A transfer can be either a read or a write. Megabytes of memory. MTBF Mean time between failure. MTTR Mean time to repair. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 67
Glossary NI-488 or NI-488.2 The National Instruments software for GPIB systems. NI-DAQ The National Instruments software for data acquisition instruments. NI-VISA The National Instruments implementation of the VISA standard—An interface-independent software that provides a unified programming interface for VXI, GPIB, and serial instruments.
Page 68
Universal Serial Bus. Volts. Video Graphics Array—The minimum video display standard for all PCs. Watts. NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 71
IDE SATA BIOS setup, 2-9 Linux support, 1-6 IEEE 488.2, 3-10 loading BIOS defaults, 2-10 images directory, 2-11 LPT cable, connecting to NI PXIe-8103, 4-3 installation See also configuration configuration in MAX (figure), 2-13 injector/ejector handle position (caution), main BIOS setup menu, 2-5...
Page 72
APIC routing, 2-8 upgrading RAM, 2-14, 4-4 PIRQx routing, 2-8 NI support and services, B-1 PXI trigger connector, 3-1 NI-DAQmx, 1-5 NI-VISA, 1-5 NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 73
A BIOS setup, 2-7 CMOS reset, 5-2 See also COM1 connector controller does not boot, 5-1 setting up the NI PXIe-8103 BIOS, 2-4 damaged module, 5-2 shock and vibration specifications, A-3 video display, 5-2 socket 479 1 CPU, 1-3...
Page 74
4-3 Web resources, B-1 Y-splitter cable figure, 4-3 using mouse and keyboard without, 4-3 using with PS/2 mouse and keyboard, 2-3 NI PXIe-8103 User Manual ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
