Schletter CompactDirect Mounting Instruction

CompactDirect
Mounting Instruction
Required tools
Screwdriver with bit and socket-wrench insert
Bit hex socket SW6
Bit TX T40
Socket wrench SW15, SW17
Combination wrench SW15
The Schletter-tool kit
includes tools required for
all standard systems.
Safety instructions
Planning, mounting and start-up of the solar plant must be performed by qualified personnel only. Poor quality execution can
result in damage to the plant and to the building and can present a risk to people.
Risk of falling! There is a risk of falling when working on the roof as well as when ascending and descending the building. Accident
prevention regulations must be observed and appropriate safety equipment must be used.
Risk of injury! Objects falling from the roof can cause injury to people. The danger area around the installation site must be sealed
off and people close to this area must be warned.
Risk of breakage! Never step on PV modules; these can be damaged under the weight.
Risk of electric shock! The mounting and maintenance of the PV modules must be carried out by qualified
personnel only. Please observe the all safety regulations issued by the manufacturer!
© Schletter GmbH Gewerbegebiet an der B15
•
Fax: +49 8072 9191-9200 E-mail: solar@schletter.eu
•
Your contact in the UK: Schletter UK Limited, Tel.: +44 1296 461 800, Fax: +44 1296 461 801, E-mail: info@schletter.co.uk
CompactDirect Mounting Instruction
Additional documentation required
System structural analysis
Calculation documentation with schematic
diagram, parts list and plant-related statics
Mounting instructions for the fastener
and / or the general mounting instruction.
Mounting and Project Planning
Alustraße 1 83527 Kirchdorf/Haag i. OB
• •
www.schletter.eu Updated 11/2012
• •

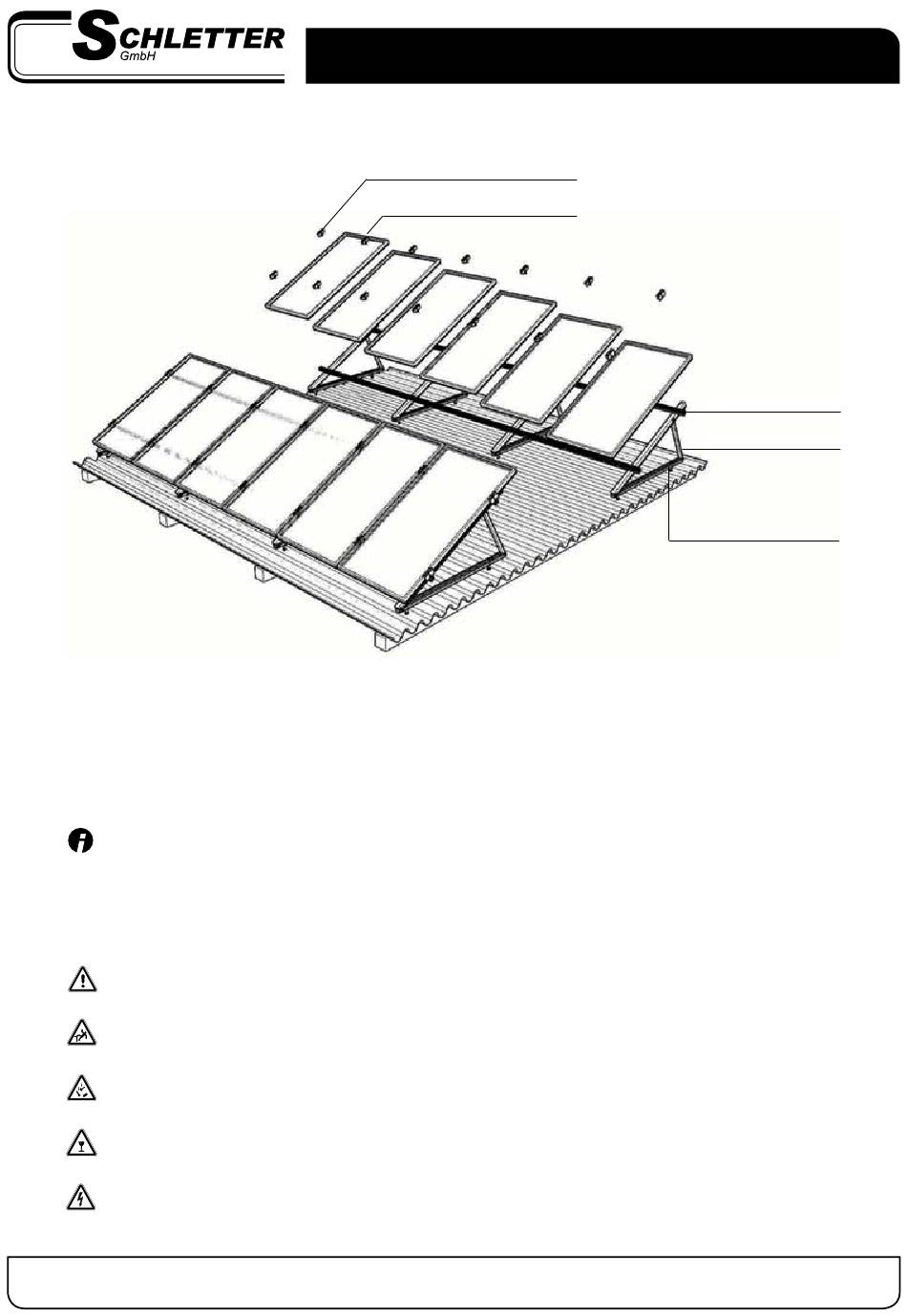

End clamp
Middle clamp
Tightening torque
Bolted connection M8 :
Bolted connection M10:
Bolted connection M12:
Germany Tel.: +49 8072 9191-200
• •
Subject to change without notice
•
EN
Module bearing profile
Support
Fastener (hanger bolt)
15 Nm
40 Nm
70 Nm
1
