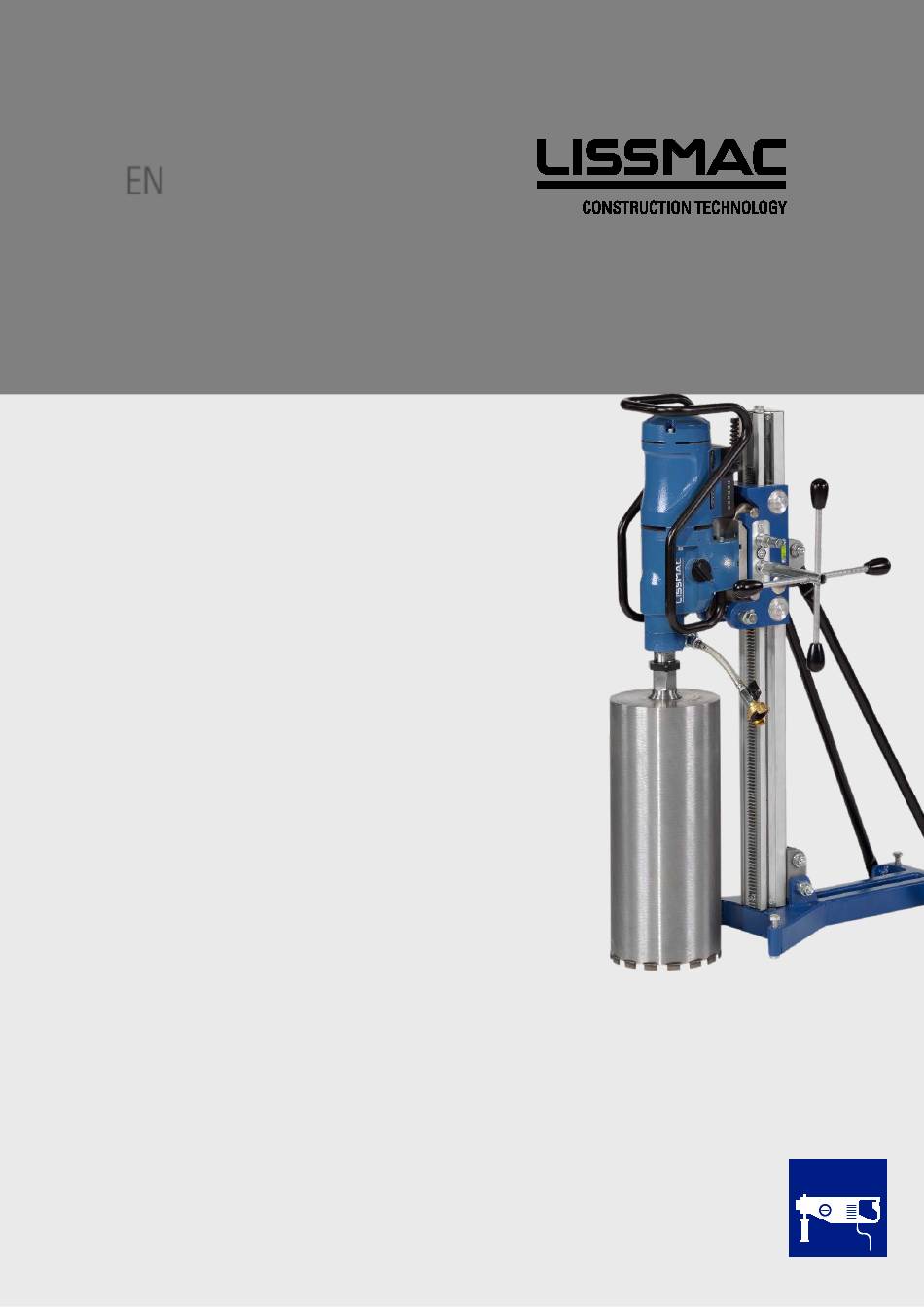

OPERATING MANUAL
DIAMOND CORE DRILLING MACHINES
CDM 25 W
CDM 25 WP
CDM 33 W
CDM 33 WP
LISSMAC Maschinenbau GmbH
Lanzstrasse 4
D-88410 Bad Wurzach
Telefon +49 (0) 7564 / 307 - 0
Telefax +49 (0) 7564 / 307 - 500
lissmac@lissmac.com
www.lissmac.com
1/30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDM 25 W and is the answer not in the manual?

Questions and answers

Summary of Contents for Lissmac CDM 25 W

  • Page 1 OPERATING MANUAL DIAMOND CORE DRILLING MACHINES CDM 25 W CDM 25 WP CDM 33 W CDM 33 WP LISSMAC Maschinenbau GmbH Lanzstrasse 4 D-88410 Bad Wurzach Telefon +49 (0) 7564 / 307 - 0 Telefax +49 (0) 7564 / 307 - 500 lissmac@lissmac.com...
  • Page 2 2/30...
  • Page 3 Imprint The operating manual is valid for: Diamond Core Drilling Machines  CDM 25 W  CDM 25 WP  CDM 33 W  CDM 33 WP Company headquarters: LISSMAC Maschinenbau GmbH Lanzstraße 4 D - 88410 Bad Wurzach Tel: +49 (0) 7564 / 307 – 0 Fax: +49 (0) 7564 / 307 –...
  • Page 4 BASIC SAFETY INSTRUCTIONS Warning notices and symbols in this operating manual Danger! Indicates that non-observance may cause heavy or even deadly injuries to the operator. Caution! Indicates that non-observance may cause physical injuries. Note Indicates that non-observance may cause damages to the device or to other material or physical assets.
  • Page 5: Table Of Contents

    OPERATING MANUAL Preface This operation manual has been established to make it easier to become familiar with the machine and to utilise its intended application options. This operation manual contains important information on how to operate the machine in a safe, appropriate and economic manner.
  • Page 6 Notes: 6/30...
  • Page 7: Description Of Performance

    DESCRIPTION OF PERFORMANCE With their compact, robust design, the CDM 25 W and CDM 33 W provide reliable, user-friendly, professional wet drilling every day on the construction site. The careful design of the safety clip secures the core drill in the harsh construction site environment as well as acting as a functional handle for daily transport and simple mounting on drilling stands.
  • Page 8 1.1.4 The LISSMAC Diamond Core Dill Machine CDM 25W/CDM 33W is a wet core drill machine and follows the machine classification of a core drill rig guided core drill machine. This core drill machine works in conjunction with a diamond impregnated core drill bit and water to drill circular holes into stone, concrete and composite materials.
  • Page 9 1.2.14 Never deactivate the drill by pulling out the power plug as it will automatically activate when plugged back in. Turn the drill off before unplugging. This machine is intended for use by an operator experienced in the field of construction. Use of this machine other than as described in this manual is contrary to the intended use.
  • Page 10 1.3.8. Dust extraction equipment Equipment meant to have a dust extraction accessory installed, must be installed. Make sure it is installed as explained in the manual. 1.3.9. Extension cables Only heavy duty outdoor extension cables should be used. Check for exposed wiring before pluggin in the extension cable.
  • Page 11 11/30...
  • Page 12: Description Of Machine

    DESCRIPTION OF MACHINE 2.1. Name of machine parts Pos. 1 On/off switch Pos. 9 Air let Pos. 3 Carbon brush Pos. 10 Air outlet Pos. 4 Motor mounting plate Pos. 11 Chassis handle Pos. 5 Gear switch Pos. 12 PRCD Pos.
  • Page 13 2.3. Technical data CDM 25 W CDM 33 W 230 V 110V 230 V 110V Rated power: 2500 W 3300 W Output power: 1800 W 2550 W Current consumption 12 A 16 A Kind of current Single phase Single phase...
  • Page 14: Commissioning

    COMMISSIONING 3.1. Connections and operating materials Connection of electricity A reliable power source with an operating voltage (230V) and corresponding fuses as shown on the model plate must be available. The automatic phase inverter automatically regulates the direction of rotation. Never operate the machine without the equipped portable residual current device (PRCD).
  • Page 15 Tools must be protected against humidity during storage. The attached segments must be protected from damage. Note In the LISSMAC sales booklet, the prices for the tools are determined. This sales booklet can be obtained from the manufacturer at any time. 15/30...
  • Page 16: Transport

    TRANSPORT Note During transport the core drill motor must be disconnected from the power mains.  Disconnect the power supply cable of the core drill motor from the power mains.  Remove the tool from the core drill motor.  Remove the core drill motor from the core drill stand. OPERATION Caution! The core drill motor must be cooled with water for drilling.
  • Page 17: Tools

    Depending on the application purpose and area, tools are different. To have the best results, the parameters must match. With this diagram, the optimal cutting performance can be determined. Note In the LISSMAC sales booklet, the prices for the tools are determined. This sales booklet can be obtained from the manufacturer at any time. 17/30...
  • Page 18: Recycling

    The guarantee period for this product period is 12 months from the date of purchase. During this period LISSMAC Maschinenbau GmbH at its sole discretion will service or replace defects due to faulty materials or workmanship, free of charge. Parts worn from normal wear and tear, or damaged from abuse are not covered by this guarantee.
  • Page 19: Parts List

    PARTS LIST Pos. Art.-No. Description Specification Pcs. 83.3 211266 ELLBOW FITTING SET (INCL. 83,83.1,83.2,84) 230V 83.3 211267 ELLBOW FITTING SET (INCL. 83,83.1,83.2,84) 110V 211164 ELLBOW FITTING 230V NPTAB38-NPT3/8" 211263 ELLBOW FITTING 110V NPTAB38-NPT3 83,1 211165 SEALING RING 230V NPTW38 83,1 211264 SEALING RING 110V NPTW12...
  • Page 20 Pos. Art.-No. Description Specification Pcs. 211097 FEED WORM 211098 BALL BEARING 6201CM-12x32x10 211099 LOCK KEY A-4x4x10-DIN6885 211100 GEAR WHEEL 211101 PINION SHAFT 211102 NEEDLE BEARING HK1412- 211103 BALL BEARING 6302 CM-15-42-13 211104 GEAR CHANGE SHAFT 211009 BALL Ø4 211105 LOCK KEY A-6x6x45-DIN6885 211106 GEAR WHEEL...
  • Page 21 Pos. Art.-No. Description Specification Pcs. 211272 DRILLING SPINDLE CDM 25WP 211182 ARMATURE INCL. POS. 54&65 ASSEMBLED 211273 ARMATURE INCL. POS. 54&65 ASSEMBLED 700400 ANTI-FRICTION RING 205944 SEAL ¼“ 211726 DRIVE CDM 25 230V CPL 211816 DRIVE CDM 33 230V CPL 211817 DRIVE CDM 25 110V CPL 211818...
  • Page 22 Pos. Art.-Nr. Description Specification PCS. 211731 STATOR CDM 25 230V CPL 211733 STATOR CDM 33 230V CPL 211732 STATOR CDM 25 110V CPL 211734 STATOR CDM 33 110V CPL 211137 HEX. SOC. HEAD SCREW M4x85 56,1 211053 LOCK RING 56,3 211089 WASHER M4 (1x4.2x10)
  • Page 23 Pos. Art.-Nr. Description Specification PCS. 211741 CURRENT SUPPLY CDM 25/33 230V CPL 211819 CURRENT SUPPLY CDM 25/33 110V CPL 211162 HEX. SOC. HEAD SCREW M4x0.75x40mm 211164 ELLBOW FITTING 230V NPTAB38-NPT3/8" 211263 ELLBOW FITTING 110V NPTAB38-NPT3 83,1 211165 SEALING RING 230V NPTW38 83,1 211264...
  • Page 24 Pos. Art.-Nr. Description Specification PCS. 280532 SPANNER WRENCH 41mm 280139 SPANNER WRENCH 32mm To prevent incorrect deliveries, when ordering spare parts, indicate the complete model Note designation, year of manufacture and the machine number! Technical changes may be made! We make it explicitly clear that parts not supplied by us are also not tested and released by us. The installation and use of such products can therefore, in certain conditions, modify your equipment negatively and thus affect safety.
