AVIRE DCP WAVE Installation Manual

Digital communication platform with integrated digital audio unit
Hide thumbs Also See for DCP WAVE:

Advertisement

Quick Links

Download this manual

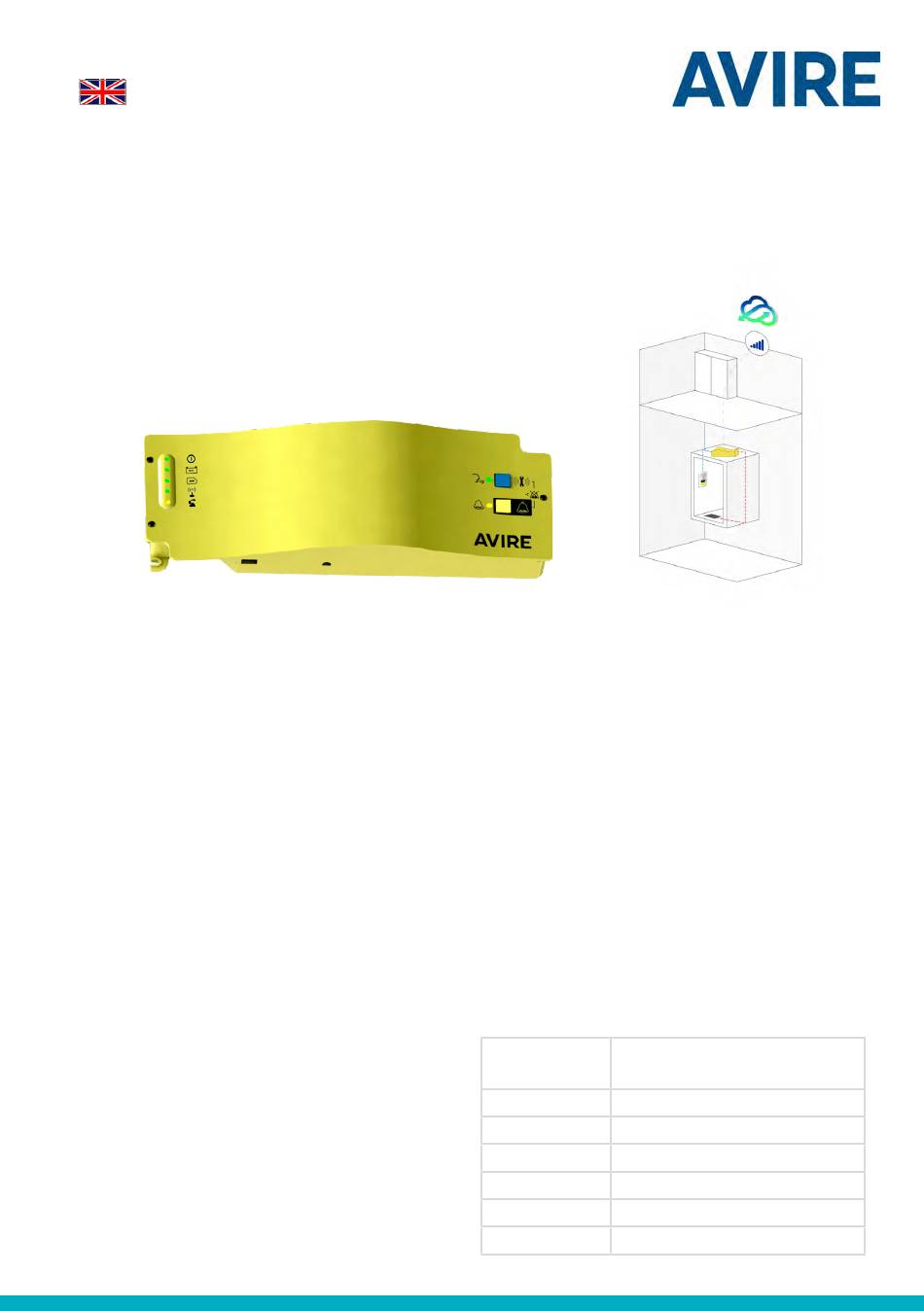

DCP WAVE
Digital Communication Platform with integrated Digital Audio Unit
Installation Guide
Ref No: MU-89112AV101V01 GB
Product Part Number:
4G: AC-4CT18-100-0-4L-000
2G: AC-2CT18-100-0-2L-000

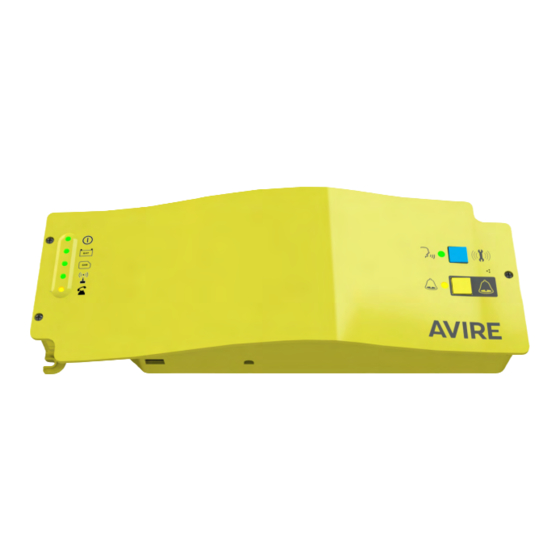

The DCP WAVE combines the Digital Communication Platform (DCP) with the Top-of-
Car Digital Audio Unit (TOC DAU) into one device and provides 2-way communication
from inside the car to the top of car. The unit is mounted on the top of lift car and it
does not require connection to the machine room.
You have the possibility to use a microphone in the cabin and to control external 12V
or 24V pictograms. It also allows audio communication with the machine room through
the "Intercom" function.
Note: Before installation pease ensure there is good signal coverage using the inbuilt
signal strength scanner.
IN THE BOX
+
DCP Wave
+
Antenna
+
P-5 H-2V connector (Phone
Connector) (x1)
+
P-10 H-2V connector (Power
Connector) (x1)
+
P-3.5 H-6V connector (Input
connector) (x1) Ext. Siren output cable
wire loom (1m with 3 outputs)
+
Grey clamp (x2)
+
Screws (x4)
+
Box fixing Screws (x2)
+
Installation Guide
DCP WAVE
Typical System Architecture
NOT INCLUDED
+
Screwdriver
+
SIM Card (Avire SIM can be purchased
through sales)
SPECIFICATION: 2G & 4G VERSIONS
Input
4G: 100 – 240 VAC mains power
2G: 220 – 240 VAC mains power
Consumption
max. 10 VA
Internal Battery
12V, 600 mAh, 9hr
Connections
RS232 or RS422/485; CANbus, LPBus
Operating Temp
-10ºC to +65ºC
Dimensions
320x116x77mm
Network
2G or 4G available
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DCP WAVE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVIRE DCP WAVE

Summary of Contents for AVIRE DCP WAVE

  • Page 1 Typical System Architecture DCP WAVE The DCP WAVE combines the Digital Communication Platform (DCP) with the Top-of- Car Digital Audio Unit (TOC DAU) into one device and provides 2-way communication from inside the car to the top of car. The unit is mounted on the top of lift car and it does not require connection to the machine room.
  • Page 2 15 LED switch Setting up the device - DCP Avire SIM cards come activated and ready to be installed. If a non-Avire SIM card is used, please make sure that the SIM card is activated and unlocked; also ensure that the SIM is compatible with 2G/4G, depending on the DCP WAVE purchased.
  • Page 3 Device is in standby Note: If a non-Avire SIM is used: • APN settings must be set prior to configuring it on the Avire Hub; please refer to “Setting Parameters on non-Avire SIM cards”. • If the SIM LED is flashing red, please see “SIM Card unlocking”.
  • Page 4 Then hang up handset SIM Card Unlocking (Non-Avire SIM) Important Note: An Avire SIM card does not have a SIM Pin code; if the SIM LED is flashing red, please make sure that the SIM card has been inserted correctly. The SIM PIN code for other network providers may vary, and it can usually be found on the outer plastic case of the SIM card.
  • Page 5 For non-Avire SIM cards which have a PIN code: Option 1 Disable the blocking PIN code using a conventional mobile phone. Plug the SIM into a different mobile device and delete SIM PIN code in the device settings. Option 2 You can program the PIN code of the SIM card into the DCP using an analogue phone plugged into connector (7).
  • Page 6 SETTING PARAMETERS ON NON AVIRE SIMS OPTION 1 Super settings allow quick and easy configuration of APN settings, depending on the country and network provider. Configure settings for the DCP based on the tables below. Example: Digit 1 Digit 2...
  • Page 7 Pin1234, P060 wap.vodafone.co.uk ; wap ; wap, P063 1 If either APN username and/or APN password are (blank) (DeutscheTelekom example) and the DCP is configured to be used with the Avire Hub, then the text message will be: Pin1234, P060 (blank), P063 1...
  • Page 8 You will need to retrieve the CCID number when the DCP installation is set up on the Avire Hub online platform. Please ensure that the person configuring the DCP on the Avire Hub has both the CCID and detail relating to location of the DCP to ensure proper setup.

  • Page 9: Advanced Configurations

    Default OFF, OFF – DAU always in shaft 1 as part of the DCP. Shaft (car) number (Function not necessary for DCP WAVE, leave as default) Not used Not used Activates the CANBus End of Line (EOL) for the CAN connector.
  • Page 10 Programming the DAU The DAU is configured via the DCP. Please ensure the DCP is installed and configured correctly first. The DCP can be configured remotely via the Avire Hub or via SMS. The Avire Hub All settings can be configured remotely via the Avire Hub The link to the Avire Hub is avirehub.avire-global.com Please contact your local sales office...
  • Page 11 To send parameter information: Pin1234, P1xxy…y , (send) xx= Parameter, y…y = Desired Value To read parameter information: Pin1234, P1xx? , (send) ? = asks to read parameter from device Example: To find out values set for the parameters 12, 14 and 15 for cabin 1 Send: To set parameters 14 = 0 and 15 = 1 for cabin 2 Send:...
  • Page 12 Additional Information for Programming the DAU The table below indicates all the parameters which can be set on the DAU (SMS Commands): Description Default Value Direct the first alarm call to DCP telephone (0-No, PC07 1-Yes) PC08 Alarm call bypass filter time (0-10s) PC09 Reset to Factory Default PC10...
  • Page 13 Low Power Bus (LPBus) allows quicker connection to devices that operate on a lower power level. The LPBus can connect to Avire external audio units and other LPBus enabled devices. Refer to product specific device installation guides for further details.

  • Page 14: Connector Details

    LED’s (default 12V). Connector Details Label Connector Description Antenna External antenna – Only use antennas authorised by Avire, otherwise the device might not work. SIM card Insert Avire or Non-Avire SIM card here Battery Internal battery* Prog. DCP...
  • Page 15 Ext. LED External pictograms connector LED selector Selector for 12V or 24V external LEDs used (defualt 12V) Prog. DAU Required for debugging (only for Avire Technical support) DAU configuration See DAU configurations Trace DAU Local programming (only for Avire Technical support) *Must be connected, the battery will charge automatically when connected to mains power supply.
  • Page 16 RS-232 or 422/485 Serial Connector Connector 6 is a standard serial communication port that allows the connection of computers, controls or any other device that needs remote communication through a reliable wireless data channel. The connectivity provided by the port is in real time and acts as a point to point transmitter.
  • Page 17 *If the last alarm call has not been completed or the Digital Communication Platform is not available for voice call, the two indicators light up alternately until the problem is fixed and the device conducts a proper test call. Inbuilt Signal Scanner To use the inbuilt signal scanner, switch dipswitch on DCP side of the device SW1:1 to ON.
  • Page 18 The below tables provides an overview for what each LED colour means: RUN LED FLASHING Green Amber Green Amber Proper Proper Restarting Operation (AC) CRITICAL SYSTEM ERROR Operation System (BAT) BATTERY FLASHING Green Amber Orange Charging DAU battery failure Error Important Note: DCP shows battery status of DCP or battery failure of any attached DAU units as per EN81-28:2018.
  • Page 19 Please contact your local sales office for access to the Avire Hub. The link to the Avire Hub is https://avirehub.avire-global.com To view installation tutorial videos please go to the “Help” section of the Avire Hub. Click on “Installations” in the menu on the side and then on “Buildings”.
  • Page 20 In the new page, you should be able to see Groups and Elevators. Click on “Add Gateway” under “Gateway” tab and select “DCP 4G”. A pop up window will appear where you can enter the SIM information (Note: Avire SIMs are (+31), but this doesn’t affect costs). Enter all required information and then click “Apply”.
  • Page 21 “Connecting” shown in green. Once the DCP is connected to the Avire Hub parameters will appear. This means your DCP is ready to be connected to emergency phones and other products within our Ecosystem.

  • Page 22: Installation

    Do not use the device in potentially hazardous areas or where there is risk of explosion. The DCP Wave emits low levels of radio frequency when in operation. BATTERY The DCP + DAU includes a NiCd 12V/600mAh battery that allows continuous operation in the event of a mains power failure.
  • Page 23 Fig 7 Avire UK +44 (0) 1628 540100 sales.uk@avire-global.com www.avire-global.com...
