alpro EB1001 Manual

Read all instructions before starting installation

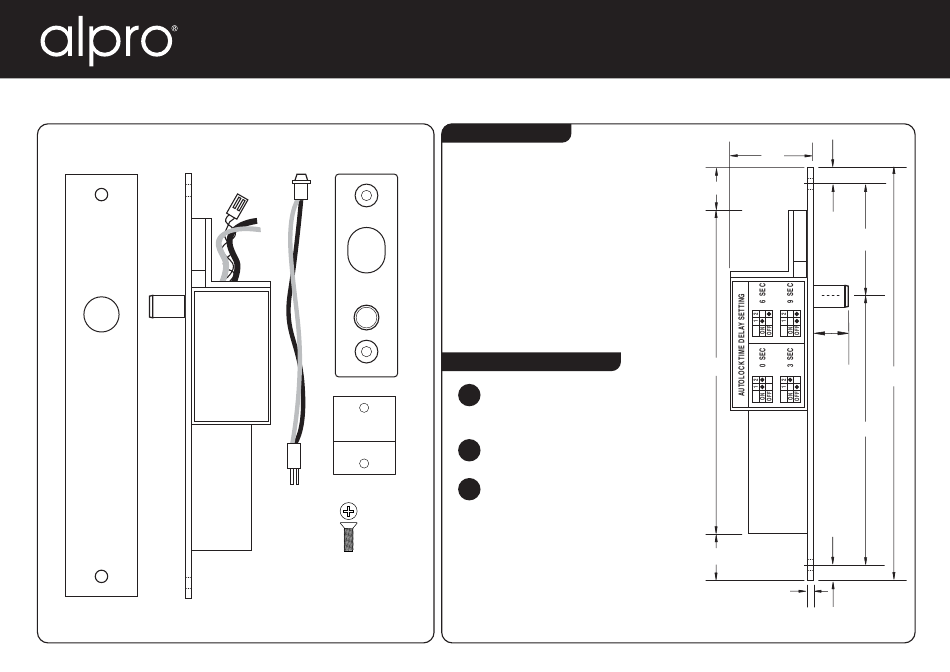

PACK CONTENTS
Technical Information
Power to Lock/Fail open.
Stainless steel bolt - diameter 15mm
Voltage required - 12vDC
Activating current - 1.0A
Holding current
Fully protected against transients and
reverse polarity
The Autolock Time Delay can be set for 0,
3, 6 or 9 seconds.
Monitoring - Door position switch (DSS)
Bolt Face Plate 203 x 34 x 3mm
Strike Plate 98 x 34 x 3mm
General Installation Instructions
Ensure you have the following:-
1
- Strike plate
- Electric bolt
All rebate strips and/or frame stops
2
should be fitted before starting.
x4 A 2 amp Power Supply should be
3
provided to ensure there is a Full 1
amp for the bolt. This should allow
for a basic Access System and a
back up battery to be connected
to the same source.
x8
WARNING - THE CONNECTION OF
AN INCORRECT VOLTAGE MAY
RESULT IN DAMAGE NOT COVERED
BY THE PRODUCT WARRANTY.
Electric Bolt
- throw 15mm
- 250 mA
- Bolt position indicator
EB1001
40
9.5
14
57.5
15
172
203
126.5
17
9.5
3
