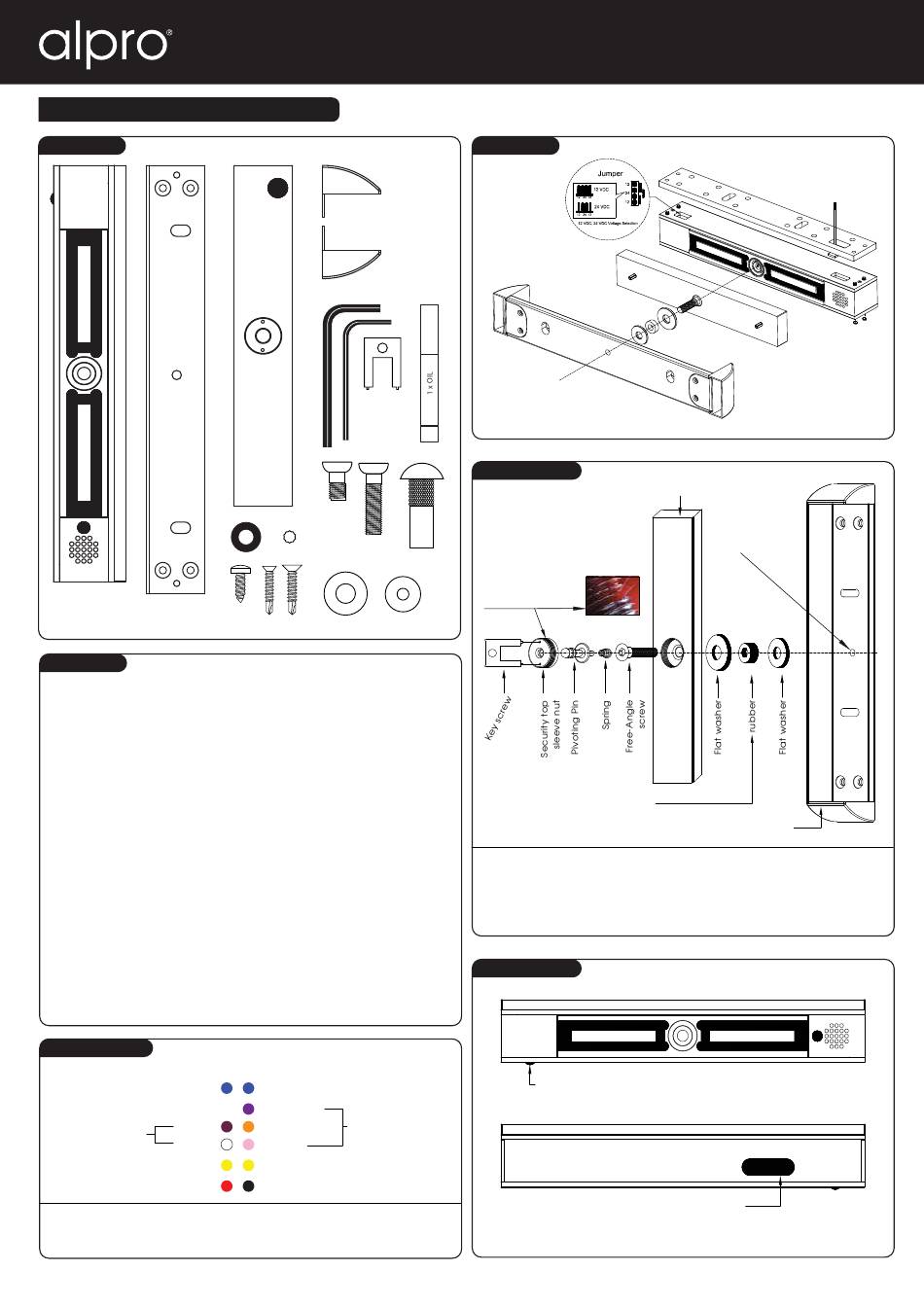

Read all instructions before starting installation
Pack Contents
Introduction
The AL2400-LP series are SURFACE mount mounting. The AL2400-LP model
uses a miniature LED and a large strip LED for long distance door
monitoring and smarter look (see LED feature p3).
The AL2400-LP series needs DC and stabilised power. The voltage
(measured at the lock) must be correct for the magnet to retain the
armature plate with its highest holding force capacity. When an external
pressure is applied, the combined technology of magnetic force and
swivel pin held inside the magnet hole by six metal marbles will ensure a
holding force of > 15 000 N (~ 1 500 kgf). Cutting the power to the lock will
remove the magnetic force and the marbles release themselves from pin
head to unlock the door. The Vortex
reed contact is integrated for a complete locking monitoring. This
monitoring only works if the armature plate is fitted flexibly and if the
power supply is correct at the lock input. Another reed contact provides
the door status. The exit button (or keypad, prox reader...) must be wired
on 12VDC (or 24VDC), not on the input wiring of power supply.
Also, this Vortex lock is equipped with a contact able to detect any
pressure on the door locked. This contact could be connected to an
alarm system or local alarm to warn BEFORE the access is opened without
authorisation. A built-in buzzer will sound simultaneously.
The PSU output must not be connected to the earth but isolated to avoid
any kind of electric sparks, therefore damaging the lock and its surfaces.
Wiring & Power Input
We recommend using a 2 amp PSU (power supply unit) per lock.
NO - DSS (BLUE)
(BROWN)
Buzzer Enabled - Close
Buzzer Disabled - Open
(WHITE)
NO-LSS (YELLOW)
12/24 VDC
+(RED)
12VDC/0.36A, 24VDC/0.18A
To prevent irreversible damage to the unit, ensure that wiring is
connected correctly before supplying power to the mechanical
electro magnet.
x1
x1
x1
x1
x4
x2
x1
x1
x1
x2
x12
x4
®
AL2400-LP works in 12 or 24VDC. A
30 VDC max
NO - DSS (BLUE)
0.3 A max, 10 W max
NO (PURPLE)
EW, 50VDC,
COM (ORANGE)
0.3A max
NC (PINK)
30 VDC max
NO-LSS (YELLOW)
0.3 A max, 10 W max
- (BLACK)
Vortex Door Magnet
Assembly
Swivel Pin Assembly
Applied drop-wise
of provided thread-
lockers glue to the
thread of the
security sleeve nut
to prevent loosening
x1
NOTE: Make sure to have the
rubber washer mount for absorbing
shock and obtaining the required
strength.
To assure a solid locking from the magnet and its armature plate,
you need to mount the latter with FLEXIBILITY with help from the
rubber washer supplied. A over tighten central screw or not enough
power supply are the two main reasons why a magnet will not work
with efficiency.
Light Feature
AL2400-LP model LED light
AL2400-LP model LED light model (Light Panel)
AL2400-LP
Armature plate
Tapped hole
Anti-Tamper-Bracket
