Step 6

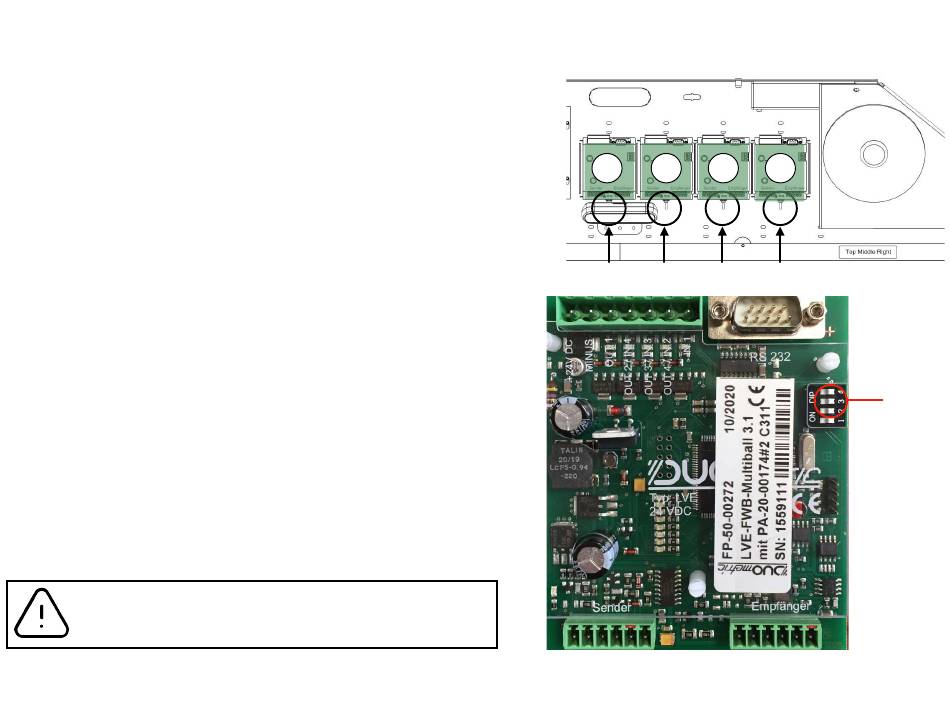

Setup Controller (1, 2, 3, and 4)
1. Power off Controller 1, 2, 3 and 4 by the switches.
2. Switch up the DIP 3 on Controller 1.
3. Power on the Controller 1.
4. Switch down the DIP 3 on the Controller 1 and wait
until the „OUT 4 / IN 2" green LED comes up.
(if this light never went off, please wait 5 seconds)
5. Test the sensor by touching the wall:
•
"OUT 1" green LED blinks as you interfere the light bars.
•
Center LED blink in a steady interval to show that the unit is
alive and working.
6. Power off Controller 1 and repeat the same steps with Controller
2-4, starting from step 1 - 6 and move on to step 7.
7. Power on Controller 1 - 4.
•
Don't change any of the DIP in the MB sensors except DIP 3
•
During the sensors testing: LEDs in the center show the signal's strength in
real time and these might flicker with slight signal changes, which is FINE
1 2 3
off/on off/on off/on
DIP 3
4
off/on
DIP 3
