Memphis Shades 2321-0020 Mounting Instructions And Parts List

SPORTSHIELD MOUNTING INSTRUCTIONS AND PARTS LIST
TOOLS REQUIRED: 3/16" Allen wrench (provided)
1. Install the mounting plates onto the windshield using the pre-assembled bolts on the mounting plates. The
Santoprene grommets should be inserted through the holes in the windshield so that the flat round part of
the grommet lays flat on both sides of the windshield. On each plate, get both tabs started before you
tighten them. (see Figure 1.1 & 1.2)
Note: Tabs point in towards each other.
If the adjustable clamps are installed backwards, it may result in serious gas tank
damage. Always check for proper gas tank clearance before tightening hardware.
2. Loosely install the four fork clamps on the forks, approximately 1 3/4" inches apart. (see Figure 2)
3. Loosen the four mounting bolts that are to hold the mounting plates to the fork clamps, and slide the
mounting plates onto the fork clamps. (see Figure 3)
4. Adjust the height, angle, and alignment of the shield. Carefully check gas tank clearance, and tighten all
mounting bolts.
WARNING: This is a quick change kit. ALWAYS tighten down all mounting bolts after removing or
installing the windshield.

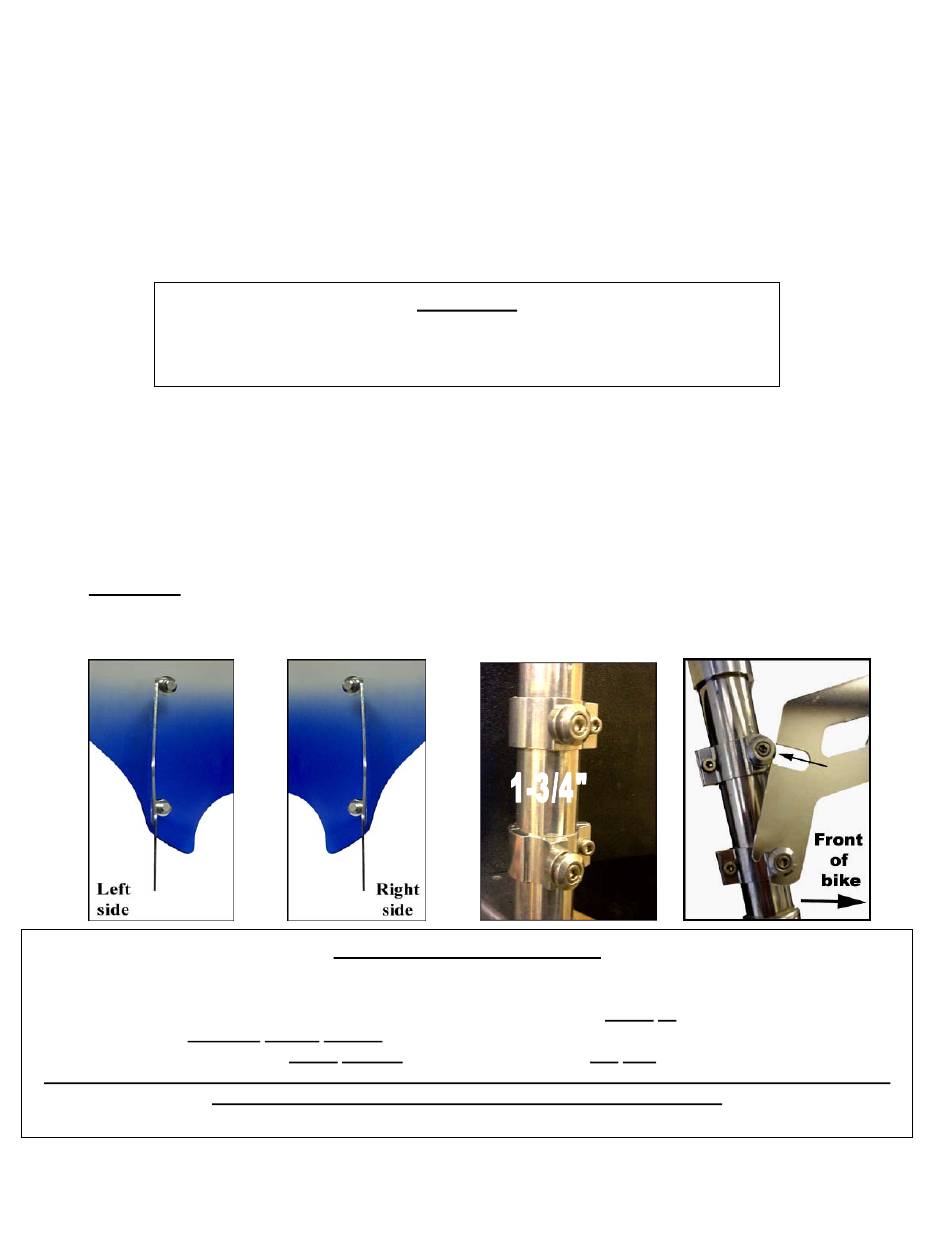

Fig. 1.1 Left side plate
To clean your windshield, use only warm water and a mild non-abrasive, dishwashing liquid. Use a soft cloth,
such as a T-shirt or flannel cloth. To protect your windshield, please use Novus #2 to remove minor scratches,
or use a polish like Memphis Shades Shinola which is specially designed for plastic windshields; glass cleansing
agents will cause severe damage to your windshield and will void your warranty.
Never use any glass products, petroleum based chemicals, or cleaning agents with ammonia, bleach or any harsh
VICTORY VEGAS 2004
Fig. 1.2 Right side plate

Care and Cleaning Instructions

chemicals. This includes Rain-X, brake fluid, acetone, and gasoline.
2321-0020
WARNING
Fig. 2 fork clamps Fig. 3 shows mounting of plates
MEM8903 '11-14-07'
