Installing the sensor(s)

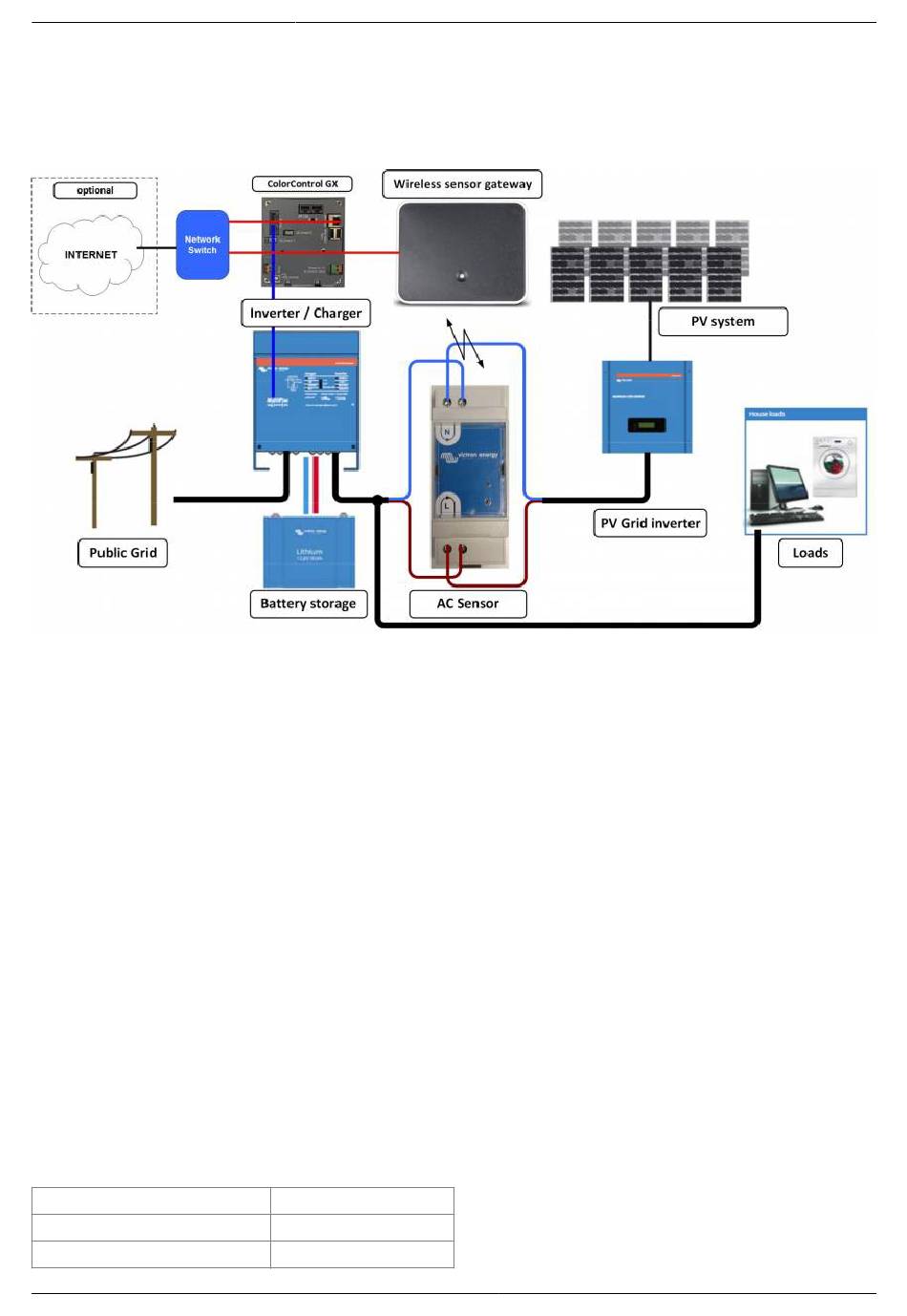

For each phase, connect the AC sensor according to the schematic below. Neutral on top side. Line on
bottom side. Make sure the direction of the current is correct.

Gateway and sensor pairing

After powering the sensor for the first time, it needs to be paired with the gateway. The led on the
sensor will be blinking red, to indicate that it is not yet paired to a gateway.
If it is not blinking red, but both the green and the red LED are on, it needs to be unpaired first: press
and hold the little reset button in the sensor. As soon as you press the button the LED will turn green.
Hold the button until the LED starts blinking red.
To let the gateway search for and pair with free sensors, press the button on the gateway for 5
seconds. The led on the gateway will start blinking red. First slow then both leds (gateway and sensor)
will start blinking red fast. If sensor is found the led will shortly blink orange.
The discovery will take anywhere between 30 seconds and 12 minutes. The 12 minutes can be
because of a software update.
When the update process is completed then the sensor LED will be off, and the gateway LED will be
green with short intermittent blips of red.

Gateway LED

LED
Blinking red
Green with short blips of red Working OK
https://www.victronenergy.com/live/
ccgx:ccgx_wireless_ac_sensor https://www.victronenergy.com/live/ccgx:ccgx_wireless_ac_sensor
Meaning
Searching for sensors
