Smart Battery Sense Manual
1. Introduction
Smart Battery Sense is a wireless battery voltage-and-temperature sensor for Victron MPPT Solar
Chargers.
The Solar Charger uses these measurements to optimize its charge parameters. The accuracy of the
data it transmits will improve battery charging efficiency, and prolong battery life.
The connection between Smart Battery Sense and one or more Solar Charger(s) is wireless: It uses
VE.Smart Network - a wireless technology based on Bluetooth Smart.

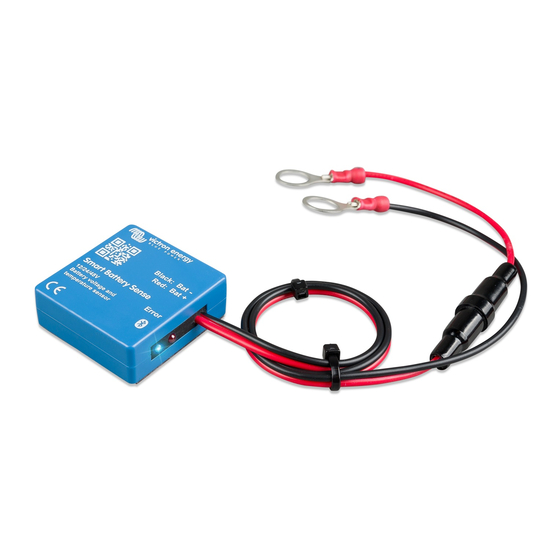

Simple to install & configure, Smart Battery Sense comes with an inline fuse and pre-crimped eyelets.
Revealing the self-adhesive tape on the back allows you to mount it directly on the battery.
Product page on our main website:
https://www.victronenergy.com/accessories/smart-battery-sense
When can I use Smart Battery Sense ...and when should I
avoid using it?
Check the VE.Smart Networking compatible products list
Smart Battery Sense is not needed, or allowed, in systems which are already controlled by a Color
Control GX or Venus GX, see
Smart Battery Sense is not needed for installations which already have a BMV-712 (battery monitor)
with a temperature sensor accessory.
For installations using a BMV-702 together with its optional temperature sensor accessory - for
wireless connectivity consider adding a
Sense.
2. Installation
Connect the two eyelets to your battery terminals and attach the unit directly onto the battery-body
using its self-adhesive strip.
For banks of batteries Smart Battery Sense may be connected to any one of the individual batteries.
If the bat+ and bat- cables are not long enough they may be extended - only make sure you use the
same, or a thicker, gauge of cable.
Victron Energy - https://www.victronenergy.com/live/
1/4
FAQ Q6 for more info.
VE.Direct Bluetooth Smart dongle
for compatible Solar Chargers.
instead of a Smart Battery
