INSTRUCTION MANUAL
ADM3201
1-800-547-5740 • Fax: (503) 643-6322
www.ueitest.com • email: info@ueitest.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADM33201 and is the answer not in the manual?

Questions and answers

Summary of Contents for UEi ADM33201

  • Page 1 INSTRUCTION MANUAL ADM3201 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • email: info@ueitest.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ......... .1 Safety .
  • Page 3: Introduction

    Introduction The ADM3201 is a handheld battery operated professional automotive multimeter designed to provide trouble shooting solutions in today’s sophisticated automotive electronic systems. The ADM3201 measures AC/DC Voltage, AC/DC Current, Resistance, Diode, and Continuity, as well as testing RPM, Dwell, Temperature, and Duty Cycle. Features include •...
  • Page 4: Safety

    • Use a current clamp adapter when measuring current that may exceed 10 amps. See the accessories in UEi’s full-line ca t a l o g • Do not open the meter to replace batteries or fuses while the probes are connected.
  • Page 5 • Higher voltages and currents require greater awareness of physical safety hazards - Before connecting the test leads; turn off power to the circuit under test; set the meter to the desired function and range; connect the test leads to the meter first, then to the circuit under test.
  • Page 6: Controls

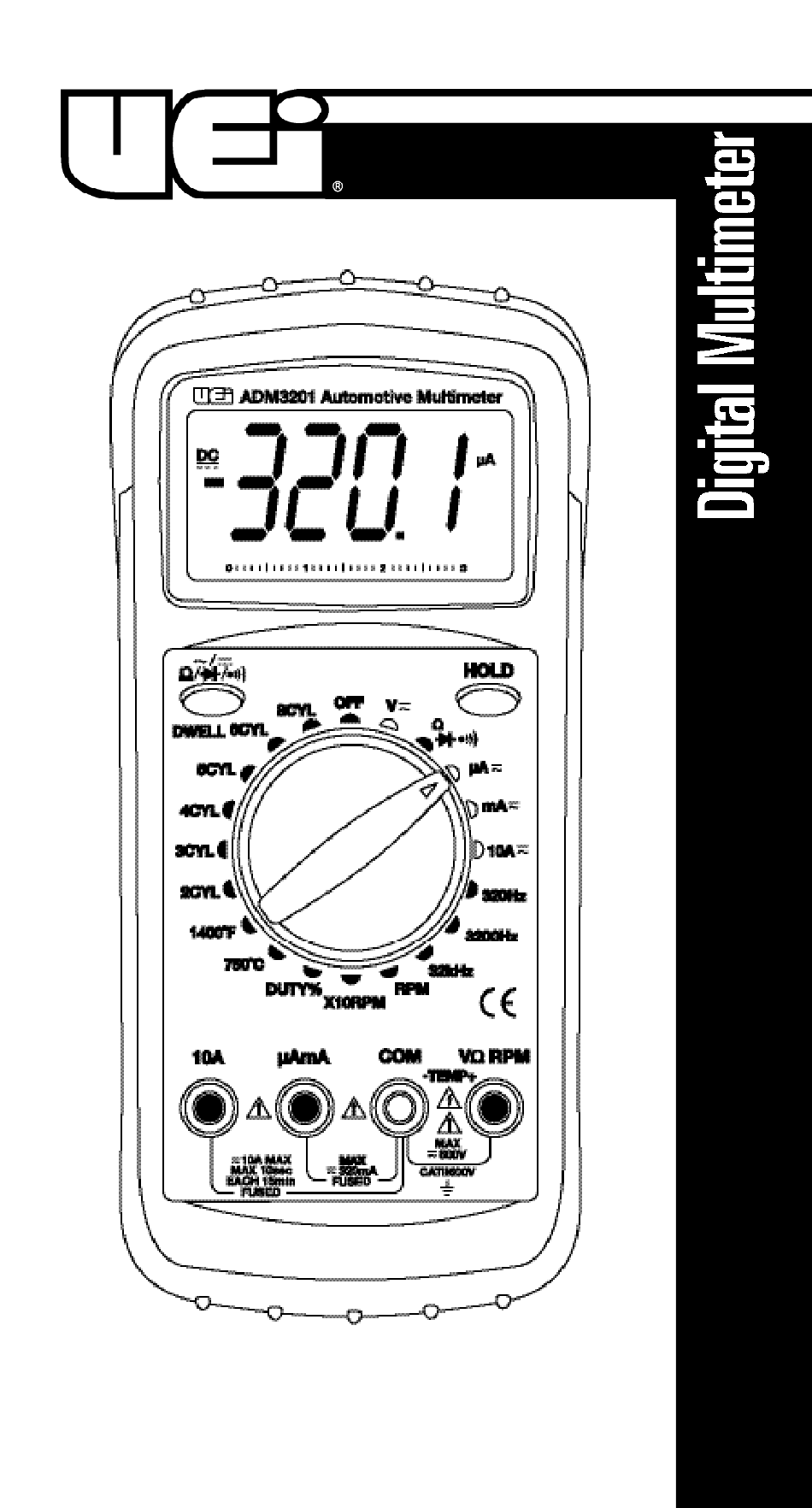

    C o n t rols and Indicators 1. LCD 2. Function-Selection Button 3. Data Hold Button 4. Rotary Switch 5. Input Jacks...
  • Page 7: Operating Instructions

    O p e rating Instructions Testing AC/DC Voltage 1. Insert the black test lead into the “COM” jack and the red test lead into the “VΩ RPM” jack. 2. Set the rotary switch in “V “ position, press the “ “...
  • Page 8: Diode Test

    Testing Diodes 1. Insert the black test lead into the “COM” jack and the red test lead into the “VR PM” jack. 2. Set the rotary switch in “ “ position. Press “ “ button to make the display show “ “.
  • Page 9: Temperature

    Measuring Temperature NOTE: To avoid possible damage to the meter or other equipment, remember that while the meter is rated for -4˚ to 1382˚F (-20˚ to ±750˚C), the K-type thermocouple provided with the meter is rated to 900˚F. For temperatures out of that range, use a higher rated thermocouple.
  • Page 10: Rpm

    1. Connect the inductive pickup to the meter. • Ground Lead into the “COM” terminal. • Signal Lead (red) into the “VΩ RPM” terminal. 2. Set the rotary switch to “RPM” (or “10 x RPM”) position. 3. Connect the inductive pickup to a spark plug wire noting the side of the inductive pickup toward the spark plug.
  • Page 11: Battery Replacement

    Battery Replacement When the symbol “ “ appears on the display, it shows that the battery should be replaced. To replace the battery, remove the screws on the case, replace the exhausted battery with new batteries of the same type. Reinstall the cover and the screws. Fuse Replacement This meter uses fuse: F 10A, L 250V, F 500mA, L 250V.
  • Page 12: Specifications

    Specifications 326mV to 600V DC Volts Resolution: 0.1mV to 1V Accuracy: 326mV ±(0.5% + 5) 3.26V~326V ±(0.8% + 5) 600V ±(1.0% + 8) 3.26V to 600V AC Volts Resolution: 1mV to 1V Accuracy: 3.26V ±(0.8% + 5)(400~200Hz) 32.6V ±(1.2% +7)(200~400Hz) 326V ±(1.0% + 5)(40~200Hz) 600V ±(1.5% + 7)(200~400Hz) 326_A to 10A...
  • Page 13 1~99% Duty Cycle Resolution: 0.1% Accuracy: ±(2.5% + 5) Temperature 1400˚F or 750˚C Resolution: 1˚ Accuracy: -4˚~32˚F(0˚~20˚C): ±(6.0% + 5) 32˚~752˚F(0˚~400˚C): ±(1.5% + 5) 752˚~1382˚F(401˚~750˚C): ±(1.8% + 5)
  • Page 14: Warranty And Service Information

    If within the warra n ty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option. This warra n ty covers normal use and does not cover damage which occurs in shipment or failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper maintenance.
