Summary of Contents for UEi UTL33T

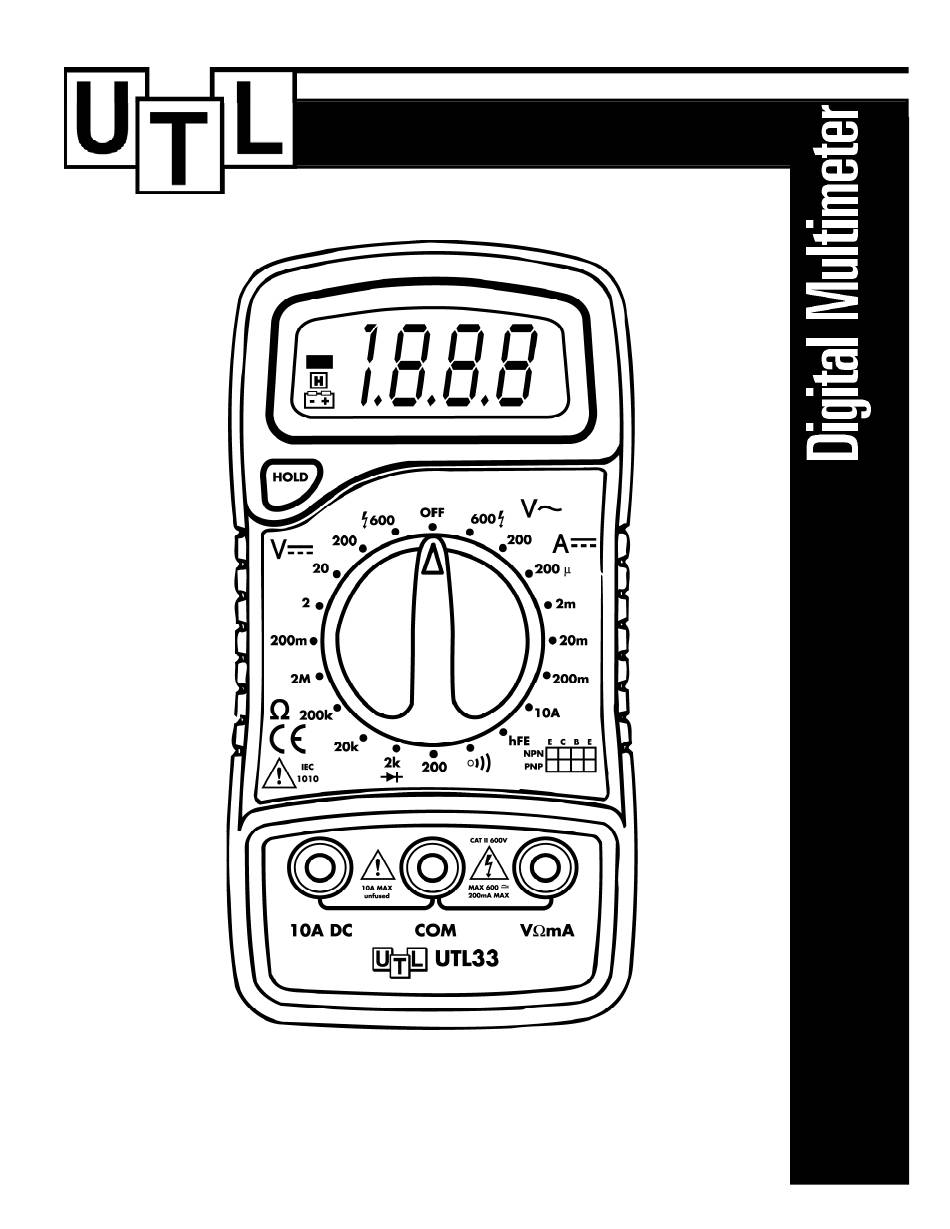

- Page 1 INSTRUCTION MANUAL UTL33 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Features Include
• DO NOT attempt to measure any voltage that exceeds 600 volts 2. Back Light: (option) Push this button to turn on the back light. with this meter - UEi offers numerous alternatives for measuring 3. Rotary Switch: This switch is used to select functions and desired high voltage and current ranges as well as to turn on/off the meter. - Page 3 AC Voltage Measurement 1. Connect the red test lead to the “V mA” jack and the black lead to the “COM” jack. 2. Set the rotary switch at desired AC V position. 3. Connect test leads across the source or load being measured. 4.
-
Page 4: Periodic Service
M a i n t e n a n c e S p e c i f i c a t i o n s Periodic service Accuracy is specified for a period of one year after calibration and at 64˚ to 82˚F (18˚... - Page 5 AC Voltage Range Description If continuity exists (about less than 1.5k), built-in buzzer will sound. Show the approx. forward voltage drop of the diode. Overload protection: 250V DC or rms. AC. Resistance Range Resolution Accuracy ±0.8% of reading ±3 digits ±0.8% of reading ±2 digits 20 k 200 k...
-
Page 6: Digital Multimeter
Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the express warranty. UEi shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss.
