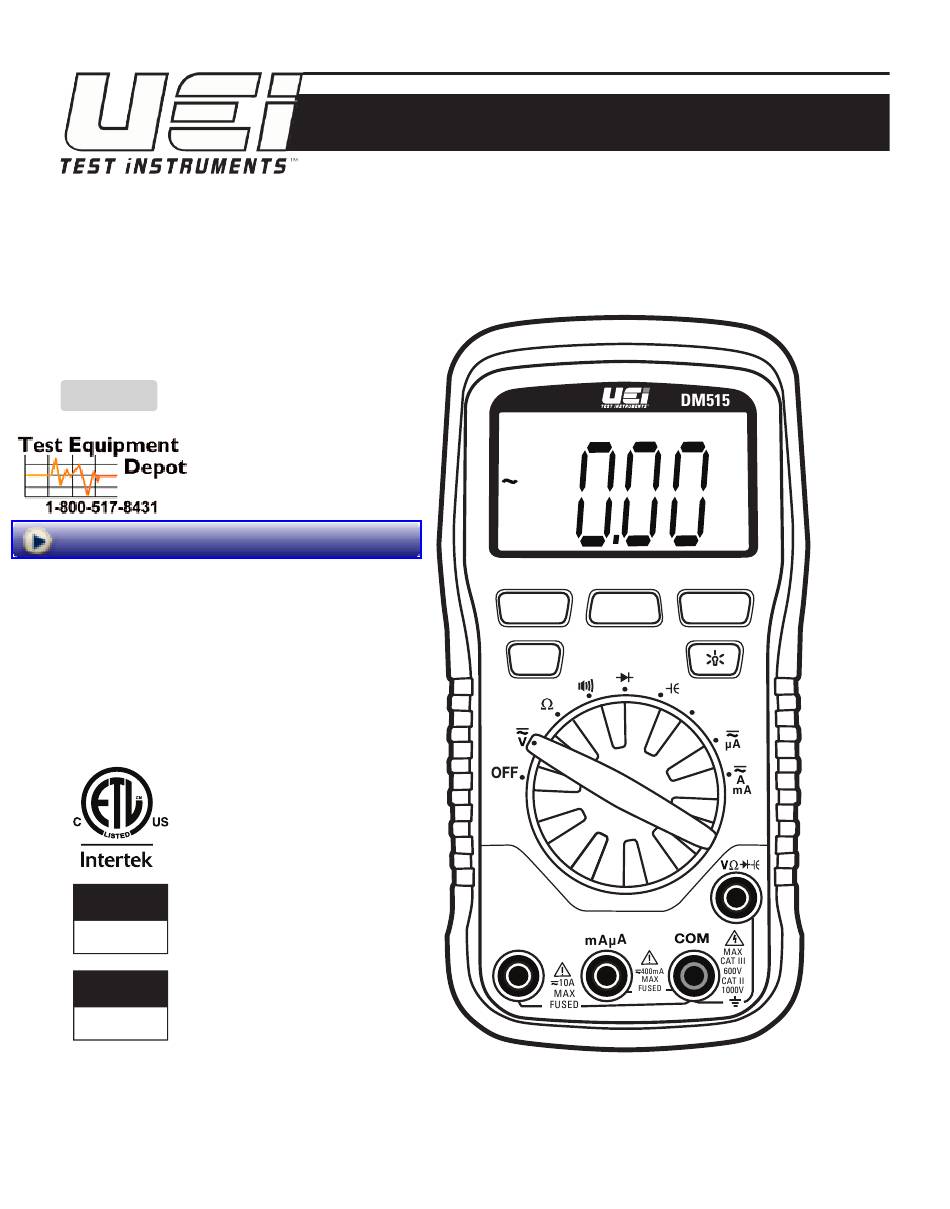

- Page 1 DM515 True RMS 1000V Digital Multimeter w/Temperature INSTRUCTION MANUAL ENGLISH 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com RANGE MIN/MAX HOLD FAST °F°C Temp 600V True RMS CAT III 1000V CAT II...
-
Page 2: Table Of Contents
TABLE OF CONTENTS FUNCTIONS ..............................3 FEATURES ..............................3 GENERAL SPECIFICATIONS ........................3 CATEGORY DEFINITIONS .......................... 3 IMPORTANT SAFETY WARNINGS ......................4 CLEANING ..............................4 OVERVIEW ..............................5 SYMBOLS ..............................6 OPERATING INSTRUCTIONS AC/DC Voltage: <1000V AC/DC ....................6 Resistance: <40MΩ ........................... 7 Continuity ............................ -
Page 3: Functions
FUNCTIONS • 1000V AC/DC • Capacitance 9999µF • 10A AC/DC • Temperature -328˚ to 2462˚F (-200˚ to 1350˚C) • Resistance 40MΩ • Microamps • Diode test • Milliamps • Audible continuity FEATURES • True RMS • Rubber boot • Auto/Manual ranging •... -
Page 4: Important Safety Warnings
IMPORTANT SAFETY WARNINGS WARNING Read entire Safety Notes section regarding potential hazard and proper instructions before using this meter. In this manual the word “WARNING” is used to indicate conditions or actions that may pose physical hazards to the user. The word “CAUTION”... -
Page 5: Overview
OVERVIEW RANGE MIN/MAX HOLD FAST °F°C Temp True RMS A. Apo: Auto power off after 30 minutes of use. Press and hold the HOLD button while turning the meter on F. Function Dial: Turns on meter and is used to select to disable Apo. -
Page 6: Symbols
SYMBOLS Negative AC/DC Voltage or Current Auto-ranging Overload: Range Exceeded Auto power off Active Low Battery Maximum measured Minimum measured Hold/Capture Value value displayed value displayed µF Voltage Amps Microfarad Microamps Milliamps Diode Nano Farads Ohms/Resistance Continuity Degrees Fahrenheit Degrees Celsius Fuse Warning or Caution Ground... -
Page 7: Resistance: <40Mω
Resistance: <40MΩ RANGE MIN/MAX HOLD FAST °F°C °F°C Features: HOLD RANGE MIN/MAX Temp WARNING True RMS • Do not measure resistance on a live circuit. Ranges Accuracy Resolution Overload Protection 600Ω to 6MΩ ±(0.8% +5 dgts) 0.1Ω to 0.001MΩ 600V 40MΩ... -
Page 8: Diode
Diode GOOD DIODE BAD DIODE Open Diode Displays "OL" Both directions Forward Bias Displays approx. RANGE MIN/MAX HOLD FAST voltage drop °F°C °F°C '0' Both directions (shorted) • Forward voltage drop if forward biased. Reverse Bias Temp • “OL” if reverse biased. Displays "OL"... -
Page 9: Ac/Dc Microamps: 6000Μa
AC/DC Microamps: 6000μA AC/DC Milliamps: 400mA µ A RANGE MIN/MAX HOLD RANGE MIN/MAX HOLD FAST FAST Keep hands behind test lead guards when measuring current levels. Features: HOLD RANGE MIN/MAX ACµA Ranges Accuracy Resolution Overload Protection 600μA to 6000μA ±(1.2% +5 dgts) 0.1μA to 1μA 600mA /1000V Fast Fuse Minimum sensitivity: 50μA AC (auto selection mode only) -
Page 10: Ac/Dc Amps: <10A
AC/DC Amps: <10A RANGE MIN/MAX HOLD FAST WARNING Keep hands behind test lead guards when measuring current levels. • Do not attempt to measure more than 10A AC. Features: HOLD RANGE MIN/MAX AC AMPS Ranges Accuracy Resolution Overload Protection 6A to 10A ±(1.5% +5 dgts) 0.001A to 0.01A 11A/1000V Fast fuse... -
Page 11: Test Lead Notes
Test Lead Notes CATIII 1000V Measurement Locations • Ensure the test lead shield is pressed firmly in place. Failure to use the CATIV shield increases arc-flash risk. CATII 1000V Measurement Locations 18mm 18mm • CAT IV shields may be removed for CAT II locations. This will allow testing on recessed conductors such as standard wall outlets. -
Page 12: Fcc/Ic Information
WARRANTY The DM515 is warranted to be free from defects in materials and workmanship for a period of 2 years from the date of purchase. If within the warranty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
