Summary of Contents for UEi UTL33

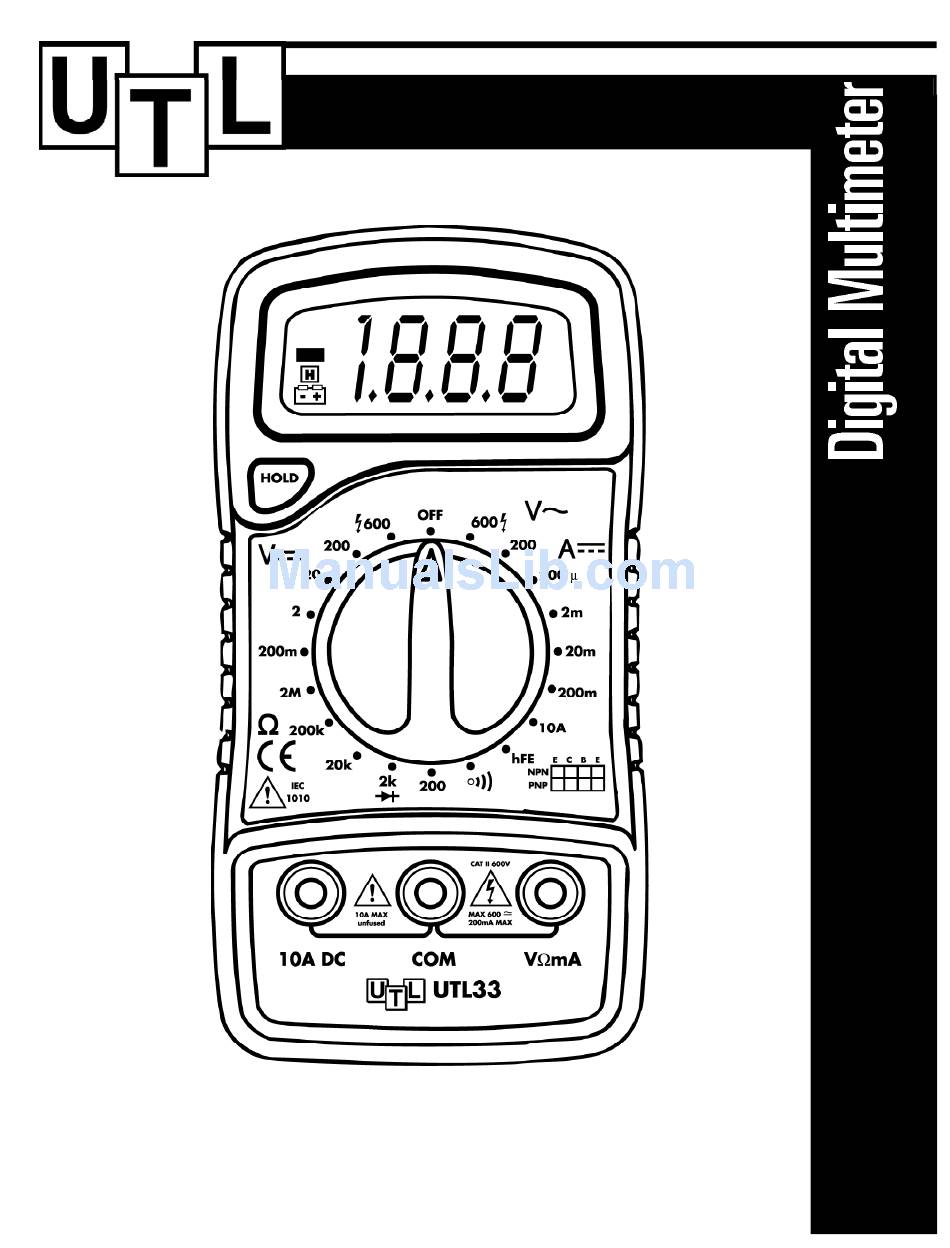

- Page 1 INSTRUCTION MANUAL UTL33 1-800-547-5740 • Fax: (503) 643-6322 www.ueitest.com • email: info@ueitest.com...
-
Page 2: International Symbols

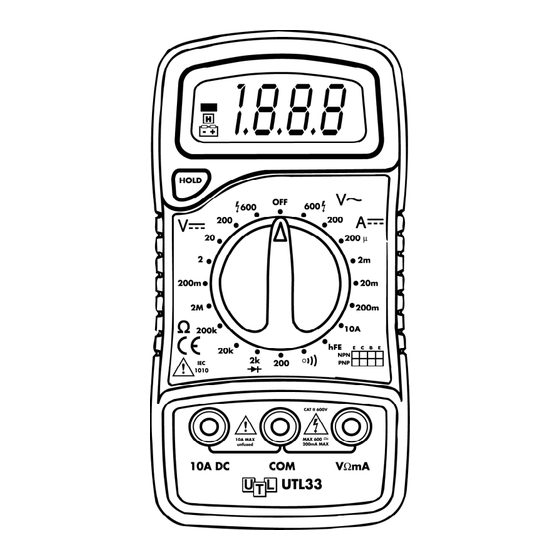

The UTL33 is a full featured digital multimeter. It has the measurement • Keep your fingers away from the test lead metal probe contacts functions (including temperature) needed to help technicians successfully and bus-bars when making measurements. -
Page 3: Operating Instructions
3. Open the circuit in which the current is to be measured, and connect test leads in series with the circuit. 4. Read current value on LCD display along with the polarity of red lead connection. UTL33-MAN P. 2... - Page 4 100 mV ±1.2% of reading ±10 digits or install batteries. 600 V Overload protection: 600V DC or rms. AC for all ranges. Frequency range: 40Hz to 400Hz. Response: Average responding, calibrated in rms. of a sine wave. UTL33-MAN P. 3...
- Page 5 ±1.0% of reading ±2 digits Maximum Open Circuit Voltage: 3.2V Overload Protection: 250V DC or rms. AC for all ranges. Transistor “hFE” Test (0-1000) Range Test Range Test Current Test Voltage NPN & PNP 0-1000 lb=10 µA Vce=3V UTL33-MAN P. 4...
-
Page 6: Limited Warranty
Digital Multimeter Limited Warranty The UTL33 is warranted to be free from defects in materials and workmanship for a period of one year from the date of purchase. If within the warra n ty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
