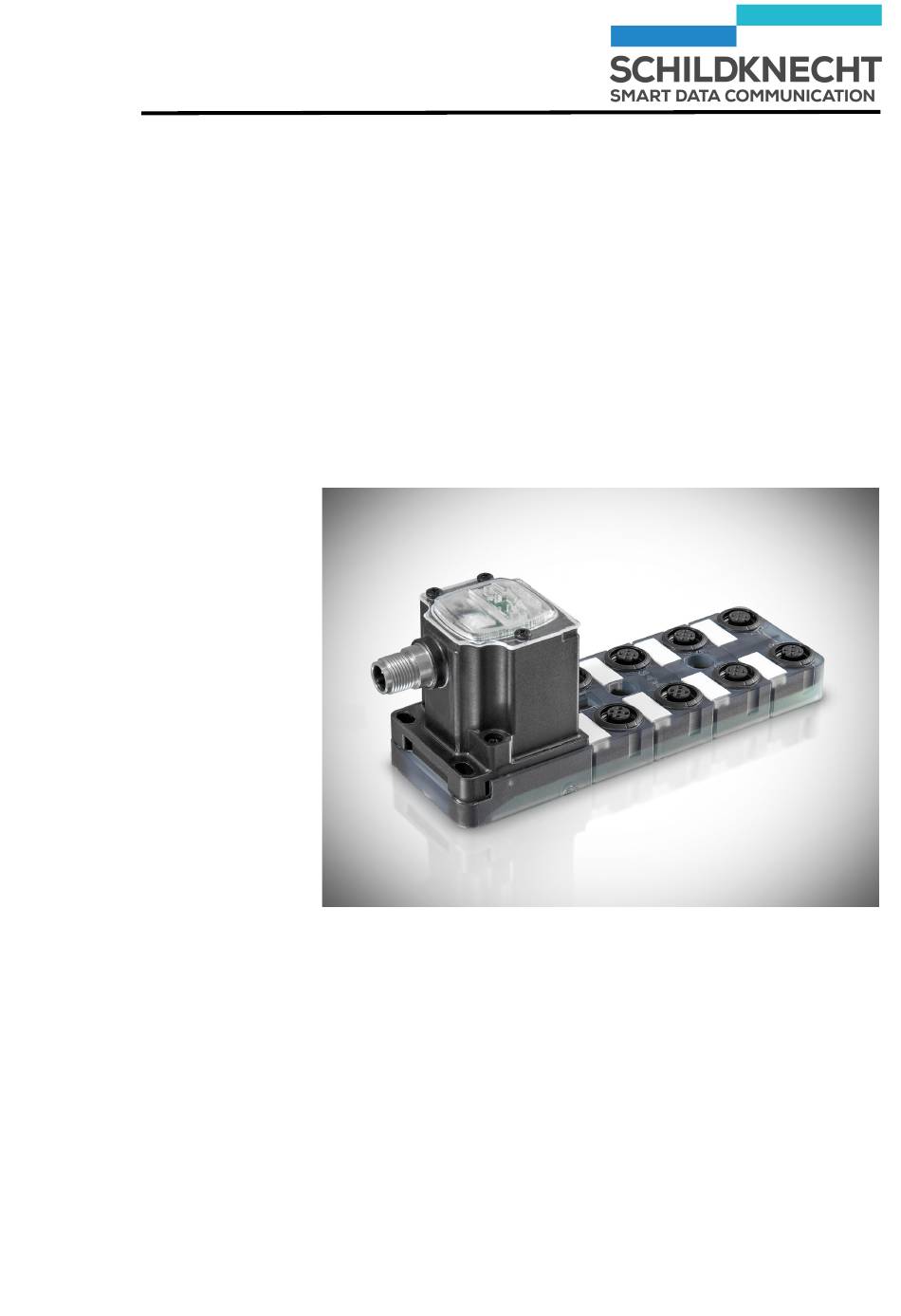

- Page 1 Installation and commissioning manual Wireless Data System SET DATAEAGLE® X-treme IO 2730 Schildknecht AG D -71711 Murr – Haugweg 26 Phone +49 (0)7144 89718-0 - Fax +49 (0) 7144 8971829 Email: office@schildknecht.ag - Internet: www.schildknecht.ag DATAEAGLE X-treme IO 2730 Version: 15.02.2019...
-
Page 2: Introduction
Introduction Schildknecht AG The technical description of the wireless data systems from All rights reserved. Schildknecht AG consists of an operating instruction for all No part of this publica- tion may be reproduced product families and an installation and commissioning or translated in full or in manual for each product family. - Page 3 If you do need us in person: just call us or send a fax: Schildknecht AG Haugweg 26 D -71711 Murr Phone +49 / (0) 7144 89718-0 +49 / (0) 7144 8971829 Internet www.schildknecht.ag e-mail e-mail office@schildknecht.ag Installation and commissioning SET DATAEAGLE X-treme IO 2730...
-
Page 4: Table Of Contents
5. Extension and exchange 6. Tips and Tricks 6.1. Improving the EMC safety 6.1.1. Introduction 6.1.2. Basic guidlines 6.2. Guidelines for optimized installation of antennas 6.3. Advices for troubleshooting 7. Technical specifications Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 5: General Information
Corp. DATAEAGLE® is a registered trademark of Schildknecht AG. 1.3. Declaration of conformity and EC direc- tives Information about the declaration of conformity and about EC directives can be found under: http://www.schildknecht.ag/download/dataeagle-konformitaetserklaerung Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 6: Safety Instructions
Safety instructions which apply only to an individual wireless data system are described below and in the according sec- tion of this installation and commissioning manual. Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 7: Installations Instructions
Do not repair the module yourself, replace it with an equivalent module. Repairs may only be carried out by the Schildknecht AG. The Schildknecht AG is not liable for damage resulting from a failure to comply. -
Page 8: Personnel Qualification
All operating personnel must be trained accordingly. Personnel involved with operating the unit in conjunction with controllers must possess sound programming skills for the individual controller and programming language in question. Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 9: Structure
Chapter 3 – Structure 3. Structure 3.1. System description The SET DATAEAGLE X-treme IO 2730 system is used for bidirectional transmission of digital or analog signals via ra- dio. It consists of a radio master and a radio slave module. -
Page 10: Radio Module
2,4 GHz Bluetooth LE 4.2 2,5 mW internal 12202 2,4 GHz Bluetooth LE 4.2 2,5 mW internal 12203 2,4 GHz Bluetooth LE 4.2 2,5 mW internal 12204 2,4 GHz Bluetooth LE 4.2 2,5 mW internal Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 11: Structure And Connections Of The Radio Module
Chapter 3 – Structure 3.3. Structure and connections of the radio module: Digital / analog Inputs /Outputs sockets X1-X8 Status LEDs Power, RX, Link Poewr supply +24V,GND,PE plug X0 Installation and commissioning SET DATAEAGLE X-treme IO 2730... - Page 12 „DIL1- DIL8“ Name Position Function DIL 1 „off“ Outputs switch off in case of radio interruption >2s. „on“ Outputs are held. DIL 2-5 „off“ no function DIL 6-8 „off“ reserved, position "off" mandatory Installation and commissioning SET DATAEAGLE X-treme IO 2730...
- Page 13 Input/output (socket) M12 A coding Wire colour Pin 1: Vout (+24VDC) brown Pin 2: ---- (leave open) white Pin 3: blue Pin 4: Dig.IN/ OUT Analog IN/OUT black (0-10V bzw. 4-20mA) Pin 5: green/yellow Installation and commissioning SET DATAEAGLE X-treme IO 2730...
- Page 14 Chapter 3 – Structure Schematic dia- Internal Supply gram digital iputs X1-X8 Pin 1 Vout Pin 4 Pin 3 External Supply Pin 1 Vout Pin 4 Pin 3 Installation and commissioning SET DATAEAGLE X-treme IO 2730...
- Page 15 Chapter 3 – Structure Schematic dia- Internal Supply gram analog iputs X1-X8 0- Pin 1 Vout 0-10V Pin 4 Vbat Pin 3 External Supply Pin 1 Vout 0-10V Pin 4 Vbat Pin 3 Installation and commissioning SET DATAEAGLE X-treme IO 2730...
- Page 16 Internal Supply gram analog iputs X1-X8 4- Pin 1 20mA Vout Vbat Pin 4 Iout 4-20mA 500Ω Pin 3 External Supply Pin 1 Vout Vbat Pin 4 Iout 4-20mA 500Ω Pin 3 Installation and commissioning SET DATAEAGLE X-treme IO 2730...
- Page 17 ∑ Iout < 1 A ! Pin 3 Schematic dia- gram analog outputs X1-X4 0- 10V bzw. Pin 1 4-20mA Vout Pin 4 Iout CAUTION Iout <= 20mA ! Last Pin 3 Installation and commissioning SET DATAEAGLE X-treme IO 2730...
-
Page 18: Installation Of New Devices
The installation is very easy and is carried out according to the procedure shown below: Mounting the radio module Connecting sensors/actuators Closing unused M12 sockets (X1-X8) Connecting power supply (X0) Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 19: Mounting The Radio Module
Ensure that the mounting surface is level for voltage-free mounting. o Provide suitable earthing. o If necessary, drill mounting holes. Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 20: Connecting Sensors/Actuators
4.3.1. Assignment of sockets X1-X8 by device type The function and assignment of the connector sockets of a Dataeagle X-treme IO 2730 set depends on the set configu- ration. Depending on its function, a set can consist of differ- ent hardware modules. - Page 21 4 DI 4 DO Input 1.1: X1 Output 2.1: X1 Input 1.2: X2 Output 2.2: X2 Input 1.3: X3 Output 2.3: X3 Input 1.4: X4 Output 2.4: X4 Installation and commissioning SET DATAEAGLE X-treme IO 2730...
-
Page 22: Closing The M12 Sockets
Seal all unused M12 sockets using the supplied M12 sealing caps to ensure tightness of the module. When tightening, please also pay attention to the cor- rect tightening torque of 0.6 Nm. Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 23: Connecting The Power Supply (X0)
4.5. Connecting the power supply (X0) CAUTION Make sure that the connecting cable for the module is disconnected from the power supply before connecting! Now connect the power supply cable of the module to connector X0. Installation and commissioning SET DATAEAGLE X-treme IO 2730... - Page 24 2 minutes. Please make sure that the supply voltage sup- plies 9 to 33 V DC before switching on the supply volt- age again. Installation and commissioning SET DATAEAGLE X-treme IO 2730...
-
Page 25: Extension And Exchange
Chapter 5 – Extension and exchange 5. Extension and exchange There are no plans to expand the system or replace individu- al components. In case of a defect, please always replace the complete set. Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 26: Tips And Tricks
The grounding point has to be connected with a preferably short copper cable (with little resistance) to the protective earth conductor connection of the device. Installation and commissioning SET DATAEAGLE X-treme IO 2730... - Page 27 Connect all unused leads of a cable always on both sides to Plug housing Use metallic or metallised plug housing. The shielding of the cable should always be connected to the plug housing. Installation and commissioning SET DATAEAGLE X-treme IO 2730...
- Page 28 (to be measured with a current clamp), galvanic isola- tion should be provided via a 100nF /230V X capacitor. The capacitor has a low resistance to high-frequency interference levels but prevents ring currents. Installation and commissioning SET DATAEAGLE X-treme IO 2730...
-
Page 29: Guidelines For Optimized Installation Of Antennas
All antennas should have the same orientation, e.g. vertical. Distance and Keep sufficient distance to metal parts and walls. free radiation Keep maximum distance to motors and frequency converters. Provide free radiation. Installation and commissioning SET DATAEAGLE X-treme IO 2730... - Page 30 Antennen außerhalb des Schaltschranks montieren. Out-off the control cabinet Elektromagnetische Strahlung. Keep at least a distance of 20 cm to the antennas when the devices are in operation Installation and commissioning SET DATAEAGLE X-treme IO 2730...
-
Page 31: Advices For Troubleshooting
Pay attention that coax antenna cable is not flexed. Check next if all antennas are installed according to the guidelines described in chapter 6.2. Sources of Check if there are any interferences on the transmission interference side. Installation and commissioning SET DATAEAGLE X-treme IO 2730... -
Page 32: Technical Specifications
24V , 1A ∑ Digital inputs 0-30V Digital outputs max. 200mA per output (max. 8 outputs) Analog inputs 0-10V or 0-20mA (Bürde 500 Ω) Analog outputs 0-10V or 0-20mA (max. 4 outputs) Installation and commissioning SET DATAEAGLE X-treme IO 2730...
