KIT PRO
FLASH
INSTALLATION GUIDE
F L A S H K I T P R O I S T H E C O M P L E T E F L A S H I N G A N D AT TA C H M E N T S O L U T I O N F O R C O M P O S I T I O N R O O F S .
STEP 1
INSTALL FLASHKIT PRO FLASHING
PRE-INSTALL SYSTEM LAYOUT
• Locate rafters and snap horizontal and vertical lines to mark the
installation position for each flashing.
• Drill a pilot hole (1/4" diameter) for the lag bolt. Backfill with sealant.
STEP 1 INSTALL FLASHKIT PRO FLASHING
• Insert the flashing so the top part is under the next row of shingles
and pushed far enough upslope to prevent water infiltration through
vertical joint in shingles.
• The leading edge of flashing must butt against upper row of nails to
prevent turning when torqued.
QUICK TIP:
• For vertical adjustment when leading edge of flashing hits nails in
upper shingle courses, slide flashing up under shingles until leading
edge engages nails. Measure remaining distance to adjust upslope.
• Remove flashing and cut a "V" notch at marks where nail shafts
engaged leading edge of flashing the distance desired in Step 1.
Notch depth not to exceed 2" in length by 1/2" in width.
• Re-install flashing with notched area upslope, and position notched
leading edge underneath nail heads.
FASTER INSTALLATION. 25-YEAR WARRANTY.
F O R Q U E S T I O N S O R C U S T O M E R S E R V I C E V I S I T U N I R A C . C O M O R C A L L ( 5 0 5 ) 2 4 8 - 2 7 0 2

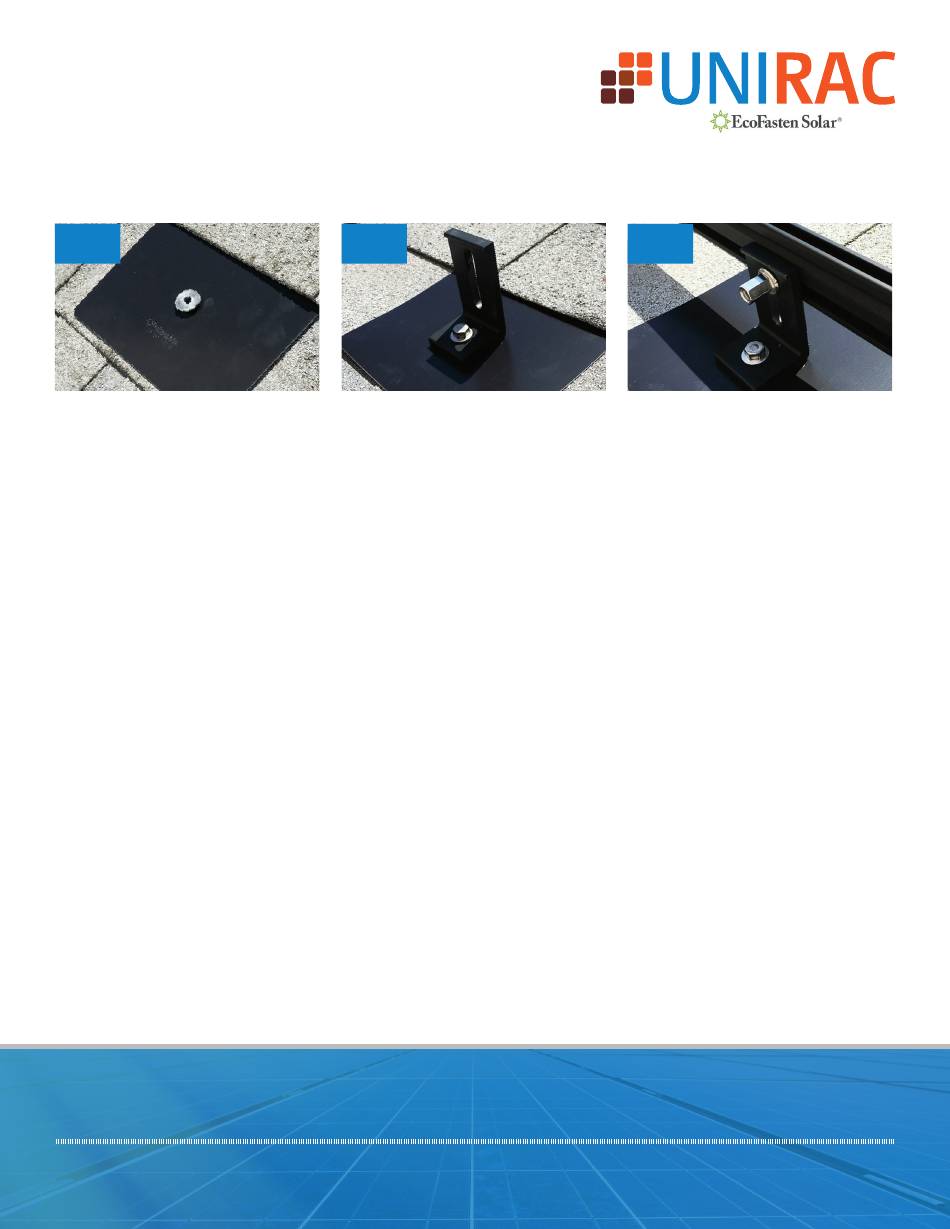

STEP 2
INSTALL L-FOOT
STEP 2 INSTALL L-FOOT
• Line up pilot hole with FLASHKIT PRO fastener hole.
• Insert the lag bolt through the EPDM washer, the top L-101-3
• Torque to 100-140 torque inch-pounds depending on the type of
STEP 3 ATTACH L-FOOT TO RAIL
• Slide the 3/8"-16 racking hardware into rail slot, spacing bolts to
• Torque 3/8" nut to 30ft-lbs. Use anti-seize to prevent galling.
• If attaching L-Foot to light rail, ensure the L-Foot does not
F EATU RI NG
STEP 3
ATTACH L-FOOT TO RAIL
compression bracket, and the gasketed hole in the flashing and into
the rafter.
wood and time of year. The visual indicator for proper torque is when
the EPDM on the underside of the bonded washer begins to push out
the sides as the washer compresses. If using an impact wrench to
install the fasteners be careful not to over torque the fastener. You
may need to stop and use a ratchet to finish the install.
match the spacing of the attachments.
protrude above the top edge of the rail.
T ECH NO L O G Y
Need help?
Do you have a question about the FLASHKIT PRO and is the answer not in the manual?
