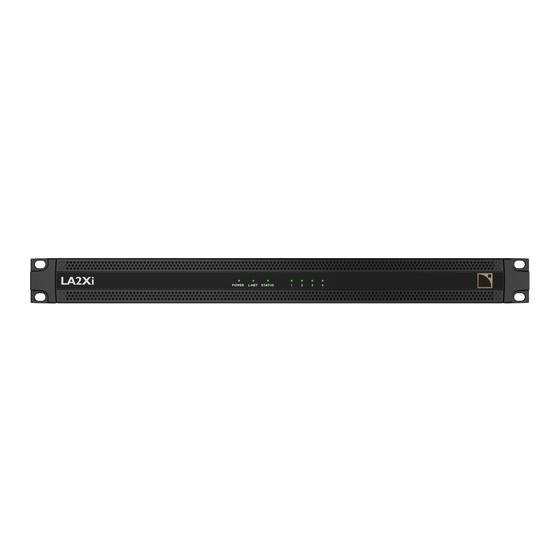

L-Acoustics LA2Xi Owner's Manual
  1. Manuals
  2. Brands
  3. L-Acoustics Manuals
  4. Controller
  5. LA2Xi
  6. Owner's manual

L-Acoustics LA2Xi Owner's Manual

Hide thumbs Also See for LA2Xi:
Table of Contents

Advertisement

Quick Links

Preset Guide
owner's manual (EN)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LA2Xi and is the answer not in the manual?

Questions and answers

Related Manuals for L-Acoustics LA2Xi

Summary of Contents for L-Acoustics LA2Xi

  • Page 1 Preset Guide owner's manual (EN)
  • Page 2 Document reference: Preset Guide owner's manual (EN) version 16.0 Distribution date: March 8, 2021 © 2021 L-Acoustics. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.

  • Page 3: Table Of Contents

    Contents Introduction................................ 5 Preset design..............................6 Onboard preset libraries............................. 8 LA2Xi preset library..........................8 LA4 preset library........................... 11 LA4X preset library..........................15 LA8 preset library........................... 19 LA12X preset library..........................26 FLAT presets..............................31 Variable Curvature WST systems presets......................32 K1................................. 32 K2................................. 34 K3.................................
  • Page 4 X15 HiQ..............................60 8XT, 12XTP, MTD108a, MTD112b and MTD115bP................... 61 12XTA, 115XT, 115XT HiQ and MTD115bA.................... 62 Subwoofer loudspeaker enclosures presets......................63 Pre-alignment delay values..........................66 Variable curvature WST systems.......................67 Constant curvature WST systems......................81 Colinear systems............................. 84 Coaxial loudspeaker enclosures....................... 84 Impedance load...............................

  • Page 5: Introduction

    Updating rmware on an L-Acoustics amplied controller Refer to the LA Network Manager help, accessible from the Help menu of the software. This version of the preset guide describes the LA2Xi, LA4, LA4X, LA8 and LA12X preset libraries version 6.6(.2). Symbols The following symbols are used in this document: This symbol indicates a potential risk of harm to an individual or damage to the product.

  • Page 6: Preset Design

    Preset design Gain structure The gains of all L-Acoustics factory presets are calibrated with a reference pink noise signal, representative of most demanding musical programs. The reference input level is 0 dBu (with analog audio source) or -22 dBFS (with digital audio source).
  • Page 7 • the _FI preset, dedicated to loudspeaker enclosures used as a ll system (for some systems only) The oldest WST systems inherit from a legacy preset structure (_HI and _LO presets). If necessary, users can adjust the sonic signature of L-Acoustics systems through the Contour EQ tools in LA Network Manager.

  • Page 8: Onboard Preset Libraries

    LA2Xi preset library The LA2Xi onboard preset library is stored in the factory memory locations 011 to 067 of the controller (the memory locations 001 to 010 are dedicated to the storage of presets modied by the user). Each preset family is described in the tables below, including the presets memory location number, name, and description.
  • Page 9 Onboard preset libraries [A10] A10 Wide or A10 Focus, full range [A10_FI] A10 Wide or A10 Focus, full range, ll ARCS_WF [ARCS_WIFO] ARCS Wide or ARCS Focus, full range, FOH [ARCS_WIFO_FI] ARCS Wide or ARCS Focus, full range, ll KS28 [KS28_60] KS28, LPF=60 Hz [KS28_100]...
  • Page 10 Onboard preset libraries SB15 [SB15_100] SB15, LPF=100 Hz [SB15_100_C] SB15, LPF=100 Hz, cardioid pattern [SB15_100_Cx] SB15, LPF=100 Hz, extended cardioid pattern SYVA [SYVA] Syva, full range SYVA_LOW [SYVA LOW_100] Syva Low (separated), LPF=100 Hz SYVA+LOW [SYVA LOW SYVA] Syva & Syva Low (coupled) SYVA_SUB [SYVA SUB_100] Syva Sub, LPF=100 Hz...

  • Page 11: La4 Preset Library

    Onboard preset libraries LA4 preset library The LA4 onboard preset library is stored in the factory memory locations 011 to 094 of the controller (the memory locations 001 to 010 are dedicated to the storage of presets modied by the user). Each preset family is described in the tables below, including the presets memory location number, name, and description.
  • Page 12 Onboard preset libraries SB15 [SB15_100] SB15, LPF=100 Hz [SB15_100_C] SB15, LPF=100 Hz, cardioid pattern [SB15_100_Cx] SB15, LPF=100 Hz, extended cardioid pattern KILO [KILO] Kilo, LPF=100 Hz SYVA_SUB [SYVA SUB_200] Syva Sub, LPF=200 Hz, optimized for [X4] preset 12XTA [12XTA_FI] 12XT active, full range, ll [12XTA_FI_100] 12XT active, HPF=100 Hz, ll [12XTA_FR]...
  • Page 13 Onboard preset libraries 115XT [115XT_FI] 115XT, full range, ll [115XT_FI_100] 115XT, HPF=100 Hz, ll [115XT_FR] 115XT, full range, FOH [115XT_FR_100] 115XT, HPF=100 Hz, FOH [115XT_MO] 115XT, full range, monitor [115XT_MO_100] 115XT, HPF=100 Hz, monitor MTD115bA [115bA_FI] MTD115b active, full range, ll [115bA_FI_100] MTD115b active, HPF=100 Hz, ll [115bA_FR]...
  • Page 14 Onboard preset libraries MTD108a [108a_FI] MTD108a, full range, ll [108a_FI_100] MTD108a, HPF=100 Hz, ll [108a_FR] MTD108a, full range, FOH [108a_FR_100] MTD108a, HPF=100 Hz, FOH [108a_MO] MTD108a, full range, monitor [108a_MO_100] MTD108a, HPF=100 Hz, monitor FLAT [FLAT_LA4] Flat EQ, protection minimizing clipping risks Preset Guide owner's manual (EN) version 16.0...

  • Page 15: La4X Preset Library

    Onboard preset libraries LA4X preset library The LA4X onboard preset library is stored in the factory memory locations 011 to 104 of the controller (the memory locations 001 to 010 are dedicated to the storage of presets modied by the user). Each preset family is described in the tables below, including the presets memory location number, name, and description.
  • Page 16 Onboard preset libraries KARA [KARA] Kara, full range, FOH [KARA_FI] Kara, HPF=100 Hz, ll [KARADOWNK1] Kara, HPF=100 Hz, optimized delay for K1 downll [KARADOWNK2] Kara, HPF=100 Hz, optimized delay for K2 downll [KARADOWNK3] Kara, HPF=100 Hz, optimized delay for K3 downll KIVA_II [KIVA II] Kiva II, full range, FOH...
  • Page 17 Onboard preset libraries SB18 [SB18_60] SB18, LPF=60 Hz [SB18_100] SB18, LPF=100 Hz [SB18_60_C] SB18, LPF=60 Hz, cardioid pattern [SB18_100_C] SB18, LPF=100 Hz, cardioid pattern [SB18_60_Cx] SB18, LPF=60 Hz, extended cardioid pattern [SB18_100_Cx] SB18, LPF=100 Hz, extended cardioid pattern SB15 [SB15_100] SB15, LPF=100 Hz [SB15_100_C] SB15, LPF=100 Hz, cardioid pattern...
  • Page 18 Onboard preset libraries 115XTHiQ [HiQ_FI] 115XT HiQ, full range, ll [HiQ_FI_100] 115XT HiQ, HPF=100 Hz, ll [HiQ_FR] 115XT HiQ, full range, FOH [HiQ_FR_100] 115XT HiQ, HPF=100 Hz, FOH [HiQ_MO] 115XT HiQ, full range, monitor [HiQ_MO_100] 115XT HiQ, HPF=100 Hz, monitor 12XTA [12XTA_FI] 12XT active, full range, ll...

  • Page 19: La8 Preset Library

    Onboard preset libraries LA8 preset library The LA8 onboard preset library is stored in the factory memory locations 011 to 182 of the controller (the memory locations 001 to 010 are dedicated to the storage of presets modied by the user). Each preset family is described in the tables below, including the presets memory location number, name, and description.
  • Page 20 Onboard preset libraries KARA_II [KARA II 70] Kara II, full range, 70º adjustable ns settings [KARA II 90] Kara II, full range, 90º adjustable ns settings [KARA II 110] Kara II, full range, 110º adjustable ns settings [KARA II_FI] Kara II, HPF=100 Hz, ll [KARAIIDOWNK1] Kara II, optimized delay for K1 downll [KARAIIDOWNK2]...
  • Page 21 Onboard preset libraries ARCS [ARCS_LO] ARCS, full range, LO contour [ARCS_LO_60] ARCS, HPF=60 Hz, LO contour [ARCS_LO_100] ARCS, HPF=100 Hz, LO contour [ARCS_HI] ARCS, full range, HI contour [ARCS_HI_60] ARCS, HPF=60 Hz, HI contour [ARCS_HI_100] ARCS, HPF=100 Hz, HI contour [A15] A15 Wide or A15 Focus, full range [A15_FI]...
  • Page 22 Onboard preset libraries SB18 [SB18_60] SB18, LPF=60 Hz [SB18_100] SB18, LPF=100 Hz [SB18_60_C] SB18, LPF=60 Hz, cardioid pattern [SB18_100_C] SB18, LPF=100 Hz, cardioid pattern [SB18_60_Cx] SB18, LPF=60 Hz, extended cardioid pattern [SB18_100_Cx] SB18, LPF=100 Hz, extended cardioid pattern SB118 [SB118_60] SB118, LPF=60 Hz [SB118_100] SB118, LPF=100 Hz...
  • Page 23 Onboard preset libraries SYVA+LOW [SYVA LOW SYVA] Syva & Syva Low (coupled) SYVA_SUB [SYVA SUB_100] Syva Sub, LPF=100 Hz [SYVA SUB_200] Syva Sub, LPF=200 Hz, optimized for [X4] preset X15HiQ [X15] X15 HiQ, full range [X15_MO] X15 HiQ, full range, monitor, low latency [X12] X12, full range [X12_MO]...
  • Page 24 Onboard preset libraries [8XT_FI] 8XT, full range, ll [8XT_FI_100] 8XT, HPF=100 Hz, ll [8XT_FR] 8XT, full range, FOH [8XT_FR_100] 8XT, HPF=100 Hz, FOH [8XT_MO] 8XT, full range, monitor [8XT_MO_100] 8XT, HPF=100 Hz, monitor [5XT] 5XT, full range [X4] X4i, full range 115XT [115XT_FI] 115XT, full range, ll...
  • Page 25 Onboard preset libraries 112XT [112XT_FI] 112XT, full range, ll [112XT_FI_100] 112XT, HPF=100 Hz, ll [112XT_FR] 112XT, full range, FOH [112XT_FR_100] 112XT, HPF=100 Hz, FOH [112XT_MO] 112XT, full range, monitor [112XT_MO_100] 112XT, HPF=100 Hz, monitor MTD112b [112b_FI] MTD112b, full range, ll [112b_FI_100] MTD112b, HPF=100 Hz, ll [112b_FR]...

  • Page 26: La12X Preset Library

    Onboard preset libraries LA12X preset library The LA12X onboard preset library is stored in the factory memory locations 011 to 109 of the controller (the memory locations 001 to 010 are dedicated to the storage of presets modied by the user). Each preset family is described in the tables below, including the presets memory location number, name, and description.
  • Page 27 Onboard preset libraries [A15] A15 Wide or A15 Focus, full range [A15_FI] A15 Wide or A15 Focus, full range, ll [A10] A10 Wide or A10 Focus, full range [A10_FI] A10 Wide or A10 Focus, full range, ll ARCS_WF [ARCS_WIFO] ARCS Wide or ARCS Focus, full range, FOH [ARCS_WIFO_FI] ARCS Wide or ARCS Focus, full range, ll KS28...
  • Page 28 Onboard preset libraries SB18 [SB18_60] SB18, LPF=60 Hz [SB18_100] SB18, LPF=100 Hz [SB18_60_C] SB18, LPF=60 Hz, cardioid pattern [SB18_100_C] SB18, LPF=100 Hz, cardioid pattern [SB18_60_Cx] SB18, LPF=60 Hz, extended cardioid pattern [SB18_100_Cx] SB18, LPF=100 Hz, extended cardioid pattern SB15 [SB15_100] SB15, LPF=100 Hz [SB15_100_C] SB15, LPF=100 Hz, cardioid pattern...
  • Page 29 Onboard preset libraries [X12] X12, full range [X12_MO] X12, full range, monitor, low latency [X8] X8, full range [X8_MO] X8, full range, monitor, low latency 115XTHiQ [HiQ_FI] 115XT HiQ, full range, ll [HiQ_FI_100] 115XT HiQ, HPF=100 Hz, ll [HiQ_FR] 115XT HiQ, full range, FOH [HiQ_FR_100] 115XT HiQ, HPF=100 Hz, FOH [HiQ_MO]...
  • Page 30 Onboard preset libraries [5XT] 5XT, full range [X4] X4i, full range FLAT [FLAT_LA12X] Flat EQ, protection minimizing clipping risks Preset Guide owner's manual (EN) version 16.0...

  • Page 31: Flat Presets

    • Using the [FLAT_LA2X] preset with LA2Xi in SE mode provides 0 dB of headroom. • Using the [FLAT_xxxx] preset with LA2Xi in BTL/PBTL modes, LA4, or LA4X provides 6 dB of headroom. • Using the [FLAT_LA8] preset with LA8 provides 8 dB of headroom.

  • Page 32: Variable Curvature Wst Systems Presets

    Variable Curvature WST systems presets Variable Curvature WST systems presets The factory presets dedicated to variable curvature WST line sources are optimized for long throw applications. In the following sections, tables describe the loudspeaker congurations and the factory presets for each system. Discriminant acoustic properties of each loudspeaker conguration are given, such as -10 dB bandwidth or LF limit, frequency response contour, or directivity specicity.
  • Page 33 Variable Curvature WST systems presets [K1SB_X] and [K1SB_60] outputs channels routing gain delay polarity mute OUT 1 IN A 0 dB 0 ms OUT 2 IN A 0 dB 0 ms OUT 3 IN A 0 dB 0 ms OUT 4 IN A 0 dB 0 ms...
  • Page 34 Variable Curvature WST systems presets preset(s) loudspeaker acoustic properties conguration K1-SB KS28 or SB28 * 35 Hz - 20 kHz K2 line source [K2 xxx] — adjustable horizontal directivity K2 / K1-SB line [K2 xxx] [K1SB_X K2] — enhanced LF throw source (K1-SB on top) down to 30 Hz K2 line source +...
  • Page 35 Variable Curvature WST systems presets [KARADOWNK2] / [KARAIIDOWNK2] loudspeaker elements outputs channels routing gain delay polarity mute OUT 1 IN A 0 dB 0 ms OUT 2 OUT 3 IN A 0 dB 0 ms OUT 4 The [KARAIIDOWNK2] preset is optimized for a 110° ns setting on Kara II. The factory parameters already include optimal delay value for the coupling of a K2 line source with Kara or Kara II as a downll.
  • Page 36 Variable Curvature WST systems presets preset(s) loudspeaker acoustic properties conguration KS28 or KS21 * 42 Hz - 20 kHz K3 line source [K3 xxx] — adjustable horizontal directivity down to 29 Hz (KS21) K3 line source + or 25 Hz (KS28) [K3 xxx] [xxxx_60] subwoofers...

  • Page 37: Kara Ii

    Variable Curvature WST systems presets Kara II Kara II and Kara IIi are different versions of the same enclosure. They share the same factory presets and recommended loudspeaker congurations. SB18 and SB18 IIi are different versions of the same enclosure. They share the same factory presets and recommended loudspeaker congurations.
  • Page 38 Variable Curvature WST systems presets Routing, gain, delay, polarity and mute parameters can be modied by the user. Preset Guide owner's manual (EN) version 16.0...

  • Page 39: Kara

    Variable Curvature WST systems presets Kara Kara and Karai are different versions of the same enclosure. They share the same factory presets and recommended loudspeaker congurations. preset(s) loudspeaker acoustic properties Kara KS28, SB28, conguration SB18 or KS21* line source [KARA] —...

  • Page 40: Kiva Ii

    Variable Curvature WST systems presets Kiva II preset(s) loudspeaker acoustic properties conguration Kiva II SB15m* SB18* line source [KIVA II] — 70 Hz - 20 kHz down to 32 line source + Hz (SB18) / [KIVA II] [SB15_100] [SB18_60] 40 Hz(SB15m) coupled subwoofer reinforced LF contour 70 Hz - 20 kHz...

  • Page 41: Kiva Sb15M

    Variable Curvature WST systems presets Kiva SB15m preset(s) loudspeaker acoustic properties conguration Kiva SB15m* line source [KIVA] — 80 Hz - 20 kHz line source + [KIVA_SB15] down to 40 Hz coupled subwoofer reinforced LF contour [KIVA] [SB15_100] [KIVA_FI] 80 Hz - 20 kHz single or pair of enclosures —...

  • Page 42: Kiva Kilo

    Variable Curvature WST systems presets Kiva Kilo preset(s) loudspeaker acoustic properties conguration Kiva Kilo SB18* line source [KIVA] — 80 Hz - 20 kHz line source + [KIVA_KILO] — down to 50 Hz coupled Kilo line source + down to 32 Hz coupled Kilo + [KIVA_KILO] [SB18_100]...
  • Page 43 Variable Curvature WST systems presets [KILO] outputs channels routing gain delay polarity mute OUT 1 IN A 0 dB 0 ms OUT 2 IN A 0 dB 0 ms OUT 3 IN A 0 dB 0 ms OUT 4 IN A 0 dB 0 ms Routing, gain, delay, polarity and mute parameters can be modied by the user.

  • Page 44: Kudo

    Variable Curvature WST systems presets Kudo preset(s) loudspeaker acoustic properties KS28 or SB28 conguration Kudo or SB18 * [KUDOxx_25] 35 Hz - 20 kHz line source [KUDOxx_40] — 40 Hz - 20 kHz [KUDOxx_60] 60 Hz - 20 kHz down to 25 Hz (KS28 and line source + SB28) or 32 Hz (SB18) [KUDOxx_40]...

  • Page 45: V-Dosc

    Variable Curvature WST systems presets V-DOSC preset(s) loudspeaker acoustic properties KS28 / SB28 conguration V-DOSC* dV-SUB / SB218 ** [V-DOSC_LO] line source — 40 Hz - 20 kHz or [V-DOSC_HI] line source + down to 35 Hz [V-DOSC_xx _X] [dV-S_X] —...
  • Page 46 Variable Curvature WST systems presets [dV_xx_100] loudspeaker elements outputs channels routing gain delay polarity mute OUT 1 IN A 0 dB 0 ms OUT 2 OUT 3 IN A 0 dB 0 ms OUT 4 Routing, gain, delay, polarity and mute parameters can be modied by the user. Preset Guide owner's manual (EN) version 16.0...

  • Page 47: Dv-Dosc

    Variable Curvature WST systems presets dV-DOSC preset(s) loudspeaker KS28, SB218, acoustic properties conguration dV-DOSC* dV-SUB SB28, SB18 or SB118** line source [dV_LO] or [dV_HI] — 65 Hz - 20 kHz line source + [dV_dV-S_xx] down to 35 Hz — coupled dV-SUB reinforced LF contour [dV_xx_100] [dV-S_100]...
  • Page 48 Variable Curvature WST systems presets [dV_dV-S_HI], [dV_dV-S_HI60], [dV_dV-S_LO] and [dV_dV-S_LO60] loudspeaker elements outputs channels routing gain delay polarity mute dV-SUB OUT 1 IN A 0 dB 0 ms dV-SUB OUT 2 dV-DOSC LF OUT 3 IN B 0 dB 0 ms dV-DOSC HF OUT 4 [dV_dV-S_xx] are hybrid presets combining [dV_LO_100] or [dV_HI_100] with [dV-S_100], pre-alignment delay...

  • Page 49: Constant Curvature Wst Systems Presets

    Constant Curvature WST systems presets Constant Curvature WST systems presets The factory presets dedicated to constant curvature WST line sources are optimized for medium throw applications. In the following sections, tables describe the loudspeaker congurations and the factory presets for each system. Discriminant acoustic properties of each loudspeaker conguration are given, such as -10 dB bandwidth or LF limit, or frequency response contour.

  • Page 50: A10 Wide/Focus

    Constant Curvature WST systems presets A10 Wide/Focus A10 Wide/Focus and A10i Wide/Focus are different versions of the same enclosures. They share the same factory presets and recommended loudspeaker congurations. KS21 and KS21i are different versions of the same enclosure. They share the same factory presets and recommended loudspeaker congurations.

  • Page 51: A15 Wide/Focus

    Constant Curvature WST systems presets A15 Wide/Focus A15 Wide/Focus and A15i Wide/Focus are different versions of the same enclosures. They share the same factory presets and recommended loudspeaker congurations. KS21 and KS21i are different versions of the same enclosure. They share the same factory presets and recommended loudspeaker congurations.

  • Page 52: Arcs Ii

    Constant Curvature WST systems presets ARCS II preset(s) loudspeaker acoustic properties conguration ARCS II KS28 or SB28* line source [ARCS II] — 50 Hz - 20 kHz down to 25 Hz line source + subwoofer [ARCS II] [xx28_60] reinforced LF contour * with subwoofers as a cardioid array, use [xx28_60_C] or [xx28_60_Cx] [ARCS II] loudspeaker elements...

  • Page 53: Arcs

    Constant Curvature WST systems presets ARCS preset(s) loudspeaker acoustic properties SB18/SB118 or conguration ARCS* KS28/SB28/SB218** line source [ARCS_LO] or [ARCS_HI] — 50 Hz - 20 kHz down to line source + [ARCS_xx_60] [xxxx_60] 32 Hz (SB18/SB118) or subwoofer 25 Hz (KS28 / line source + SB28 / SB218) [ARCS_xx_100]...

  • Page 54: Colinear Systems Presets

    Colinear systems presets Colinear systems presets The factory presets dedicated to colinear sources are optimized for medium throw applications. In the following sections, tables describe the loudspeaker congurations and the factory presets for each system. Discriminant acoustic properties of each loudspeaker conguration are given, such as -10 dB bandwidth or LF limit, or frequency response contour.
  • Page 55 Colinear systems presets [SYVA SUB_100] polarity is reversed to optimize Syva Sub acoustic summation with Syva/Syva Low. Do not use [SYVA SUB_200] with Syva. [SYVA SUB_200] is optimized for use with the [X4] preset. Refer to (p.56). Routing, gain, delay, polarity and mute parameters can be modied by the user. Preset Guide owner's manual (EN) version 16.0...

  • Page 56: Coaxial Loudspeaker Enclosures Presets

    Coaxial loudspeaker enclosures presets Coaxial loudspeaker enclosures presets The factory presets dedicated to coaxial enclosures are optimized for short throw applications. In the following sections, tables describe the loudspeaker congurations and the factory presets for each system. Discriminant acoustic properties of each loudspeaker conguration are given, such as -10 dB bandwidth or LF limit, or frequency response contour.

  • Page 57: 5Xt

    Coaxial loudspeaker enclosures presets 5XT is a passive coaxial loudspeaker enclosure. preset(s) loudspeaker acoustic properties conguration SB15m* [5XT] — 95 Hz - 20 kHz down to 40 Hz 5XT + SB15m [5XT] [SB15_100] reinforced LF contour * with subwoofers as a cardioid array, use [SB15_100_C] or [SB15_100_Cx] [5XT] outputs channels...
  • Page 58 Coaxial loudspeaker enclosures presets X8 is a passive coaxial loudspeaker enclosure. preset(s) loudspeaker acoustic properties conguration SB15m* [X8] — 60 Hz - 20 kHz 55 Hz - 20 kHz [X8_MO] — low latency down to 40 Hz [X8] reinforced LF contour X8 + SB15m [SB15_100] down to 40 Hz...

  • Page 59: X12

    Coaxial loudspeaker enclosures presets X12 is a passive coaxial loudspeaker enclosure. preset(s) loudspeaker acoustic properties conguration SB15m/SB18/KS21* [X12] — 59 Hz - 20 kHz 57 Hz - 20 kHz [X12_MO] — low latency down to 40 Hz (SB15m) or 32 Hz (SB18) [X12] reinforced LF contour X12 + subwoofer...

  • Page 60: X15 Hiq

    Coaxial loudspeaker enclosures presets X15 HiQ X15 HiQ is an active coaxial loudspeaker enclosure. preset(s) loudspeaker acoustic properties conguration X15 HiQ SB18/KS21* [X15] — 55 Hz - 20 kHz 52 Hz - 20 kHz X15 HiQ [X15_MO] — low latency down to 32 Hz [X15] reinforced LF contour...

  • Page 61: 8Xt, 12Xtp, Mtd108A, Mtd112B And Mtd115Bp

    Coaxial loudspeaker enclosures presets 8XT, 12XTP, MTD108a, MTD112b and MTD115bP 8XT, 12XTP, MTD108a, MTD112b and MTD115bP are passive coaxial loudspeaker enclosures. Preset names passive coaxial loudspeaker enclosure preset [8XT_xx] 12XTP (in passive mode) [12XTP_xx] MTD108a [108a_xx] MTD112b [112b_xx] MTD115b (in passive mode) [115bP_xx] preset(s) loudspeaker...

  • Page 62: 12Xta, 115Xt, 115Xt Hiq And Mtd115Ba

    Coaxial loudspeaker enclosures presets 12XTA, 115XT, 115XT HiQ and MTD115bA 12XTA, 115XT, 115XT HiQ and MTD115bA are active coaxial loudspeaker enclosures. Preset names active coaxial loudspeaker enclosure preset 12XT (in active mode) [12XTA_xx] 115XT HiQ [HiQ_xx] MTD115b (in active mode) [115bA_xx] 115XT [115XT_xx]...

  • Page 63: Subwoofer Loudspeaker Enclosures Presets

    Subwoofer loudspeaker enclosures presets Subwoofer loudspeaker enclosures presets In this section, tables describe the loudspeaker congurations for L-Acoustics versatile subwoofers, and the corresponding factory presets. Discriminant acoustic properties of each loudspeaker conguration are given, such as -10 dB bandwidth or LF limit, or directivity specicity.
  • Page 64 Subwoofer loudspeaker enclosures presets subwoofer presets optimal compatibility [SYVA SUB_200] acoustic properties loudspeaker conguration preset(s) down to: 25 Hz (KS28 / SB28 / SB218), 27 Hz (Syva Low+Syva Sub), standard [xxxx_60] or [xxxx_100] 29 Hz (KS21), 32 Hz (SB18 / SB118), 40 Hz (SB15m, Syva Low) down to: 25 Hz (KS28 / SB28),...
  • Page 65 Subwoofer loudspeaker enclosures presets [xxxx_60_C], [xxxx_100_C], [xxxx_60_Cx], or [xxxx_100_Cx] loudspeaker elements outputs channels routing gain delay polarity mute OUT 1 IN A 0 dB 0 ms OUT 2 OUT 3 OUT 4 Routing, gain, delay, polarity and mute parameters can be modied by the user. Preset Guide owner's manual (EN) version 16.0...

  • Page 66: Pre-Alignment Delay Values

    The geometric delay is calculated from the path difference between a reference listening point and the center of each system. Laser rangenders ™ The L-Acoustics Tech Toolcase includes two laser devices that can be used for geometric measurements: TruPulse ™ 200 (trademark of Laser Technology, Inc.) and Leica DISTO D3 (trademark Leica Geosystems).

  • Page 67: Variable Curvature Wst Systems

    Pre-alignment delay values Variable curvature WST systems K1 + K1-SB presets pre-alignment delay values and polarity settings [K1] + [K1SB_X] K1 = 0 ms K1-SB = 0 ms [K1] + [K1SB_60] K1 = 6 ms K1-SB = 0 ms K1 + SB28 presets pre-alignment delay values and polarity settings [K1] + [SB28_60]...
  • Page 68 Pre-alignment delay values K1 + K1-SB + KS28 presets pre-alignment delay values and polarity settings [K1] + [K1SB_X] + [KS28_60] K1 = 0 ms K1-SB = 0 ms KS28 = 0 ms [K1] + [K1SB_X] + [KS28_60_C] K1 = 5.5 ms K1-SB = 5.5 ms KS28 = 0 ms [K1] + [K1SB_X] + [KS28_60_Cx]...
  • Page 69 Pre-alignment delay values K2 + K1-SB + SB28 presets pre-alignment delay values and polarity settings [K2] + [K1SB_X K2] + [SB28_60] K2 = 0 ms K1-SB = 0 ms SB28 = 0 ms [K2] + [K1SB_X K2] + [SB28_60_C] K2 = 5.5 ms K1-SB = 5.5 ms SB28 = 0 ms [K2] + [K1SB_X K2] + [SB28_60_Cx]...
  • Page 70 Pre-alignment delay values Kudo + SB118 presets pre-alignment delay values and polarity settings [KUDOxx_60] + [SB118_60] Kudo = 0 ms SB118 = 3.5 ms [KUDOxx_60] + [SB118_60_C] Kudo = 2 ms SB118 = 0 ms Kudo + SB18 presets pre-alignment delay values and polarity settings [KUDOxx_60] + [SB18_60] Kudo = 0 ms SB18 = 3.9 ms...
  • Page 71 Pre-alignment delay values Kara + SB18 presets pre-alignment delay values and polarity settings [KARA] + [SB18_100] Kara = 0 ms SB18 = 0 ms [KARA_FI] + [SB18_100] Kara = 3 ms SB18 = 0 ms [KARA] + [SB18_100_C] Kara = 5.5 ms SB18 = 0 ms [KARA] + [SB18_100_Cx] Kara = 4 ms...
  • Page 72 Pre-alignment delay values Kara + KS21 presets pre-alignment delay values and polarity settings [KARA] + [KS21_60] Kara = 0.5 ms KS21 = 0 ms [KARA] + [KS21_60_C] Kara = 6 ms KS21 = 0 ms [KARA] + [KS21_60_Cx] Kara = 5.5 ms KS21 = 0 ms [KARA] + [KS21_100] Kara = 0 ms...
  • Page 73 Pre-alignment delay values Kara + KS28 presets pre-alignment delay values and polarity settings [KARA] + [KS28_100] Kara = 0 ms KS28 = 1 ms [KARA] + [KS28_100_C] Kara = 4.5 ms KS28 = 0 ms [KARA] + [KS28_100_Cx] Kara = 7.5 ms KS28 = 0 ms [KARA] + [KS28_60] Kara = 0 ms...
  • Page 74 Pre-alignment delay values Kara + KS21 + KS28 presets pre-alignment delay values and polarity settings [KARA] + [KS21_100] + [KS28_60] Kara = 0 ms KS21 = 0 ms KS28 = 5.5 ms [KARA] + [KS21_100] + Kara = 0 ms KS21 = 0.5 ms KS28 = 0 ms [KS28_60_C]...
  • Page 75 Pre-alignment delay values Kara II + KS21 presets pre-alignment delay values and polarity settings [KARA II] + [KS21_60] Kara II = 0.5 ms KS21 = 0 ms [KARA II] + [KS21_60_C] Kara II = 6 ms KS21 = 0 ms [KARA II] + [KS21_60_Cx] Kara II = 5.5 ms KS21 = 0 ms...
  • Page 76 Pre-alignment delay values Kara II + KS28 presets pre-alignment delay values and polarity settings [KARA II] + [KS28_100] Kara II = 0 ms KS28 = 1 ms [KARA II] + [KS28_100_C] Kara II = 4.5 ms KS28 = 0 ms [KARA II] + [KS28_100_Cx] Kara II = 7.5 ms KS28 = 0 ms...
  • Page 77 Pre-alignment delay values Kara II + KS21 + KS28 presets pre-alignment delay values and polarity settings [KARA II] + [KS21_100] + [KS28_60] Kara II = 0 ms KS21 = 0 ms KS28 = 5.5 ms [KARA II] + [KS21_100] + Kara II = 0 ms KS21 = 0.5 ms KS28 = 0 ms...
  • Page 78 Pre-alignment delay values Kiva II + SB15m presets pre-alignment delay values and polarity settings [KIVA II] + [SB15_100] Kiva II = 0 ms SB15m = 1 ms [KIVA II] + [SB15_100_C] Kiva II = 2.5 ms SB15m = 0 ms [KIVA II] + [SB15_100_Cx] Kiva II = 4.5 ms SB15m = 0 ms...
  • Page 79 Pre-alignment delay values V-DOSC + KS28 presets pre-alignment delay values and polarity settings [V-DOSC_xx_60] + [KS28_60] V-DOSC = 0 ms KS28 = 3.8 ms [V-DOSC_xx_60] + [KS28_60_C] V-DOSC = 1.7 ms KS28 = 0 ms V-DOSC + dV-SUB presets pre-alignment delay values and polarity settings [V-DOSC_xx_X] + [dV-S_X] V-DOSC = 0 ms dV-SUB = 0.2 ms...
  • Page 80 Pre-alignment delay values dV-DOSC + SB118 presets pre-alignment delay values and polarity settings [dV_xx_100] + [SB118_100] dV = 2.7 ms SB118 = 0 ms [dV_xx_100] + [SB118_100_C] dV = 8.3 ms SB118 = 0 ms dV-DOSC + SB218 presets pre-alignment delay values and polarity settings [dV_xx_100] + [SB218_100] dV = 0.8 ms SB218 = 0 ms...

  • Page 81: Constant Curvature Wst Systems

    Pre-alignment delay values dV-DOSC + dV-SUB + SB218 presets pre-alignment delay values and polarity settings [dV_xx_100] + [dV-S_60_100] + dV = 0 ms dV-SUB = 0.75 ms SB218 = 4.5 ms [SB218_60] dV-DOSC + dV-SUB + SB18 presets pre-alignment delay values and polarity settings [dV_xx_100] + [dV-S_60_100] + dV = 0 ms dV-SUB = 0.75 ms...
  • Page 82 Pre-alignment delay values ARCS + SB18 presets pre-alignment delay values and polarity settings [ARCS_xx_60] + [SB18_60] ARCS = 0.4 ms SB18 = 0 ms [ARCS_xx_60] + [SB18_60_C] ARCS = 5.9 ms SB18 = 0 ms [ARCS_xx_100] + [SB18_100] ARCS = 1.1 ms SB18 = 0 ms [ARCS_xx_100] + [SB18_100_C] ARCS = 6.6 ms...
  • Page 83 Pre-alignment delay values ARCS II + SB28 presets pre-alignment delay values and polarity settings [ARCS_II] + [SB28_60] ARCS II = 0 ms SB28 = 2 ms [ARCS_II] + [SB28_60_C] ARCS II = 3.5 ms SB28 = 0 ms [ARCS_II] + [SB28_60_Cx] ARCS II = 7.5 ms SB28 = 0 ms ARCS II + KS28...

  • Page 84: Colinear Systems

    Pre-alignment delay values Colinear systems No pre-alignment delay values are required for the Syva system. Coaxial loudspeaker enclosures [xx_MO] presets for the X series use the amplied controller low latency operating mode. When used along with subwoofers, it is recommended to use the subwoofers in low latency operating mode. To achieve this, create custom presets combining low latency channel sets and subwoofer channel sets.
  • Page 85 Pre-alignment delay values X8 + SB15m presets pre-alignment delay values and polarity settings [X8] + [SB15_100] X8 = 2 ms SB15m = 0 ms [X8_MO] + [SB15_100] X8 = 0 ms SB15m = 3 ms X4i + Syva Sub presets pre-alignment delay values and polarity settings [X4] + [SYVA SUB_200] X4i = 0 ms...
  • Page 86 Pre-alignment delay values Active 12XT + SB118 presets pre-alignment delay values and polarity settings [12XTA_FI_100] + [SB118_100] 12XTA = 2.6 ms SB118 = 0 ms [12XTA_FR_100] + [SB118_100] 12XTA = 2.6 ms SB118 = 0 ms [12XTA_MO_100] + [SB118_100] 12XTA = 2.5 ms SB118 = 0 ms Active 12XT + SB18 presets...
  • Page 87 Pre-alignment delay values 8XT + SB18 presets pre-alignment delay values and polarity settings [8XT_FI_100] + [SB18_100] 8XT = 2.8 ms SB18 = 0 ms [8XT_FR_100] + [SB18_100] 8XT = 2.9 ms SB18 = 0 ms [8XT_MO_100] + [SB18_100] 8XT = 2.7 ms SB18 = 0 ms 5XT + SB15m presets...
  • Page 88 Pre-alignment delay values Active MTD115 + SB18 presets pre-alignment delay values and polarity settings [115bA_FI_100] + [SB18_100] 115bA = 2.1 ms SB18 = 0 ms [115bA_FR_100] + [SB18_100] 115bA = 2 ms SB18 = 0 ms [115bA_MO_100] + [SB18_100] 115bA = 2.4 ms SB18 = 0 ms Passive MTD115 + SB118 presets...
  • Page 89 Pre-alignment delay values MTD112b + SB118 presets pre-alignment delay values and polarity settings [112b_FI_100] + [SB118_100] 112b = 2.4 ms SB118 = 0 ms [112b_FR_100] + [SB118_100] 112b = 2.5 ms SB118 = 0 ms [112b_MO_100] + [SB118_100] 112b = 3.0 ms SB118 = 0 ms MTD112b + SB18 presets...

  • Page 90: Impedance Load

    Impedance load Impedance load Most enclosures have a nominal impedance of 8 Ω. The exceptions are: • 16 Ω: • K2 (HF section), Kiva II, V-DOSC (HF section), 5XT, X4i • 4 Ω: • SB28, KS28, Syva Low, K1-SB total impedance number of enclosures/sections in parallel Nominal 16 Ω...

  • Page 91: Enclosure Drive Capacity Per AmpliEd Controller

    Risks of output mute, global attenuation, or loss of audio quality. Do not exceed the maximum number of connected enclosures per channel and in total. Driving more enclosures than indicated can trigger the amplied controller protection systems. LA2Xi LA4X LA12X...
  • Page 92 For passive loudspeakers, the value corresponds to the number of enclosures in parallel on the output. For active loudspeakers, the value corresponds to the number of sections in parallel on the output. Maximum SPL is reduced in SE operating mode for all systems except X4i and 5XT. Refer to the LA2Xi Owner's Manual for more information.

  • Page 93: Enclosure Drive Capacity Per La4

    Enclosure drive capacity per amplied controller Enclosure drive capacity per LA4 Risks of output mute, global attenuation, or loss of audio quality. Do not exceed the maximum number of connected enclosures per channel and in total. Driving more enclosures than indicated can trigger the amplied controller protection systems. per output / total coaxial enclosures...
  • Page 94 L-Acoustics 13 rue Levacher Cintrat - 91460 Marcoussis - France +33 1 69 63 69 63 - info@l-acoustics.com www.l-acoustics.com...
