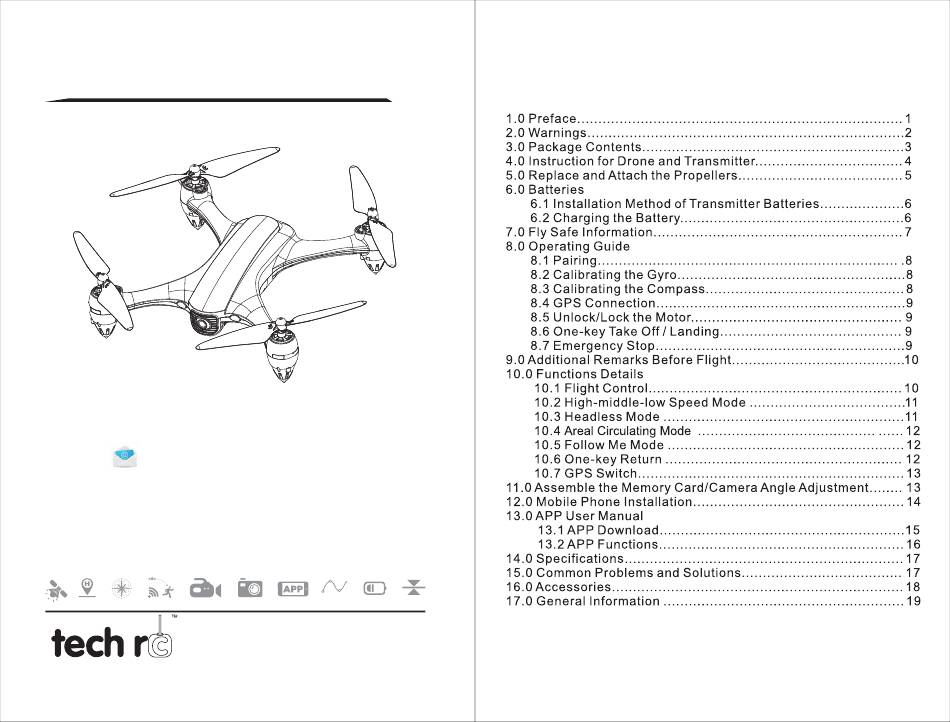

- Page 1 explorer Table of Contents USA@TECHRC.NET(America) EU@TECHRC.NET(Europe) JP@TECHRC.NET(Japan) One key return Headless mode Follow me Video Picture Multi-point Flight Low power return Altitude Hold TR016W www.techrc.net...
-
Page 2: Important Statement
In order to make sure that it meets the requirement of the electromagnetic environment of the aviation radio 4. Neither tech rc nor any distributors or agents accept any responsibility for loss, injury or damage caused station, flying within the scope of 10 kilometers on each side by taking the airport runway center line as the by incorrect operation of the drone. -
Page 3: Package Contents
Package Contents Instruction for Drone and Transmitter 1.Drone Propeller Propeller Clockwise Counterclockwise drone body Transmitter TR016W DRONE with Camera Camera LED Light LED Light Battery Battery release key Propeller X 8 Charging Cable LED Light LED Light Power switch Screw X16 2. -
Page 4: Charging The Battery
Installation Method of Transmitter Batteries Use a screwdriver to open the battery cover in anticlockwise rotation, install batteries to the battery box, lid the battery cover, and lock the screw on battery cover. Video Photo One-key take off/ One-key return One-key landing High-middle-low speed switch... - Page 5 Operating Guide A. Pairing Fly Safe 1. Insert the battery into the drone, and then press the Power Switch to turn on the drone. All the LED indicator Lights on the drone begin to flash quickly. Fly in Open Areas Strong GPS Signal Maintain Line Fly Below...
-
Page 6: Flight Control
D. GPS Connection Additional Remarks before Flight 1. Place the drone on the flat and dry surface and in a unobstructed and lit area. 2. Waiting for the GPS signal to be connected automatically, this process can take about 30 to 80 seconds. 1. - Page 7 Attentions: High-middle-low Speed Mode Due to collision or long accumulated time of flight under headless mode, deviation may occur and interfere The drone has three levels of speed:high-middle-low. Press down the throttle joystick on the transmitter, and flight control, in this case, you should recalibrate the drone. transmitter will give out di, didi and dididi, representing low, middle and high modes respectively(Default is low speed mode.
-
Page 8: Gps Switch
2. Camera of drone can be adjusted manually with the amplitude of 0°-35°; NOTICE: 1.This function only can work in GPS mode. 2.The one-key return function brings the drone back to the last recorded Home Point.But there Notice: As adjusting the lens, do not contact with the lens on the camera. Otherwise, it will affect is a distance deviation of 1~2 meters. -
Page 9: App Functions
1, Install app "TECH RC GPS" to mobile device. Please scan following QR code to download app "TECH RC GPS" and install it, or search it in Apple Appstore or Google Play through the app name "TECH RC GPS", then download and install it. -
Page 10: Specifications
Accessories(additional purchase) Specifications: Available accessories are shown as follows. For convenient purchasing of customers, every part is listed particularly. Customers can purchase accessories through local dealers. ● Drone MODEL：TR016W Weight (Including Battery) ：248g Flight Time：15-18 minutes WIFI Distance： 300-400m（Outdoor And Unobstructed） Motor Model：Coreless motor 1020 Hovering：Enabled Operating Temperature Range ：32°... -
Page 11: General Information
For more further technical support, please do not hesitate to contact us via Email. USA@TECHRC.NET(America) EU@TECHRC.NET(Europe) JP@TECHRC.NET(Japan) General Information FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
