Summary of Contents for tech rc TR006W

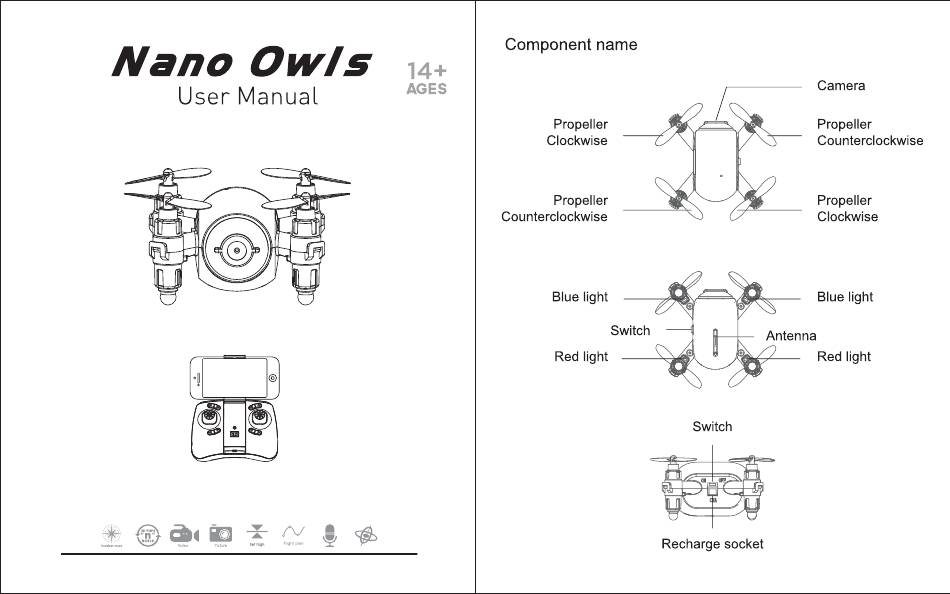

- Page 1 1. Quadcopter TR006W...
- Page 2 (Keep pressing the 2. Transmitter button for 2 seconds) Forward/backward,left/right flip joystick (Keep pressing the button for 2 seconds) Forward/backward,left/right flip joystick low/medium/high speed Flip switch button Low/medium/high Flip speed switch (1) This product is not a toy but a piece of complicated equipment which is integrated with professional knowledge by mechanic, electronic, air mechanics,high-frequency emission etc.
- Page 3 2.Precautions Transmitter assembly (1) Keep away from obstacles and crowds. This speed and status of a flying RC drone is uncertain and it may cause potential danger.The user must keep away from crowds,tall buildings, power lines etc.when operating a flying RC drone, do not fly a RC drone in wet or storm/thunder conditions.
- Page 4 1.Switch on the quadcopter,then put the quadcopter on the flat ground, when the state of the drone's light changed from quick flashing to slow flashing state, it means the drone enter into the code-matching state. may cause damaging or explosion. transmitter 3.
- Page 5 full throttle,then pull back to the bottom. Push the left-right joystick of transmitter to left corner. After fuselage recover to normally, it means calibration finished. Emergency stop function Emergency stop: When emergency situation happens, and need to stop flying at once, then you can press down the two buttons simultaneously as below picture for Emergency Stop, the motors will stop working at once and the drone will drop down directly.
- Page 6 1.When the left control stick is pushed upward or downward, the quadcopter will ascend or descend respectively. 2.When the left control stick is pushed to the left or the right,the quadcopter will rotate to the left or to the right respectively. 5.
- Page 7 4 .When the right control stick is pushed upwards or downwards, 7.If the drone drifts forward or backward while hovering without the quadcopter will pitch forward or backward respectively. operator input,adjust the pitch trim in the opposite direction until hover is achieved. 5.If the quadcopter rotates while hovering without operator input, adjust the yaw trim in the opposite direction until rotation stops.
- Page 8 6.If the drone drifts left or right while hovering without operator input, 3.When the right control stick is pushed left or right,the quadcopter adjust the roll trim in the opposite direction until hover is achieved. will roll to the left or right respectively. 4 .When the left control stick is pushed upwards or downwards, the 7.If the drone drifts forward or backward while hovering without quadcopter will pitch forward or backward respectively.
- Page 9 transmitter transmitter flip flips medium medium flips flip Flip mode flip If you press down the right control stick once again Flip and the "di di di" beeping will stop and the flip mode will be cancelled. While in flip mode move the right control stick to its utmost in any direction to perform a flip in the corresponding direction.After a flip has been performed a flip mode will turn off automatically.
- Page 10 Attentions 1. When you are flying under the headless mode,please confirm the controlling direction of the quadcopter first and then conduct the calibration.The operator should face the same direction as the front of the quadcopter faced during calibration.During the process of controlling, please do not change the position so as not to affect the flying control of the quadcopter.
- Page 11 2. Replace the blade. 3. Now open the "tech rc"App and start the program with the "VGA" button. 2. Deformation of the blade. 4. This will open the live image of the camera. Photos (A) and videos (B) can only be created via the App and stored on your Smartphone/ Tablet.
- Page 12 TR006W-1 TR006W-2 TR006W-3 TR006W-4 TR006W-5 TR006W-6 TR006W-7 TR006W-8 TR006W-9 TR006W-10...
