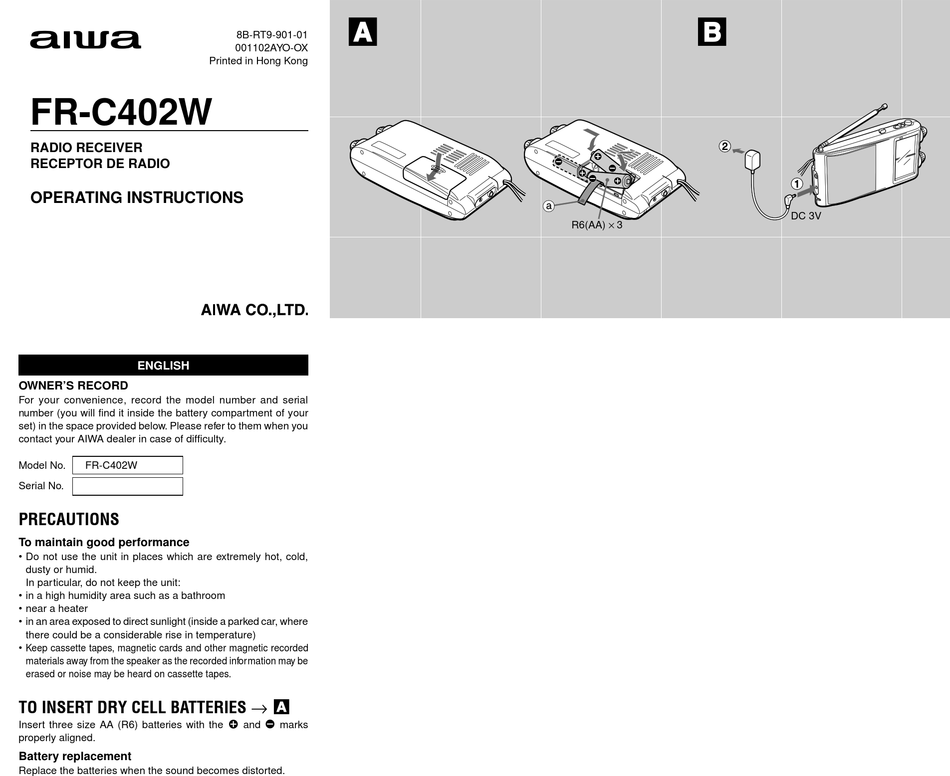

FR-C402W
RADIO RECEIVER
RECEPTOR DE RADIO

OPERATING INSTRUCTIONS

ENGLISH

OWNER'S RECORD

For your convenience, record the model number and serial
number (you will find it inside the battery compartment of your
set) in the space provided below. Please refer to them when you
contact your AIWA dealer in case of difficulty.
Model No.
FR-C402W
Serial No.

PRECAUTIONS

To maintain good performance
• Do not use the unit in places which are extremely hot, cold,
dusty or humid.
In particular, do not keep the unit:
• in a high humidity area such as a bathroom
• near a heater
• in an area exposed to direct sunlight (inside a parked car, where
there could be a considerable rise in temperature)
• Keep cassette tapes, magnetic cards and other magnetic recorded
materials away from the speaker as the recorded information may be
erased or noise may be heard on cassette tapes.

TO INSERT DRY CELL BATTERIES

Insert three size AA (R6) batteries with the 0 and 9 marks
properly aligned.
Battery replacement
Replace the batteries when the sound becomes distorted.
A
8B-RT9-901-01
001102AYO-OX
Printed in Hong Kong
A
B
R6(AA)
3
DC 3V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR-C402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aiwa FR-C402

  • Page 1: Operating Instructions

    For your convenience, record the model number and serial number (you will find it inside the battery compartment of your set) in the space provided below. Please refer to them when you contact your AIWA dealer in case of difficulty. Model No. FR-C402W Serial No.
  • Page 2 • If liquid leaks from the batteries, wipe thoroughly to remove. To use on AC house current Contact your nearest Aiwa service personnel and purchase the AC adaptor Aiwa AC-D302. Connect the AC adaptor. 1 to DC 3 V jack...
  • Page 3: Radio Reception

    TUNE ENGLISH RADIO RECEPTION 1 Press the POWER button to turn on the power. 2 Select a band. Set the BAND switch to FM/TV for TV 2 ch – 6 ch reception. Set the switch to WEATHER/TV for TV 7 ch – 13 ch reception. 3 Turn the TUNING control to tune in to a station.
  • Page 4: Specifications

    200 mW (EIAJ 8 ohms) Speaker Diameter 66 mm, 8 ohms Power source DC 4.5 V using three size AA (R6) batteries AC house current using AC adaptor Aiwa AC-D302 Maximum outside dimensions 160 (W) 81 (H) 40 (D) mm in.) Weight Approx.
