Graco HydroShield Instructions Manual page 7

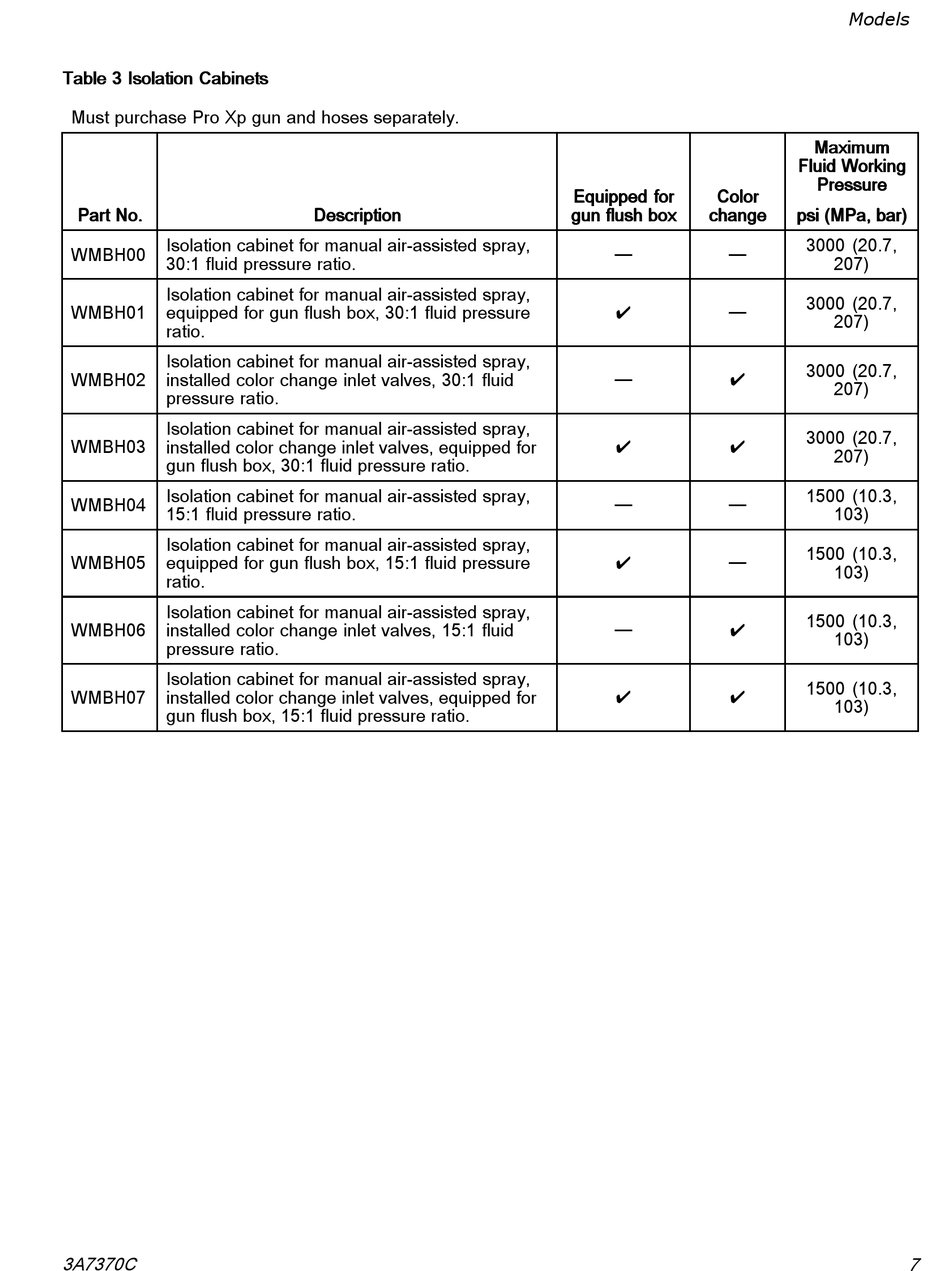

Table 3 3 3 Isolation Isolation Cabinets Cabinets
Table Table Isolation Cabinets
Must purchase Pro Xp gun and hoses separately.
Part No. No.
Part Part No.
Isolation cabinet for manual air-assisted spray,
WMBH00
30:1 fluid pressure ratio.
Isolation cabinet for manual air-assisted spray,
WMBH01 equipped for gun flush box, 30:1 fluid pressure
ratio.
Isolation cabinet for manual air-assisted spray,
WMBH02 installed color change inlet valves, 30:1 fluid
pressure ratio.
Isolation cabinet for manual air-assisted spray,
WMBH03 installed color change inlet valves, equipped for
gun flush box, 30:1 fluid pressure ratio.
Isolation cabinet for manual air-assisted spray,
WMBH04
15:1 fluid pressure ratio.
Isolation cabinet for manual air-assisted spray,
WMBH05 equipped for gun flush box, 15:1 fluid pressure
ratio.
Isolation cabinet for manual air-assisted spray,
WMBH06 installed color change inlet valves, 15:1 fluid
pressure ratio.
Isolation cabinet for manual air-assisted spray,
WMBH07 installed color change inlet valves, equipped for
gun flush box, 15:1 fluid pressure ratio.
3A7370C
Description
Description Description
Equipped Equipped for Equipped for for Color Color Color
gun flush flush box box change
gun gun flush box change change
— —
�
—
— �
� �
— —
� —
— �
� �
Models
Maximum Maximum Maximum
Fluid Fluid Working Fluid Working Working
Pressure
Pressure Pressure
psi (MPa, (MPa, bar) bar)
psi psi (MPa, bar)
3000 (20.7,
207)
3000 (20.7,
207)
3000 (20.7,
207)
3000 (20.7,
207)
1500 (10.3,
103)
1500 (10.3,
103)
1500 (10.3,
103)
1500 (10.3,
103)
7
