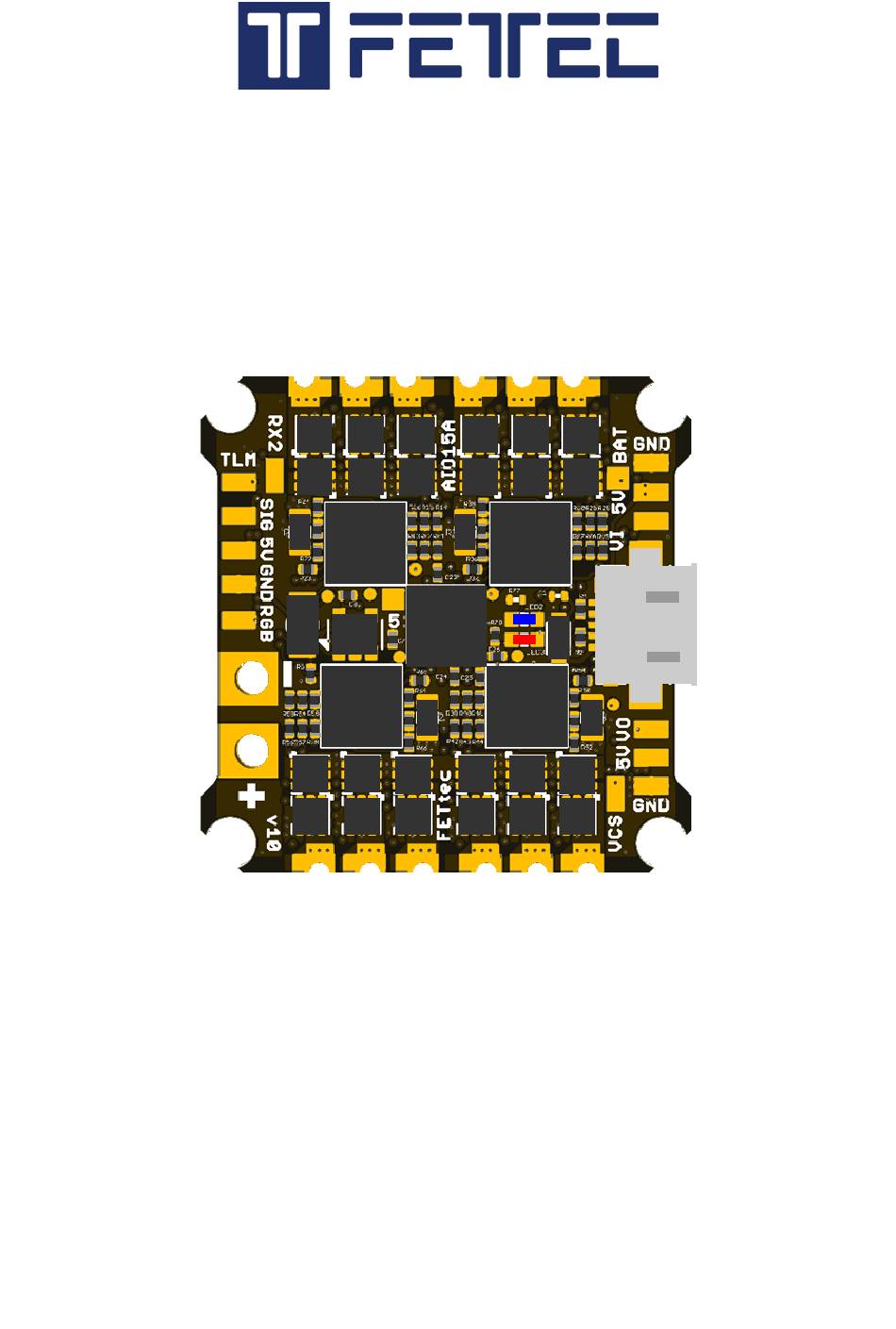

- Page 1 FETtec Mini AIO 15A Manual Page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction.............................3 Features............................3 Safety warning..........................3 Connection Diagram........................4 Top-/Bottom Layout........................4 Dimensions (in mm)........................5 FETtec Configurator........................5 FC firmware update:........................5 ESC firmware update:........................6 OSD firmware update:........................7 OSD Settings..........................8 Issues with the OSD........................9 Move elements in the OSD menu....................9 Page 2... -
Page 3: Introduction
◦ KISS GPS support + live map ◦ Custom graphic pilot logo ◦ Stick overlay ◦ Custom layout The FETtec Mini AIO 15A works with KISS/FETtec FC firmware version 1.3RC45Y or later ! Safety warning Remove propellers before flashing and configuration •... -
Page 4: Connection Diagram

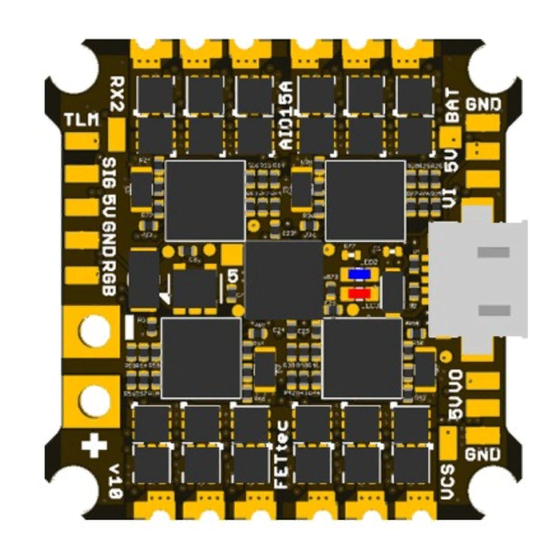

Connection Diagram Top-/Bottom Layout Page 4... -
Page 5: Dimensions (In Mm)
FETtec Configurator Please update the FETtec Mini AIO 15A before your first flight ! The FC, ESC and OSD of the FETtec Mini AIO 15V Board are flashable over the FETtec Configurator. The FETtec Configurator is available for download at https://github.com/FETtec. -
Page 6: Esc Firmware Update
FETtec F3 Nano-FC will be found. Use Remote Firmware and select the newest available firmware. Press “Flash selected” This will take some time, please wait. FC is flashed now! Settings can be made in the KISS GUI. Download: https://github.com/flyduino/kiss-gui/releases Reconnect USB after this step! -
Page 7: Osd Firmware Update
– Individual ESC ID (for use on onewire protocol) In the Telemetry page you can spin the motors, view and debug the motor telemetry. OSD firmware update: To update the OSD, connect to FETtec Configurator and flash the latest firmware via FC Passthrough. Page 7... -
Page 8: Osd Settings
OSD Settings All settings are to set directly in the OSD. To get in the menu move the sticks in the shown direction at the start: Throttle 50%, then move Yaw left, Pitch up Mode 1: Mode 2: In the menu: OSD menu: Page 8... -
Page 9: Issues With The Osd
OSD settings: Issues with the OSD 1. OSD SYNC → AUTO SYNC 2. in case of blurry lines play with LEFT/WITH values try to avoid WITH values above 400 3. make a PAL/NTSC layout reset Move elements in the OSD menu Choose LAYOUT →...
