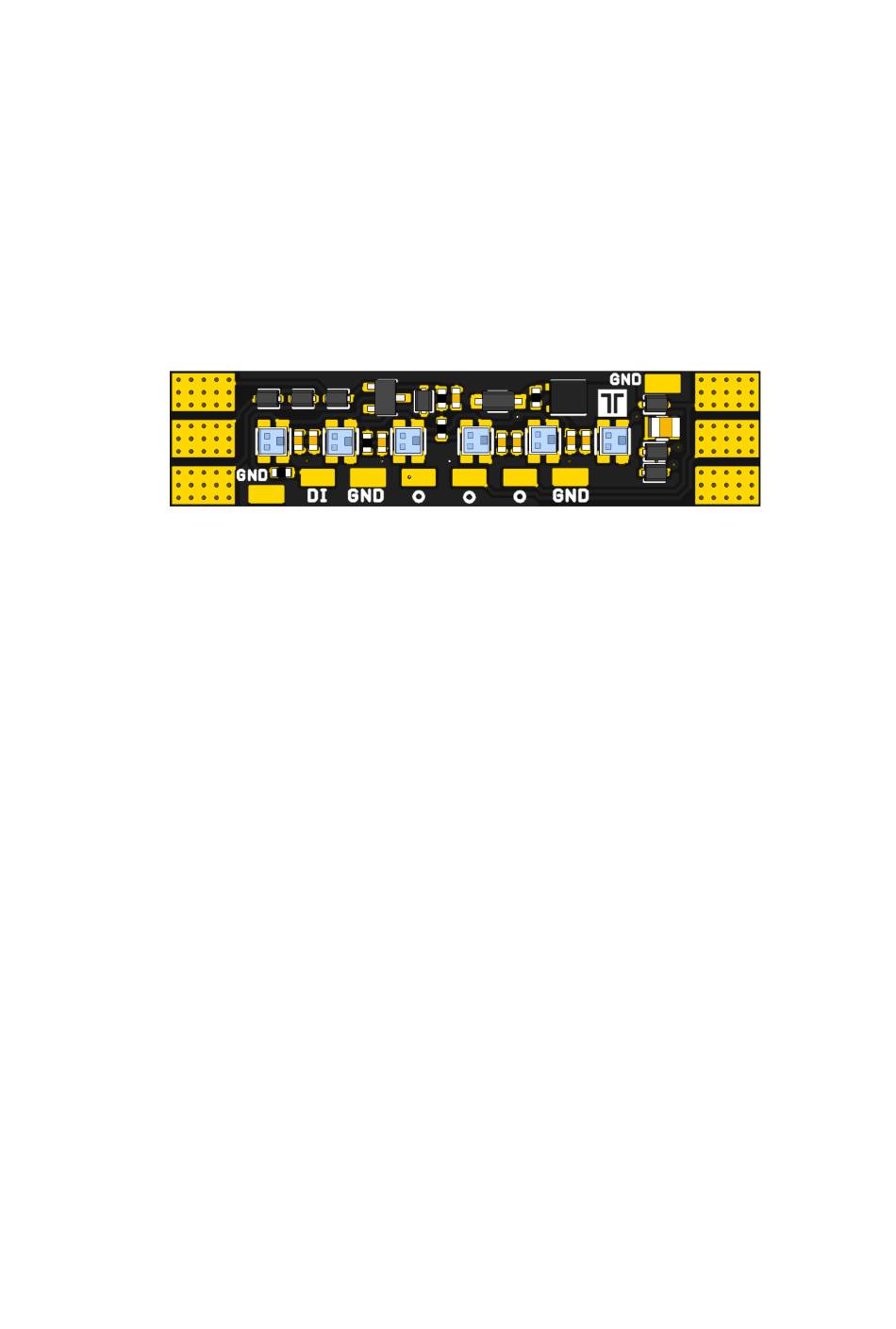

- Page 1 FETtec Race Wire 6 Manual Page 1...
- Page 2 Features:............................3 Dimension (in mm)........................3 Connection Diagrams........................4 FETtec ESC connection:......................4 Combination of two FETtec Race Wire 6:..................4 Alternative connection for use with ESC's that dont support FETtec Race Wire 6:....4 LED stick usage..........................5 Configuration..........................5 Set up with FETtec OSD.........................6 Page 2...
- Page 3 FETtec Configurator / KISS GUI, Transmitter and OSD • The FETtec Race Wire 6 does not need any voltage regulator or RGB LED connection. The color gets transmitted from the FETtec ESC over the three motor wires. The FETtec ESC receives the chosen color over Onewire or Dshot from the FETtec/KISS...
- Page 4 Connection Diagrams FETtec ESC connection: Combination of two FETtec Race Wire 6: Alternative connection for use with ESC's that dont support FETtec Race Wire 6: Page 4...
- Page 5 Configuration If nothing is configurated the FETtec Race Wire 6 light up in light blue (FETtec blue). Color can only be changed when motors are not running. After disarm the FETtec Race Wire 6 will be off for a second.
- Page 6 It is also possible to set up switches or knobs to change the colors and brightness over the transmitter Set up with FETtec OSD LED color can also be changed over the FETtec OSD Page 6...
