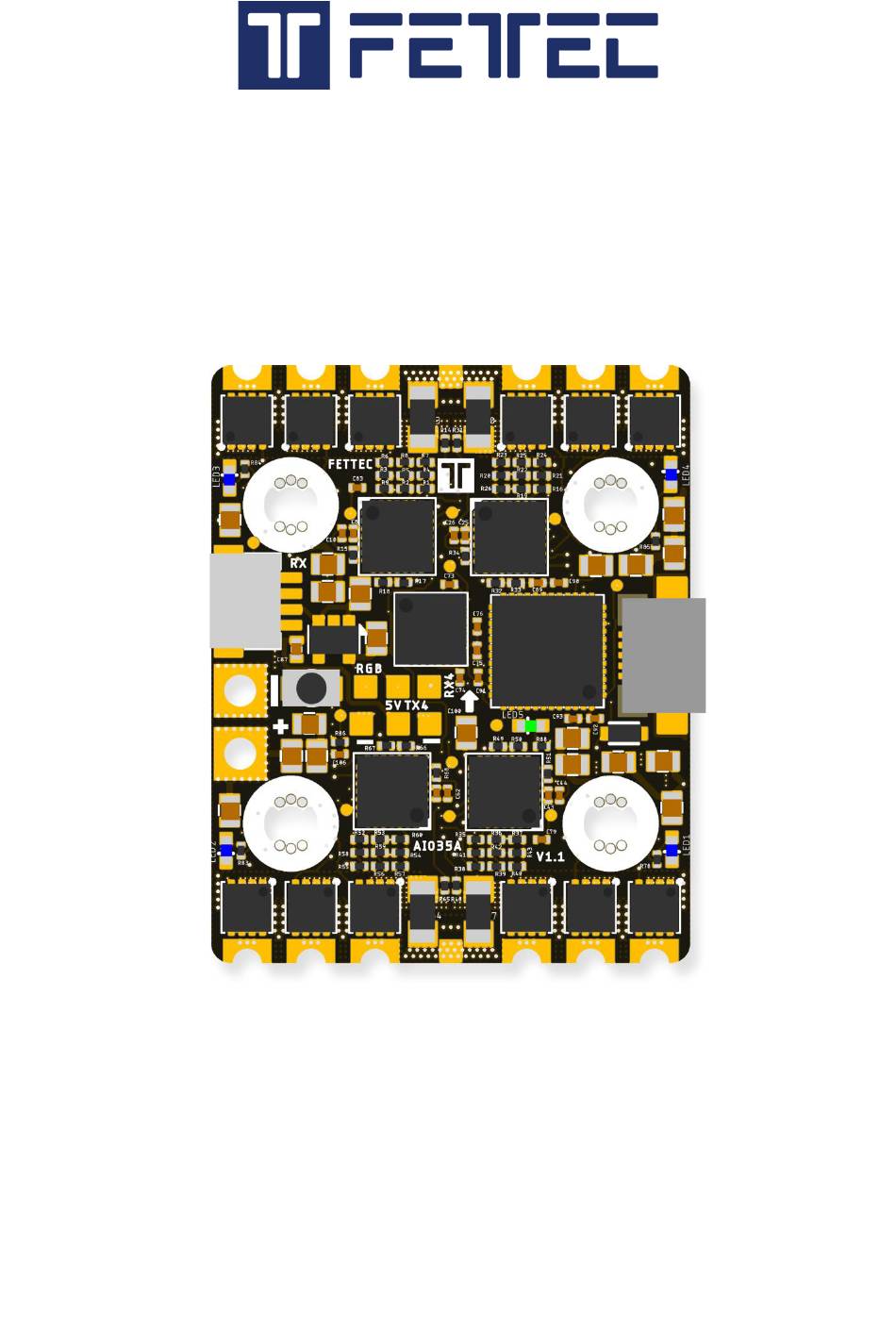

- Page 1 FETtec AIO 35A - N Manual Page 1...
-
Page 2: Table Of Contents
Introduction ..........................3 Features ............................3 Safety warning ..........................4 Recommended steps for installation of the FETtec AIO 35A - N ..........4 Connection Diagram ........................5 Connection Layout top ......................5 Connection Layout bottom ......................6 ..............................6 Configuration ..........................7 FC update (KISS) ........................ -
Page 3: Introduction
Introduction Thank you for purchasing the FETtec AIO 35A - N. Features • Latest STM32G4 Processor ◦ 170Mhz + Math accelerator ◦ MPU6000 • Supply voltage 12-25V (3S-6S Lipo voltage) • 2x dedicated onboard 5V BEC for VTX (max. 600mA each) ◦... -
Page 4: Safety Warning
Do not file the mounting holes as this may cause damage Recommended steps for installation of the FETtec AIO 35A - N • Connect to FETtec Configurator and update to the latest firmware (see firmware update and settings) • Install the AIO in your copter (see Connection diagrams for correct wiring and installation) •... -
Page 5: Connection Diagram
Connection Diagram Connection Layout top Receiver connector: • • • TLM: Telemetry signal to receiver • SIG.: Receiver signal to FC Acronym explanation: • Motor 1 - 4: pads for motor connection • GND: Reference Signal Ground • 3-6S - / +: Battery input voltage (12V-27V) •... -
Page 6: Connection Layout Bottom
Connection Layout bottom The 8 pin connector combines all necessary connections for analog or digital VTX and camera. It includes: • VCC (Lipo+) • GND for cam and VTX • Video in: Analog video signal from cam • Video out: Analog video to VTX •... -
Page 7: Configuration
Configuration The FETtec AIO 35A - N works with FETtec KISS firmware version 1.3RC47i or later ! The FC, ESC and OSD of the FETtec AIO 35A Board are flashable over the FETtec Configurator. Download the FETtec Configurator here: https://github.com/FETtec/Firmware/releases. -
Page 8: Fc Update And Settings (Fettec Alpha Fc Firmware)
FC update and settings (FETtec Alpha FC firmware) 1. Open FETtec Toolset https://gui.fettec.net and choose ALPHA Configurator. 2. Connect the FETtec FC via USB. 3. Open the ALPHA Configurator and select open port. Choose the serial port on which the FC shows up and press connect. - Page 9 5. “Select new firmware to flash”. We always recommend flashing the latest available firmware. 6. Confirm to flash FETtec ALPHA firmware by pressing “OK” Page 9...
- Page 10 7. FC firmware update is done! The FC needs a restart after that, therefore the com port is requested to be selected and connected again Now you can customize everything in the GUI according to your wishes. Please connect everything like described in the manual of the FC. The receiver signal will get auto detected (supported systems are Frsky Sbus+S-Port, CRSFv2 and CRSFv3 and Ghost).
-
Page 11: Get Back To Kiss
Get back to KISS If the FETtec Alpha FC firmware is flashed on your FC and you want to get back to KISS firmware, follow these steps: 1. Open FETtec Toolset https://gui.fettec.net/ 2. Connect the FETtec FC via USB. 3. Press the reset button once 4. - Page 12 7. Flashing to KISS FC firmware done. Page 12...
-
Page 13: Firmware Updates
Firmware updates For firmware updates it is the same procedure as flashing the FETtec Alpha FC firmware. Connect FC via open port and choose “Firmware”. Now you can flash the latest firmware update via “Select new firmware to flash” or choose “Flash local file”. -
Page 14: Settings
Settings You can set up the FC according to your wishes in the ALPHA Configurator. All functions are explained in the respective category. For more information and help use the FETtec Alpha FC firmware manual available at www.fettec.net/download Page 14... -
Page 15: Esc Update And Settings
ESC update and settings Choose KISS FC Passthrough and press connect. all devices should show up now. The Overview page allows to flash individual ESCs. The Setting page allows to adjust all available ESC parameter. - Reverse rotation direction - Slow start - 3D mode - PWM min &... - Page 16 In the Telemetry page you can spin the motors, view and debug the motor telemetry. Page 16...
-
Page 17: Osd
The FETtec AIO 35A - N has no analog onboard OSD but you can connect the FETtec OSD Board which is also available in our shop www.fettec.net For more information about settings read the FETtec OSD Board manual https://fettec.net/download/ Page 17... -
Page 18: Dimensions
Dimensions Maximum outside dimensions: 30 x 37,5mm Mounting hole arrangement: 20 x 20mm with M2 mounting hole (expandable to M3) Overall height: 7,9mm Highest part on each PCB side: 3,2mm Weight: 8,9 g Do not file the mounting holes as this may cause damage! Page 18...
