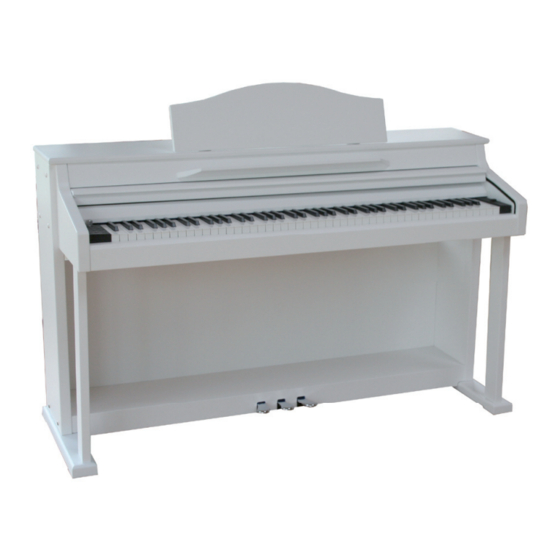

- Page 1 lavier 1 lüthner Montage- /Aufbauanleitung lavier 1 Made in Germany...
- Page 2 Please assemble the piano on a level floor. All parts must be assembled in the correct order. Use only the original parts (screws, brackets, etc.) Using the wrong parts or screws can cause damage to the Blüthner e-Klavier 1. For optimal setup, two people are required to assemble to Blüthner e-Klavier 1. It is recommended that you ensure all the assembly parts are accounted for and prepared in their proper quantity, as listed below, before beginning the assembly process.
- Page 3 Montage- /Aufbauanleitung lüthner lavier 1 1. Insert two (2) wood dowels, each 6x35 mm (Part. No. SPN 01627) into the pre- drilled holes in the bottom of the lower column. 2. Fasten the lower column to the base, inserting one (1) countersunk screw, 5 x 70 mm (Part.
- Page 4 Montage- /Aufbausanleitung lüthner lavier 1 4. Screw the two (2) pre-assembled side panels into the connecting base board with two socket head screws on each side, M6 x 50 mm (Black Cabinet: Part. No. VIT 00656, White Cabinet: Part. No. VIT 00657). Made in Germany lüthner lavier...
- Page 5 Montage- /Aufbauanleitung lüthner lavier 1 5. Screw the back panel between the side panels to the base board with six (6) countersunk screws, 4 x 30 mm (Black Cabinet Part. No. VIT 00587, White Cabinet: Part. No. VIT 00588). Made in Germany Seite 5 lavier lüthner...
- Page 6 Montage- /Aufbausanleitung lüthner lavier 1 6. Screw the metal corner brackets (Black Cabinet: Part. No. STF00200, White Cabinet: Part. No. STF00201) along the inside of the side panels with three (3) round head screws, 3,9 mm x 13, 5mm (Black Cabinet: Part. No. 250990018, White Cabinet Part.
- Page 7 Montage- /Aufbauanleitung lüthner lavier 1 8. Place the entire top piano case onto the wooden dowels atop the front columns, inserting the dowels into the dowel holes found along the underside of the piano case. 9. Screw the four (4) socket head screws, M6 x 50 mm (Black Cabinet: Part No. VIT 00656, White Cabinet: Part No.
- Page 8 Montage- /Aufbausanleitung lüthner lavier 1 10. Plug the pedal cable into the socket beneath the keybed. 11. Plug the power cord in… and you are ready to play! Made in Germany lüthner lavier Seite 8...
