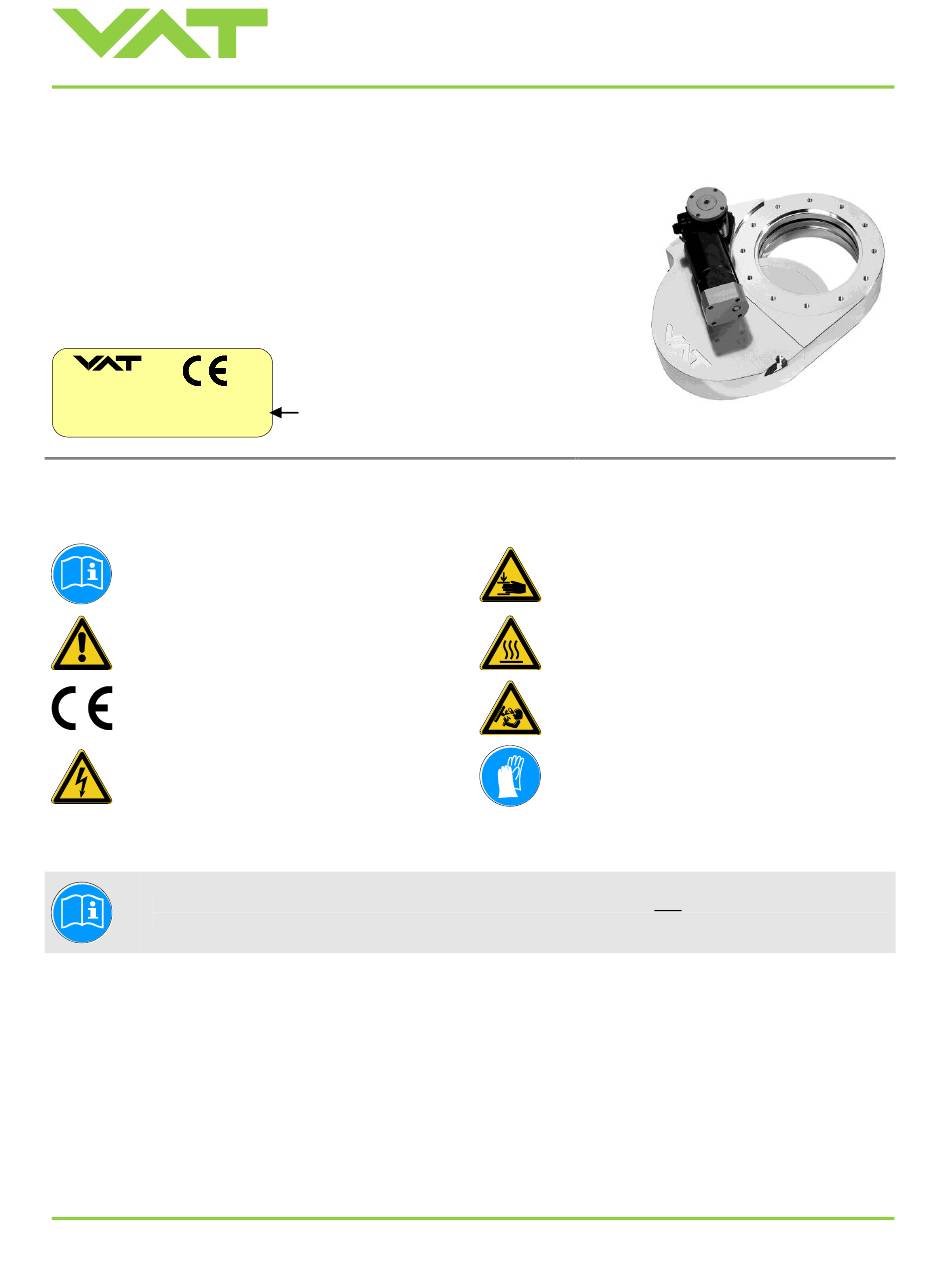

Pendulum Valve
This manual is valid for the valve ordering number(s):
162...
The fabrication number is indicated on each product as per the label
below (or similar):
made in Switzerland
Fabrication No.:
patented
162. . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Product is in conformity with EC guidelines,
if applicable!
Disconnect electrical power and compressed air
lines. Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
Installation, Operating & Maintenance Instructions
Series 162, DN 320 - 400 (I.D. 12" - 16")
. .
Fabrication number
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Loaded springs and/or air cushions are potential
hazards!
Wear gloves!
268503EC
08-08-2006
1/22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VAT 162 Series
Summary of Contents for VAT 162 Series
- Page 1 Do not touch parts under voltage! Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General Safety Instructions» carefully before you start any other action! VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 1/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com...
- Page 2 VAT products. The VAT firmware contains a limited, time unlimited user license. The VAT firmware may not be used for purposes other than those intended nor is it permitted to make copies of the VAT firmware. In particular, it is strictly forbidden to give copies of the VAT firmware to other people.
-
Page 3: Table Of Contents
6.1 Valve assembly drawing ..........................20 6.2 3-position actuator assembly drawing ......................21 7 Spare parts ................................22 8 Warranty ................................. 22 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 3/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 4: Use Of Product
Make sure, that the delivered components are according the order. Visually check the quality of the components. If something of the delivery is not as expected please immediately contact VAT. Notice: Please do not throw away the original packaging. Packaging my useful in a case of service to return the components to VAT. - Page 5 40 - 60 13 - 15 13 - 15 30 - 44 17 - 20 13 - 15 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 5/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 08-08-2006...
-
Page 6: Mounting With O-Ring In Groove
For a combination of both forces (F and M) the values are invalid. Verify that the depth of the mounting screws is max. 1 x thread diameter. Please contact VAT for more information. VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 6/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 7: Connections
Connect compressed air to the <IN> port of the solenoid (internal thread R 1/8“, 1/8“ NPT for USA) VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 7/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 8: Compressed Air Connection At 3-Position Actuator (Optional)
Connect compressed air to the <IN> port of the 3- position cylinder solenoid V2 (internal thread R 1/8“, 1/8“ NPT for USA) VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 8/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 9: Electrical Connection Standard Valve
Lo = position indicator open Lg= position indicator closed Minimum pulse duration 50 ms Continuous voltage does not damage the coil VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 9/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 10: Electrical Connection 3-Position Valve (Optional)
= Solenoid main cylinder = Solenoid 3-Position cylinder = Solenoid 3-position cylinder MV1 / MV2 = coils solenoid VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 10/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 11: Operation
Standard solenoid: valve will close Impulse solenoid: valve position will not change, but a started movement will be completed VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 11/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 12: Emergency Operation At Power Failure
1 = compressed air at specific port 0 = no compressed air at specific port REMARKS: The OPEN position has priority compared to the MID position VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 12/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 13: Trouble Shooting
Check if the o-rings of sealing ring are Clean or replace components <see section contaminated or damaged 5.3> Please contact your VAT service center for Sealing surfaces on valve body repair. You can find the addresses on our damaged? website: http://www.vatvalve.com. -
Page 14: Maintenance & Repairs
Contamination from the process may influence the function and requires more frequent maintenance. Before carrying out any maintenance or repairs, please contact VAT. It has to be individually decided whether the maintenance/repair can be performed by the customer or has to be carried out by VAT. The fabrication number on the valve made in Switzerland Fabrication No.:... -
Page 15: Safety Instructions
Keep fingers and objects away from the valve opening! Products returned to VAT must be free of harmful substances such as e.g. toxical, caustic or microbiological ones. If products are radioactively contaminated, fill in the VAT form «Contamination and Radiation Report» and send it with the product. -
Page 16: Lubrication & Tightening Torque Specifications
Unscrew gate fixation screw (17) Slide out gate (1) from the actuator shaft (20) Place gate (1) on a clean surface VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 16/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 17: Replacement And Cleaning Of Rotary Feed Through Seal
ATTENTION: Do not directly expose the piston feedthrough’s to an air stream. Hazard of grease contamination of the valve! Clean the rotary feed through sealing surfaces of the actuator shaft (20) with alcohol VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 17/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... - Page 18 Hazard of grease contamination of the valve! ATTENTION: VAT recommends during the replacement of the rotary feed through seal to clean and lubricate the seals of the sealing ring (2) too. Go ahead with item 49 if you do not want to service the sealing ring.
-
Page 19: Retrofit Of The Standard Actuator With A 3-Postion Actuator
(59) 12. Apply compressed according the specifications. <see section 2.5.2> 13. Check if the compressed air connections at the one touch fittings (59) and (60) are leak tight. VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 19/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com... -
Page 20: Drawing
Actuator fixation screws Dynamic seal Alignment piece Actuator Gate fixation screw Gate seal Valve body Bonnet seal Bonnet VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 20/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 08-08-2006... -
Page 21: 3-Position Actuator Assembly Drawing
Shipping nut One touch fitting 3-position cylinder One touch fitting 3-position actuator pneumatic seal 3-position actuator bottom screws VAT Vakuumventile AG, CH-9469 Haag, Switzerland 268503EC 21/22 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 08-08-2006... -
Page 22: Spare Parts
(including any delay in or failure to deliver), packaging, storage or use of any product sold or delivered by VAT shall fail to conform to the...
