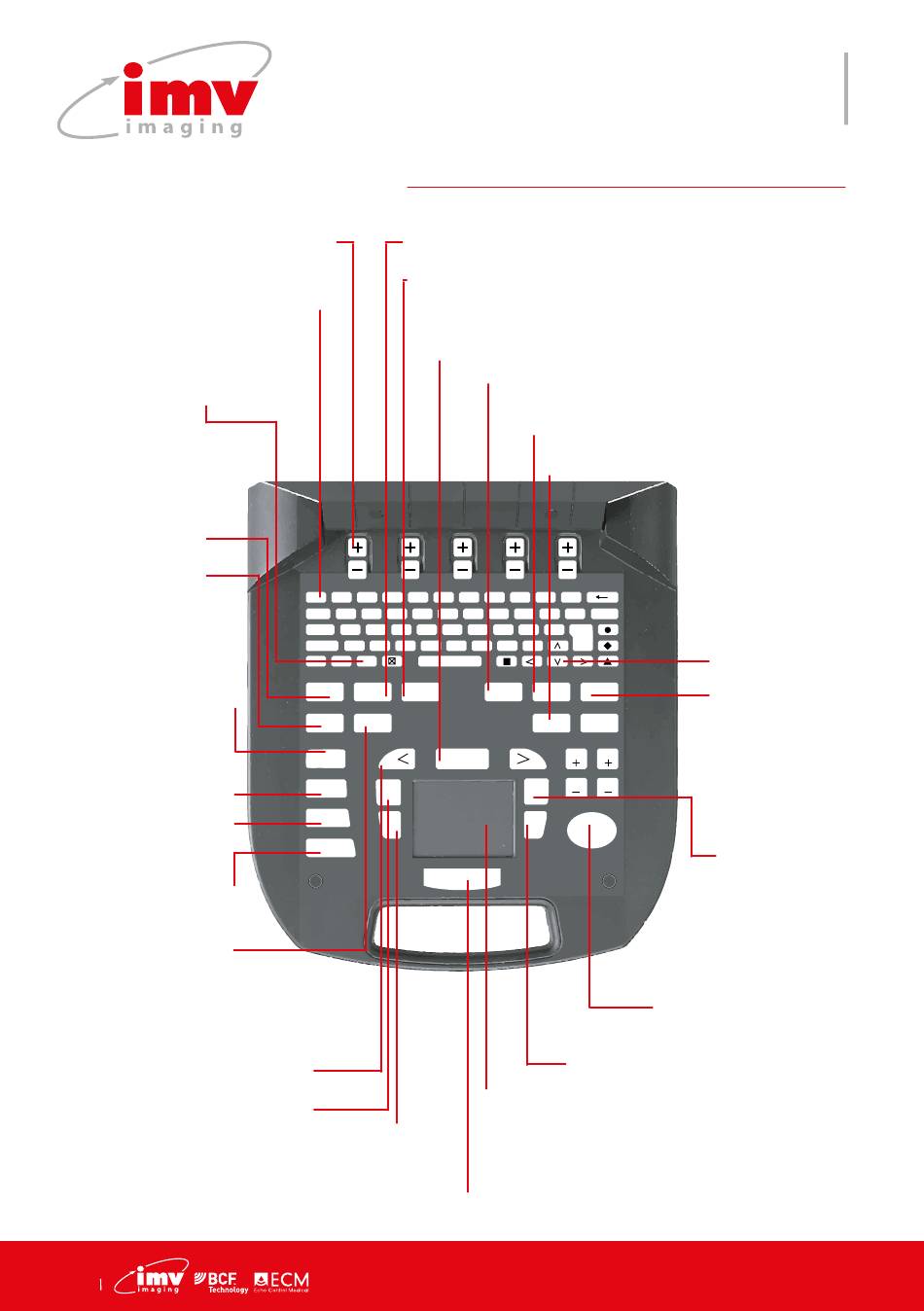

3.Keyboard functions

Keys to navigate through the
menu on screen
Shortcut to user defined an-
notation with (1-9 as free text)
Arrow in active imaging
mode or calipers in
Freeze. Use " Clear" to
delete or Arrow in Freeze.
Patient menu.
Settings menu.
M Mode
Select to start M
mode. Update to
return to M Line
adjustment.
PWD Mode menu
CFM Mode menu
B Mode menu
Clear annotations,
arrows, biopsy
guide or noise
rejection.
In Freeze mode move to
previous Cineloop image.
Current image index is
displayed on screen.
Measure menu.
When PW is activated from CFM, the "Up-
date" key allows to come back to the CFM
mode with the gate active.
Used to confirm selection items and activate. Active CFM/PW & M mode, zoom.
6
Report menu
Protocol menu
Cine loop records or
allows to view clips
Probe menu.
F 1 2 3 4 5 6
! @ ? + % -
T Q W E R T Y
AB
C A S D F G H
APS
S Z X C V B N
HIFT
T P A
EXT ICTO RROW
PATIENT REPORT PROTOCOL
SETTINGS CLEAR
M CINELOOP
PWD
MEASURE
CFM
UPDATE
B
SELECT
Press select to display
zoomed image or exit zoom.
Access frequency
selection menu.
7 8 9 0
& / ( )
U I O P D
ELETE
J K L E
NTER
M ;
PROBE ZOOM TGC
FREQUENCY FOCUS
DEPTH GAIN
DEPTH GAIN
REVIEW
STORE
FREEZE
Store image
Touchpad used for menu selection, mea-
surement cursors, validation of measure-
ments, line positioning in M mode etc.
Exago
Manual
Scroll text lists,
move cursor
or adjust po-
sition of CFM/
PW box.
Use keys to
adjust focus.
Reset to
return to initial
TGC level.
Review the
image/clips.
Freeze and unfreeze
the system
