Summary of Contents for IMV Easi-Scan

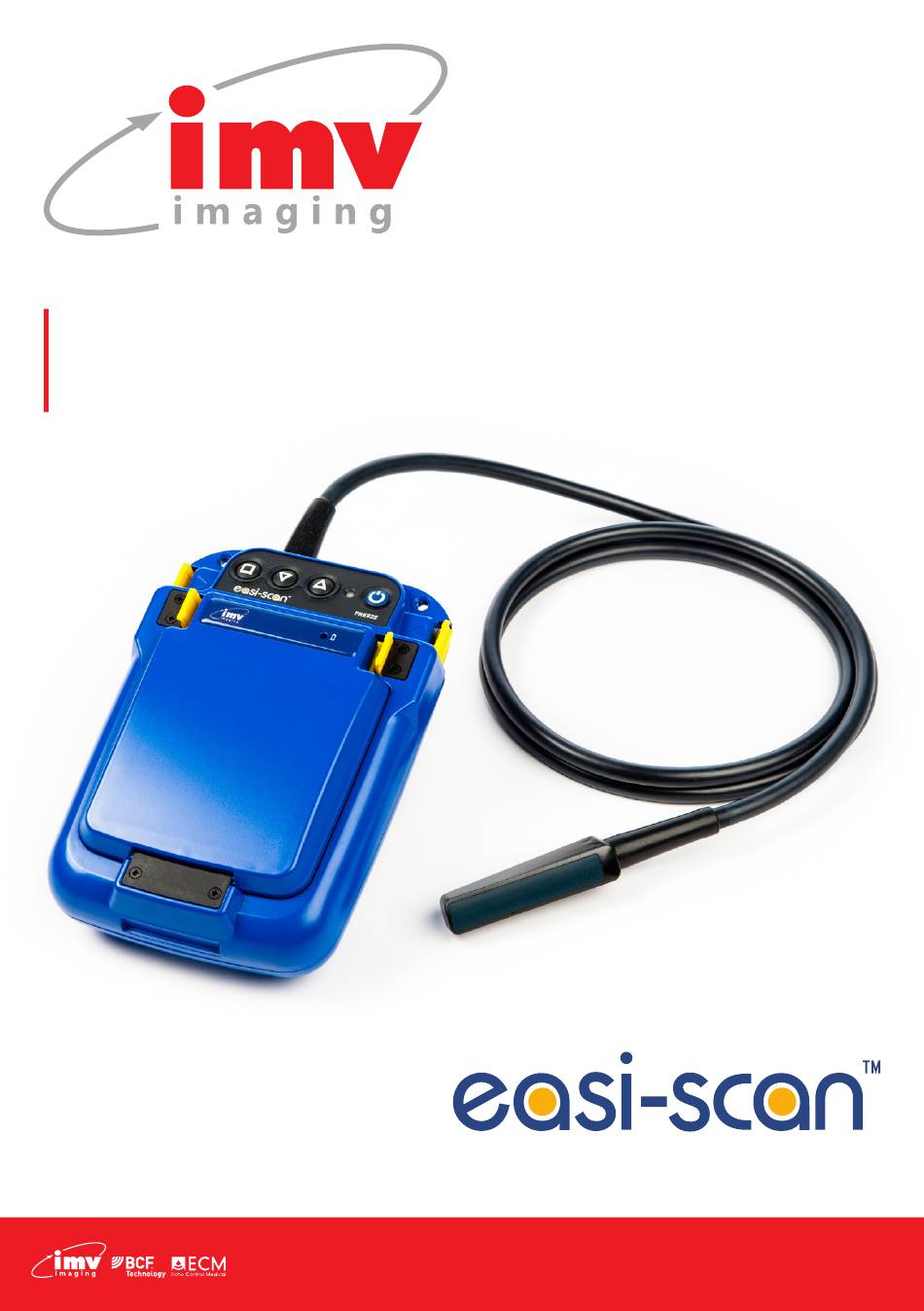

- Page 1 Instruction manual Your complete animal imaging solution...
-
Page 2: Table Of Contents
1.2 Power ................................1.3 Scanning ............................... 1.4 Scanner setup ............................1.5 Smart Display ............................. 2 Care & maintenance ............................2.1 Easi-Scan & power packs ........................2.2 Battery charging ............................2.3 Easi-Scan probe ............................Technical specification ............................Accessories ................................Service centres... -
Page 3: Introduction
IMV imaging systems. The Easi-Scan meets all essential and safety requirements of all current relevant European Directives. The CE mark on the front label is a symbol of this conformance. -
Page 4: System Features
Easily cleaned; all component parts can be wiped down to clean Operator safety Easi-Scan is designed to run from its external battery latched to the scanner. The batteries must be charged using only the IMV imaging standalone charger, battery charger or integrated carry case powered from the car power outlet (12 V DC) or the mains power supply. -
Page 5: Operating Instructions
To switch the scanner off, press and hold the Power button until the scanner beeps twice. Fig 1 Fig 4 Fig 2 Fig 3 fig 1 fig 4 fig 2 fig 3 www.bcftechnology.com -Scan-D manual English ver. Dec 2015 - www.photodesign-studio.com.indd 5 18/12/15 10:14 www.imv-imaging.com | 5... -
Page 6: Scanning
1.3 Scanning Easi-Scan has several selectable preset scanning application modes. System gain may be varied to suit current study. A short press on the Power button will freeze and unfreeze the image. 1.3.1 Standard operation The scanner loads the preferred settings at power on and is ready for use. - Page 7 The current gain setting (1-to-10) will be briefly displayed at the top of the screen. 1.3.5 On-farm timer control The Easi-Scan provides a timer which can be used to monitor On-farm time. Its operation is as follows: Select ‘Timer’ from the main menu. The Timer Sub-Menu will appear with the following options:...
- Page 8 Each setting will display CRL and/or TD of the correct size for a foetus of that gestation. 1.3.8 Auto standby mode The Easi-Scan has a low power standby mode, which can be enabled by selecting a duration from the Standby Sub-Menu.
- Page 9 Instruction manual 1.3.9 Image storage and review The Easi-Scan allows the operator to store up to 100 images on the scanner. To store a frozen image, select ‘Image’ from the Main Menu and Select ‘Store’ from the Image Sub-Menu, the scanner will then store the image. If a Cattle ID has been entered, the ID will be overlaid across the top left of the image, and the first five characters of the Cattle ID will form the image filename.
- Page 10 1.3.10 Cattle ID entry The Easi-Scan allows the operator to enter a cattle ID number which will be associated with the image once it is stored. If a Cattle ID has been entered, on storing an image the ID will be overlaid across the top left of the image, and the first five characters of the Cattle ID will form the image filename.
-
Page 11: Scanner Setup
1.4.3 Grid & graticule display The Easi-Scan allows the operator to display grid and/or graticule lines on the image. The following options are available: No grid or scale markings displayed Grid ½... - Page 12 The passkey for Easi-Scan is ’0000’ (four zeros). 1.4.6 Practice data entry The Easi-Scan allows the operator to enter a practice name which will be overlaid on any image that is stored. Selecting ‘Practice Data’ from the Setup Sub-Menu brings up the Practice Data Entry Menu.
-
Page 13: Smart Display
To use the Smart Display, make sure the Easi-Scan is switched off, feed the probe cable through the lower handle of the Smart Display, engage the rear of the Easi-... -
Page 14: Care & Maintenance
IMV imaging systems. However there is no substitute for careful usage. We state that the Easi-Scan is splashproof, indeed it is sealed to IP65, but you should note the following important points: The unit is not sealed against jets of water. Water will penetrate your scanner if it is hosed... - Page 15 While the battery is in a good condition and is fully charged, the scanner will run for the duration below. This time will vary depending on the display option used. • Easi-Scan with power pack latched 4 hours Scanner run time may approach double this duration using the Auto Standby feature.
-
Page 16: Easi-Scan Probe
The probe should be checked regularly for such damage. Gels Use only gels recommended by IMV imaging. Do not store the probe in gel. Cleaning The probe may be cleaned by removing all organic/protein residue and disinfecting using an IPA or 10% bleach wipe. -
Page 17: Technical Specification
USB PC connection using adapter lead Please note that frequent usage above 35 ºC (accessory) / 95 ºF will shorten battery lifetime. Video link stability maybe affected below -10 ºC / 14 ºF until scanner has warmed up. www.imv-imaging.com | 17... -
Page 18: Accessories
Accessories BUG (BCF Universal Goggles) Smart display Remote display Wrist display Battery pack Battery charger Charging carry case Carry bag Video splitter Introducer Easi-Scan grip Carry case 18 |... -
Page 19: Service Centres
(800) 210-9665 +61 3 9894 8980 Tim.perks@imvimaging.com F 507-529-8205 service@bcfultrasound.com www.imv-imaging.co.za www.bcfultrasound.com contact@imv-imaging.com www.imv-imaging.com For further information on care and maintenance of the Easi-Scan please visit the Service and Support section of the IMV imaging website www.imv-imaging.com www.imv-imaging.com | 19... - Page 20 Contact us now www.imv-imaging.com +44 (0) 1506 460023 info@imv-imaging.com facebook.com/IMVimaging twitter/IMVimaging © IMV imaging, V.1 June 2019/ Instruction manual Easi-Scan Linear Your complete animal imaging solution...
