IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________
PARTS LIST

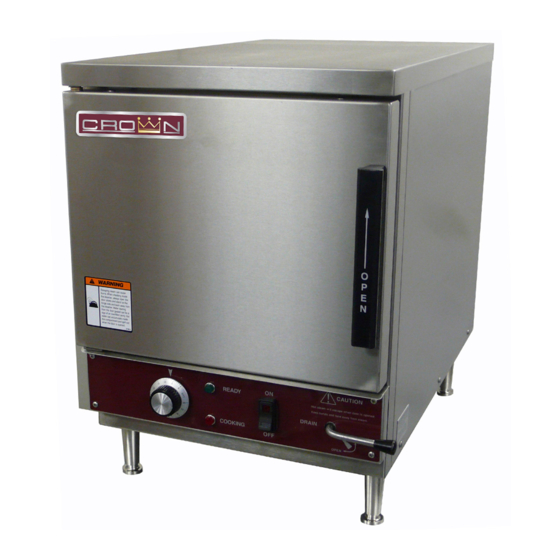

Electric Counter Convection Steamer
SX
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read
the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
CROWN FOOD SERVICE EQUIPMENT
y
A Middleby Compan
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000
www.crownsteamgroup.com
Printed in Canada
PARTS MANUAL 10273R2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crown SXN-4M
Summary of Contents for Crown SXN-4M
- Page 1 Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. CROWN FOOD SERVICE EQUIPMENT A Middleby Compan 70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9 Telephone: 919-762-1000 www.crownsteamgroup.com...
- Page 2 PARTS LIST, ELECTRIC COUNTER CONVECTION STEAMER, MODEL SXN-4M FIGURE 1 Part No. 10273R2 2018-07-26...
- Page 3 PARTS LIST, ELECTRIC COUNTER CONVECTION STEAMER, MODEL SXN-4M FIGURE 1 ITEM PART NO. DESCRIPTION QTY. 7964-1 Cover, Side 1-T5U6 Roll Pin 3977-4 Hinge Rod 2681-2 Pan Rack 4721-1 Rack Hanger Pin Assembly 4-T209-1 Timer, 60 Minutes, 240V, 50/60 Hz 9386-2...
- Page 4 PARTS LIST, ELECTRIC COUNTER CONVECTION STEAMER, MODEL SXN-4M ITEM PART NO. DESCRIPTION QTY. 2837-1 Outer Door Shell 3903-2 Door Handle Assembly 3646-1 Decal, Door Handle 4090-2 Door Handle 4089-2 Door Handle Plate M68S-1420-134 Socket Hd. Screw 1/4-20 UNC x 1-3/4 M68S-1420-34 Socket Hd.
- Page 5 PARTS LIST, ELECTRIC COUNTER CONVECTION STEAMER, MODEL SXN-4M ITEM PART NO. DESCRIPTION QTY. 33B. 7962-2 Rail Bracket, Rear * ** 4-T251 Transformer, 380/220V, 50/60 Hz. 100VA 4-T251 Transformer, 415/240V, 50/60 Hz, 100VA 4-T255 Transformer, 480/240V, 60 Hz, 100VA 9092-2 Fuse, 2 Amp., 250V (208, 220, 240V) 9092-2 Fuse, 2 Amp., 250V (380/220, 415V/240V)
- Page 6 PARTS LIST, ELECTRIC COUNTER CONVECTION STEAMER, MODEL SXN-4M ITEM PART NO. DESCRIPTION QTY. 6161-4 Modular Terminal Assembly, 4 Pole (208V- 240V) Includes the following parts: 9374-1 Modular Terminal, Grey 9375-1 End Plate 9369-1 End Clamp 9368-098 Mounting Rail, 98 mm...
- Page 7 PARTS LIST, ELECTRIC COUNTER CONVECTION STEAMER, MODEL SXN-4M ITEM PART NO. DESCRIPTION QTY. 7972-1040 Heating Element, 10 kW, 415/240V 7972-1077 Heating Element, 10 kW, 480/277V 5869-1 Element Gasket 4771-1 Adapter, 1 M x 1 M 6316-1 Tube, 3/8 Copper, Filling...
- Page 8 PARTS LIST, ELECTRIC COUNTER CONVECTION STEAMER, MODEL SXN-4M ITEM PART NO. DESCRIPTION QTY. M50S-51618-1 Hex Hd. Bolt, 5/16 - 18 UNC x 1 Lg. 3-121D Hex Hd. Plug, Brass, 1/2 NPT 3-116D Forged Street Elbow, 90 , Brass 1/2 NPT...
