Motorized Shade Systems
Installation & Operating Instructions

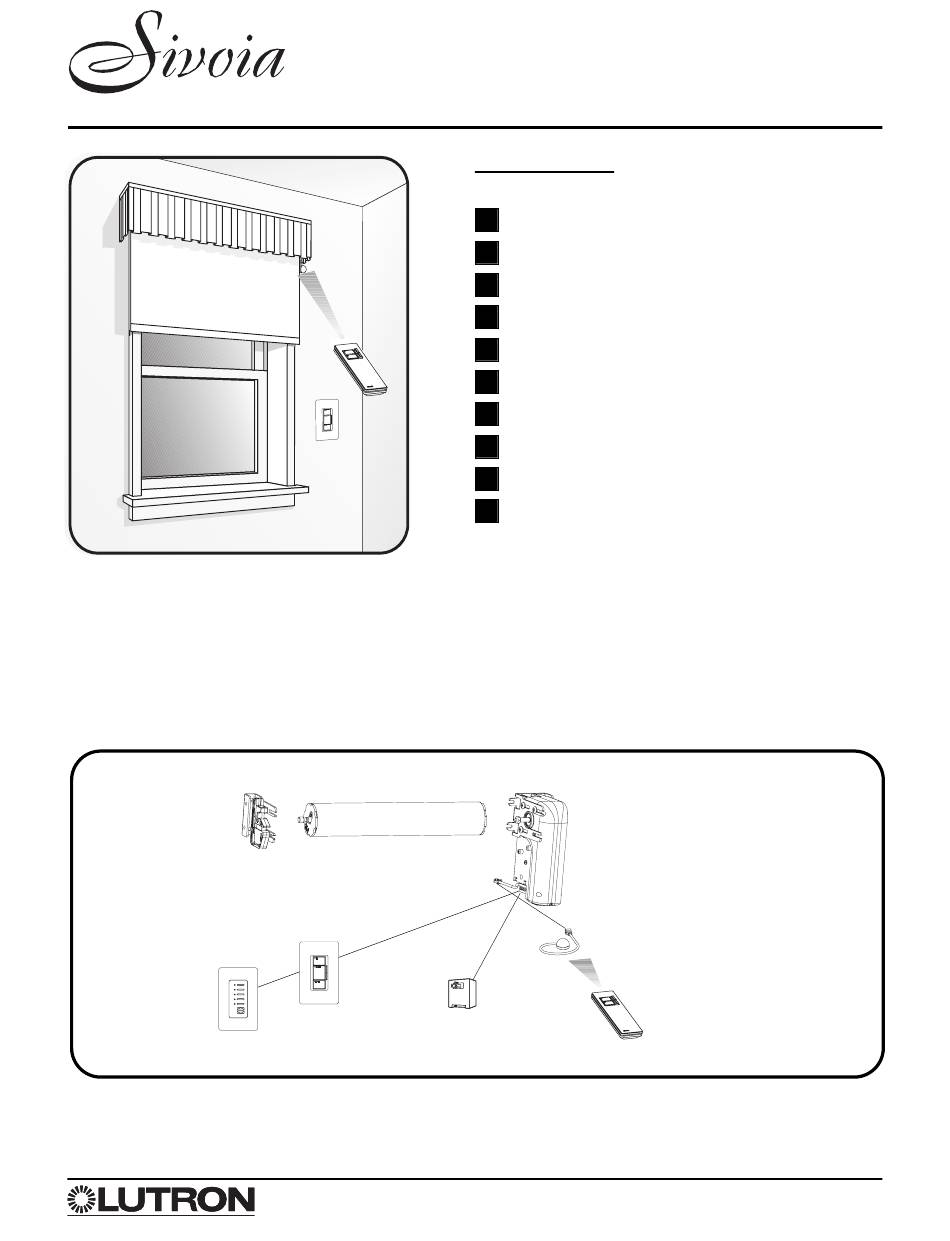

A Typical Sivoia
Motorized Shade System
TM
(
Wallstation Controls, Transformer, SV-IR Infrared Receiver Module, and Infrared Handheld Transmitter not included with this kit
Idler
Support
Wallstation Controls
VIMCO
shading solutions by
®
Fabric & Roller Assembly
Transformer
TM
Contents
1
System Dimensions Overview
2
Fasten Mounting Brackets
3
Attaching MDU and Idler Support
4
Hanging the Shade
5
Wiring the System
6
MDU Setup
7
Shade Controls
8
MDU w/ SV-IR Module
9
Troubleshooting
10
Part Specs
Motor Drive Unit (MDU)
SV-IR Infrared Receiver Module
Single Shade
Installation Kit
pg. 3
pg. 4,5
pg. 6
pg. 6,7
pg. 8,9
pg. 10,11
pg. 12
pg. 13
pg. 14
pg. 15
)
Infrared Handheld
Transmitter
Page 1
Advertisement
Related Manuals for Vimco Lutron Sivoia
Summary of Contents for Vimco Lutron Sivoia
- Page 1 Wallstation Controls, Transformer, SV-IR Infrared Receiver Module, and Infrared Handheld Transmitter not included with this kit Fabric & Roller Assembly Idler Support Motor Drive Unit (MDU) Wallstation Controls SV-IR Infrared Receiver Module Infrared Handheld Transmitter Transformer Page 1 VIMCO shading solutions by...
- Page 2 Ceiling-Mount Brackets TOOLS REQUIRED • #2 Phillips Screwdriver • 1/8 in. Straight Blade Screwdriver • Power Drill: Drill Bits, Screwdriver Attachments • Level • Pliers • Tape Measure • Wire Cutter • Wire Stripper Page 2 VIMCO shading solutions by...
- Page 3 2 3/4" (32 mm) (70 mm) Fabric Width (FW) Figure 2: Ceiling-Mount Bracket Application Bracket to Bracket Width (FW + 4" (102 mm) 1 1/4" 2 3/4" (32 mm) (70 mm) Fabric Width (FW) Page 3 VIMCO shading solutions by...
- Page 4 Once the mounting brackets have been fastened to the wall, confirm the Bracket to Bracket Width as listed on the Sivoia Order Invoice. Refer to Figure 1 on page 3 for a detailed diagram. Make any ® necessary bracket position adjustments based on this assessment. Page 4 VIMCO shading solutions by...
- Page 5 Once the ceiling-mount brackets have been fastened to the ceiling, confirm the Bracket to Bracket Width as listed on the Sivoia Order Invoice. Refer to Figure 2 on page 3 for a detailed diagram. ® Make any necessary bracket position adjustments based on this assessment. Page 5 VIMCO shading solutions by...
- Page 6 C. Insert the idler pin into the upper slot of the idler support and drop it into place. Page 6 VIMCO shading solutions by...
- Page 7 Shade Retaining Screw “Locked” Shade Leveling Shade Retaining Screw Screw CAUTION! Not setting the shade retaining screw into the "locked" position prior to operating the unit can result in damage to the system. Page 7 VIMCO shading solutions by...
- Page 8 3 #22 AWG shielded + 1 #24 AWG common (comm link) (Lutron wire model no. SV-CBL-MDU-250) SV-IR Extension 3 conductors #22 AWG 50 ft. (15 m) per system - total of 5 Cable Lutron model # SV-IR-EXT-10 SV-IR-EXT-10, 10 ft. (3 m) each Page 8 VIMCO shading solutions by...
- Page 9 3 #22 AWG shielded + 1 #24 AWG common (comm link) (Lutron wire model no. SV-CBL-MDU-250) SV-IR Extension 3 conductors #22 AWG 50 ft. (15 m) per system - total of 5 Cable Lutron model # SV-IR-EXT-10 SV-IR-EXT-10, 10 ft. (3 m) each Page 9 VIMCO shading solutions by...
- Page 10 MDU to adjust the shade to the closed corrent position as the “Close button on the MDU position desired. Limit.” The display will read until the display and blink for 4 seconds, then go reads blank. Page 10 VIMCO shading solutions by...
- Page 11 0. Changing this setting on any MDU will adjust all the MDU's in the system. It is not necessary to deactivate the scene lockout setting from the same MDU it was activated it on. Page 11 VIMCO shading solutions by...
- Page 12 1.) Use the Raise and Lower buttons until shade is at the level you wish to store as the "PRESET". 2.) Press and hold the Preset button (approximately 4 seconds) until appears in the MDU's LED display. Note: Pressing any button while shade is moving will stop the shade. Page 12 VIMCO shading solutions by...
- Page 13 - The SV-IR must NOT be located near lighting fixtures or in direct sunlight. - The SV-IR must be located within 50 ft. (15 m) of the MDU it is connected to. Add up to five (5) SV-IR-EXT-10 extension cables (10 ft. [3 m] each). Page 13 VIMCO shading solutions by...
- Page 14 If shade veers or telescopes towards the left, tape must be placed as close to the right edge of the roller as possible. Note multiple pieces may be necessary. Page 14 VIMCO shading solutions by...
- Page 15 (41 mm) 2.84" (72 mm) 3.20" (81 mm) 0.5" MDU Dimensions (13 mm) 4" (102 mm) 3.25" (82 mm) 2.40" (61 mm) 6.75" (171 mm) Front Back View View Side View “A” Side View “B” Page 15 VIMCO shading solutions by...
- Page 16 What Vimco Will Do Upon the return of a system or system component, subsequently determined by Vimco to be defective, Vimco will, in its sole discretion, repair or replace the defective system or system component, provided that Vimco was promptly notified of the alleged defect within the warranty period, and provided that the system or system component was properly installed, wired, insulated, used, and maintained, as determined solely by Vimco.
