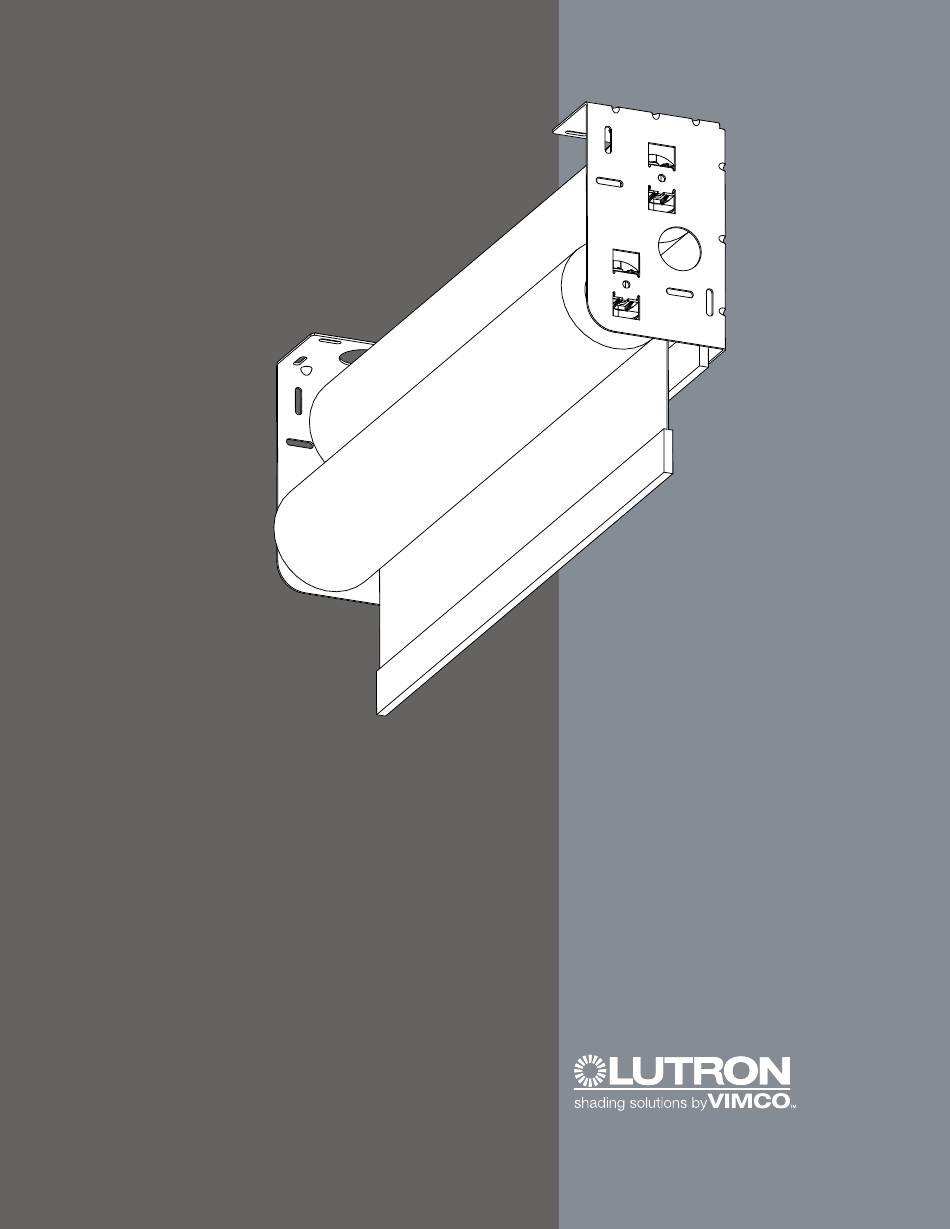

- Page 1 Sivoia QED ™ Roller 64 ™ Dual Mount Installation Instructions...
- Page 2 Notes: _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 3 Sivoia QED Roller 64 Dual Mount Installation Instructions Tools Required: Tape Measure 1/4” Hex-Head Driver Wire Cutter/Stripper Level Pliers Power Drill #2 Phillips Screwdriver Notes: 1) Complete wiring and programming information can be found in the Sivoia QED Wire and Programming Guide, P/N 045-038 or at www.lutron.com.
- Page 4 Sivoia QED Roller 64 Dual Mount Installation Instructions (continued) Warning: Incorrect installation can lead to severe injury, follow all installation instructions. Notes: • The Sivoia QED Roller 64 must be used only with window systems approved by Lutron. • There must be a clearance of at least 1.3 feet (0.4 meters) between the fully lowered system and any permanent object.
- Page 5 Confirm System Dimensions Package Label Compare system dimensions on the package label with the window dimensions to verify appropriate window/shade combination. System Height System Width SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 6 Position the Mounting Brackets Mark the location of the mounting brackets so they are centered over the window. Note: Bracket to Bracket Distance = Fabric Width + 1.5” (38mm) = System Width. Note: For a ceiling and jamb mount, allow clearance to prevent fabric from rubbing against trim, window, top treatment, etc.
- Page 7 Pre-drill for Cable Run DANGER - Locate and lock breaker to the shade power supply in the OFF position or unplug the power plug-in transformer before doing any wiring. Choose one of the options below to drill for cable access. Note: Cables may exit through any of the large holes in the dual brackets, on the EDU side of the shades.
- Page 8 Install Dual Brackets Install the first mounting bracket with the bracket oriented such that the upper shade mount is closest to the glass. Upper and Lower shade positions Install the second mounting bracket as shown in the figure below. Note: Each bracket should use four mounting screws, in either the ceiling holes or the wall holes. Note: The brackets should be mounted to support at least 300 lbs (136 kg).
- Page 9 Wire 7-Pin Terminal Block Strip 2” (50mm) of jacket off the cables that run from the wall. Wire 7-Pin terminal blocks (provided) to cables using the included screwdriver. Note: SVQ-CBL-250 shown. SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 10 Orient the Buttons and Wiring For the following bracket and button orientations, route the wires as shown. Note: The buttons should be accessible when the shade is installed. Note: Make sure the wires are not pitched or damaged. Note: The wires may go in either or both of the indicated slots. Wire Slot Buttons SIVOIA QED...
- Page 11 Mount the Shade Install the idler side of the shade onto its bracket. Depress the spring loaded idler by pressing the shade towards the idler, and install the EDU side of the shade onto its bracket. SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 12 Adjust the Shade Ensure that the shade is level and centered by shimming the bracket. Note: You do not need to level the second shade. Adjust shade by removing the necessary screws and moving the brackets as needed. Note: You may have to remove the shade to access the bracket screws. Reinstall and tighten the screws.
- Page 13 Connect Terminal Blocks Plug 7-pin terminal block on cable into EDU terminal block (a cable tie can be used to secure the terminal blocks together). Dress wires to ensure fabric does not rub while the shade is moving. SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 14 IR Receiver Connection (if applicable) 10.1 Plug in the IR receiver. 10.2 Position the IR receiver. Note: The IR receiver can not be covered from view of the remote control or interfere with the shade. Note: Dress wires to ensure the fabric does not rub while the shade is moving. SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 15 Secure and Check the Shade 11.1 Tighten retaining screws in each bracket to secure the shade. SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 16 Secure and Check the Shade (continued) 11.2 Reconnect power to the shade power supply. Use the programming stylus to run the shade up and down using the adjustment buttons ( ), re-level if needed. Observe: Pay careful attention to the shade roll up to ensure that it does not telescope extremely to one side or the other.
- Page 17 Setting Limits from the EDU Setting the Open Limit from the EDU Note: Setting the Open Limit lower than the Close Limit will cause the shade to move down when raise is pressed and up when lower is pressed. 12.1 Tap the “Open Limit Button”...
- Page 18 Setting Limits from the EDU (continued) Setting the Close Limit from the EDU 12.4 Tap the “Close Limit Button” ( ). The green LED on the roller Shade EDU will turn on steady, indicating that the EDU is in “Set Close Limit Mode”. 12.5 Adjust the position of the EDU to the desired Close...
- Page 19 Install the Second Shade 13.1 Install the lower shade by repeating steps 6-12. SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 20 Finish System Programming The Sivoia QED shade is now installed, wired, and the OPEN/CLOSE limits for each shade have been set. The next step is to finish programming the system. Use the instructions in the Wiring and Programming Guide (p/n 045-038) or the Technical Reference Guide (p/n 367-592) and perform these four easy steps: 1.
-
Page 21: Troubleshooting
Troubleshooting Symptom Solution Shade will not move..EDU is not powered - check EDU Power..Shade is caught on something - free shade..Shade is not assigned to keypad, IR, or CCI. Shade does not fully open or fully close..Limits have been set incorrectly - refer to “set open limit”... - Page 22 Notes: _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ SIVOIA QED Roller 64 Dual Mount Installation Instructions...
- Page 23 Notes: _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ SIVOIA QED Roller 64 Dual Mount Installation Instructions...
-
Page 24: Technical Assistance
Technical Assistance Limited Warranty Lutron offers an 8-year limited warranty for our WORLD ADDITIONAL LUTRON HEADQUARTERS SALES OFFICES: shading systems. Please contact customer Lutron Electronics Co., Inc. Germany service or visit our website for a complete 7200 Suter Road Tel: +49-309-710-4590 warranty statement.
