Motorized Shade Systems
Installation & Operating Instructions
Fascia Shade Pocket
Ceiling

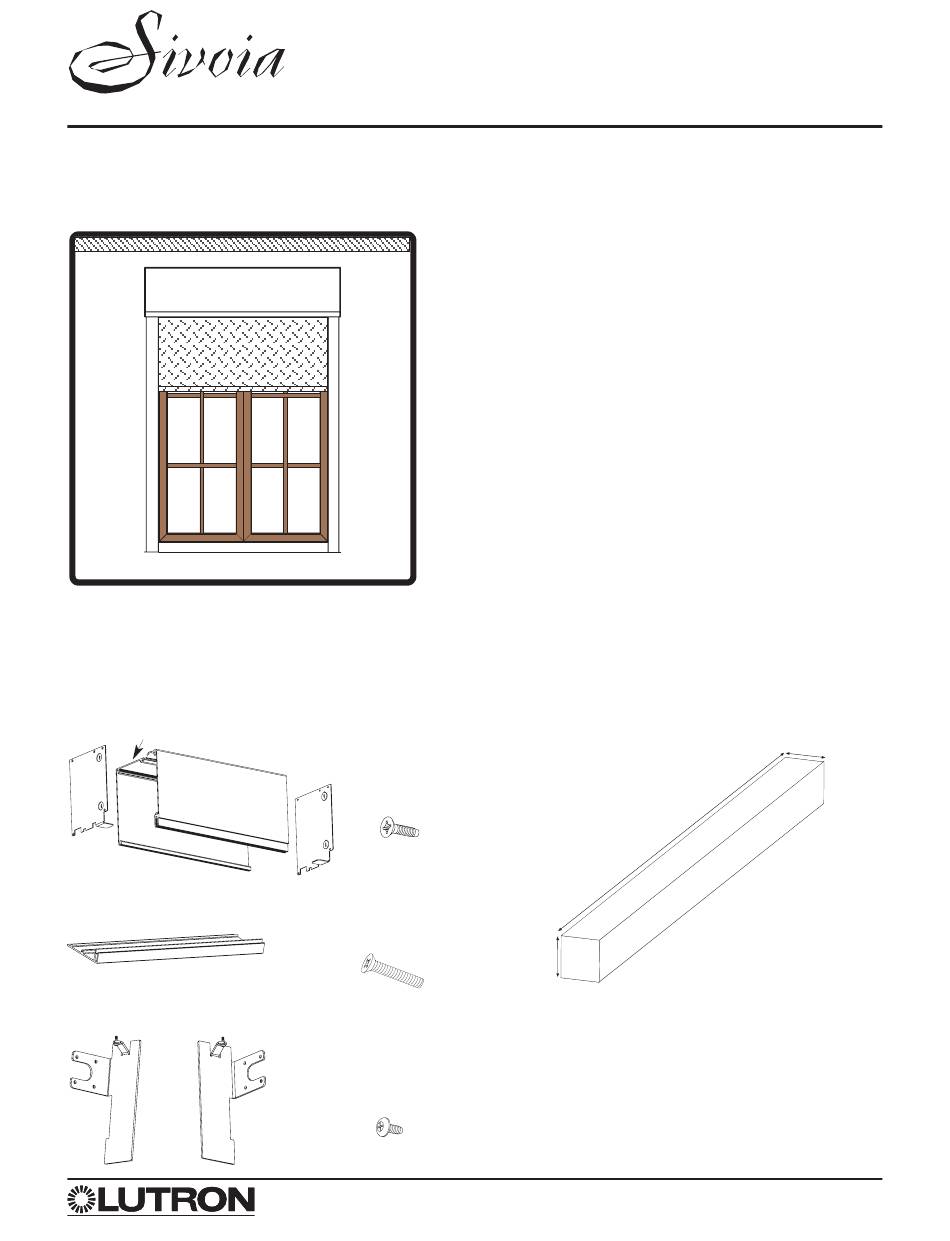

Parts Included With This Package:
Pocket
Pocket Back
End Cap
Pocket Front
Pocket Cover
Mounting Brackets
VIMCO
shading solutions by
®
End Cap
5/8" End Cap
Screws (x10)
3/4" Pocket Cover
Screws (x2)
1/2" Mounting
Bracket Screws (x6)
TM
SV-FASCIA-1
Description
The Sivoia
SV-FASCIA-1 Fascia Shade Pocket (to be
®
used in conjunction with an SV-MDU-20) offers blackout
capability for the window and a protective enclosure for
the entire shade system.
Important Notes
1. Each individual pocket cannot exceed a 15 foot width.
Greater widths can be accommodated by ganging
multiple pockets.
2. When planning to install a Sivoia Fascia Shade
Pocket, allow space for the following dimensions:
Minimum clearance width = Pocket Width + 1/4"
I
(6 mm)
Minimum clearance height = 8 3/4" (222 mm)
I
Minimum pocket depth = 6 1/2" (165 mm)
I
3. For ease of installation, three (3) individuals may be
required.
4. Pocket requires standard support for 9 lbs./ft.
Pocket Width
+ 1/4" (6 mm)
Clearance
Height:
8 3/4"
(222 mm)
Required Tools:
Any necessary tools to hang the pocket (fasteners
I
to be supplied by the installer).
Power Drill with #28 Drill Size (0.140" hole size)
I
Fascia Shade Pocket
Clearance Depth
6 1/2"
(165 mm)
Page 1
