www.voltech.com
Thank you for choosing to use this Voltech Power Analyzer.
Should you experience any difficulty during the set up or use of any
Voltech product, or are unsure of any of their features or abilities,
please do not hesitate to contact either your local supplier or one of
our Voltech offices.
Voltech Instruments Inc.
11637 Kelly Road, Suite 306
Fort Myers, FL 33908
Tel: 239 437 0494
Fax: 239 437 3841
sales@voltech.com

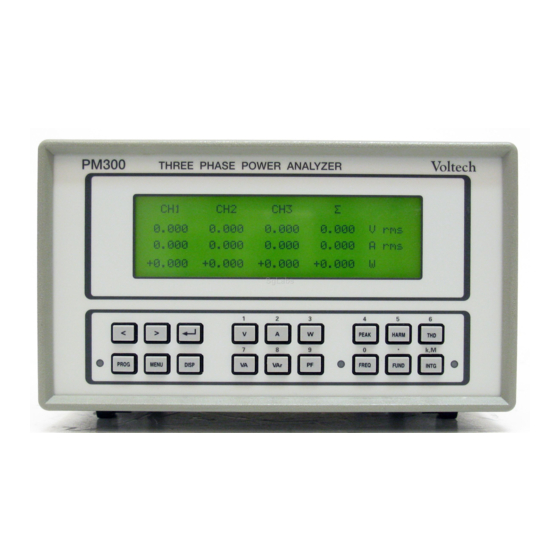

PM100/300
Power ANALYZERS
USER MANUAL
U.S.A.
Voltech Instruments Ltd.
148 Harwell Sience and Innovation Campus
Didcot, OX11 0RA
U.K.
Tel: +44 (0) 1235 834555
Fax: +44 (0) 1235 835016
sales@voltech.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Voltech PM100
Summary of Contents for Voltech PM100
- Page 1 Thank you for choosing to use this Voltech Power Analyzer. Should you experience any difficulty during the set up or use of any Voltech product, or are unsure of any of their features or abilities, please do not hesitate to contact either your local supplier or one of our Voltech offices.
- Page 2 Because software is inherently complex and may not be completely free of errors, you are advised to verify your work. In no event will Voltech be liable for direct, indirect, special, incidental or consequential damages arising out of the use of or inability to use software or documentation, even if advised of the possibility of such damage.
- Page 3 PM100 / 300 U ANUAL EALTH AFETY EALTH AND AFETY Electrical devices can constitute a safety hazard. It is the responsibility of the user to ensure the compliance of the installation with any local acts or bylaws in force. Only qualified personnel should install this equipment, after reading and understanding this users guide.
- Page 4 AFETY RECAUTIONS The PM100 and PM300 power analyzers have been constructed in compliance with the requirements of EN61010-1, Pollution Degree 2, Installation Category II, FOR INDOOR USE ONLY. This ensures the safety of the meter and the user when normal precautions are followed.
- Page 5 PM100 / 300 U ANUAL ONTENTS ONTENTS AGES Section 1 Getting Started Section 2 Function Keys Section 3 The Menu System Example: Low-Power Standby Measurements Section 4 Calibration Section 5 Specifications Section 6 Accessories Section 7 EMC Compliance VPN 98-052...
- Page 6 PM100 / 300 U ONTENTS ANUAL VPN 98-052...
- Page 7 ‘PWM Mode’ on other Voltech analyzers for this application. All PM100 and PM300 power analyzers are supplied with a power lead, and the line voltage selector switch and menu language suitable for use in their intended destination country. Please check the line voltage setting on the IEC line socket at the back of the power analyzer.
- Page 8 PM100 / 300 U ETTING TARTED ANUAL DJUSTING THE DISPLAY CONTRAST Switch the analyzer ON. Before pressing any other keys, press and hold the [<] or [>] key to adjust the display contrast to suit your angle of view. The [<] key will darken the display, and the [>] will make it lighter.
- Page 9 PM100 / 300 U ANUAL ETTING TARTED With the analyzer connected, and with power applied, the default display shows Volts, Amps and Watts. On a PM300, quantities for 3 channels and sum are shown. The green LED on the front panel is illuminated when the analyzer has detected a stable fundamental frequency.
- Page 10 PM100 / 300 U ETTING TARTED ANUAL FREQ Frequency The frequency of the input waveform is obtained using the [FREQ] key. The lowest of the frequencies detected on the Channel 1 V and A inputs is displayed. This frequency is used as the fundamental for harmonic analysis.
- Page 11 PM100 / 300 U ANUAL ETTING TARTED Four further types of measurement are available. These are associated with only specific basic measurements. Attempting to show ‘VA’ ‘PEAK’ for example will result in a parameter error. PEAK Peak value of the waveform V pk, A pk.
- Page 12 PM100 / 300 U ETTING TARTED ANUAL PM300 Σ 96.88 97.08 97.78 168.44 V rms 121.13m 134.38m 128.47m 127.99m AH01 Amplitude of harmonic in Amps ° -002.3 -120.6 -242.4 Phase of harmonic Use the [<] and [>] keys to scroll through harmonics 0 (dc) to 50.
- Page 13 PM100 / 300 U ANUAL UNCTION 2 - F ECTION UNCTION PROG Press and HOLD this key to toggle between default (Red LED off) and stored settings (Red LED on). MENU Enter and exit the menu system. < Move through menus, select settings etc. Clear erroneous menu data.
- Page 14 PM100 / 300 U UNCTION ANUAL VPN 98-052...
- Page 15 PM100 / 300 U MENU S ANUAL YSTEM 3 - T MENU S ECTION YSTEM MENU Allows access to the analyzer menu system. To navigate the menu system, press the [MENU] key and select the menu you require, either by pressing one of the number keys corresponding to the menu number, or [>] until you see the menu displayed.
- Page 16 MENU S PM100 / 300 U YSTEM ANUAL M[1] Inputs 1ph 2W >x< See connection diagram on page 2 1ph 3W >x< See connection diagram on page 2 3ph 2W >x< See connection diagram on page 2 3ph 4W > < See connection diagram on page 2 External Shunt >x<...
- Page 17 YSTEM M[0] Outputs This menu is only available when a Voltech interface card is fitted. See page 23 for a full description of the cards available for your analyzer. For operating instructions, see the manual supplied with the interface card.
- Page 18 Range in M[2] and then enter the approximate maximum peak current or voltage that is expected. (This can be measured by pressing the PEAK key). It is not necessary to remember the exact ranges of the PM100, since they will be selected for you according to the following tables.
- Page 19 If in doubt, enter ‘200’ Amps when prompted, and then reduce this value to improve resolution and accuracy. When using the inrush current mode on the PM100, it is advisable to first set manual range as describe on page 12 to monitor the signal before the inrush mode is issued.
- Page 20 MENU S PM100 / 300 U YSTEM ANUAL To give the best measurement accuracy, it is recommended that the Voltech Ballast CT (current transformer) be used where high common mode voltages are present. PM100 PM300 Electronic Ballast Tube Harmonic Mode Harmonic Amplitude may be displayed as a percentage (%) of fundamental or in RMS terms as desired.
- Page 21 This mode may be used to average measurements over a long interval from 10 to 300 seconds. Normally, the PM100 samples the waveforms at 200kHz and updates the display approximately every ½ second. This is ideal for most measurement applications.
- Page 22 MENU S PM100 / 300 U YSTEM ANUAL Disable Blanking Normally, small signals which are below the specified range of the analyzer are not displayed. The display is 'blanked'. To view small signals, disable the blanking by selecting ' '. For best accuracy, however, bring the signals into the normal operating range of the analyzer.
- Page 23 PM100 / 300 U MENU S ANUAL YSTEM M[6] Language English or an alternative language may be selected for the menus. Select Menu By selecting > < at this menu, the screen will switch to the first menu option, [M0] Outputs and you may now scroll through all the menu options once again.
- Page 24 MENU S PM100 / 300 U YSTEM ANUAL VPN 98-052...
- Page 25 A measurement of the average input power is required to check the rating of the power supply. With default settings, the PM100 makes measurements at high speed and updates the display approximately every ½ second. With the waveform above, the measurements are not stable, and the analyzer pauses while it auto-ranges in between readings.
- Page 26 5. Press [MENU] again and the analyzer will now begin to make measurements. The red PROG led will flash to indicate that the PM100 is in long averaging mode. The display update rate will vary with the averaging time, but the analyzer is making continuous measurements and averaging them together.
- Page 27 PM100 / 300 U ANUAL ALIBRATION 4 - C ECTION ALIBRATION Calibration of your analyzer is valid for 12 month periods. If any input range is uncalibrated, the analyzer displays ‘CALIBRATION ERROR’ on power up. This may be bypassed by pressing the [↵] key.
- Page 28 PM100 / 300 U ALIBRATION ANUAL For Current Calibration 1Ω<2A 0.1Ω>2A For Current Calibration (External Shunt) 1Ω VPN 98-052...
- Page 29 For each of the seven ranges per channel (VR1 to VR8), set up approximately the required voltage using the equipment connected as shown on page 15 for voltage calibration. Enter the voltmeter reading into the PM100 or PM300 and press [↵]. Use [>] and [<] to delete incorrect entries. The display will show;...
- Page 30 PM100 / 300 U ALIBRATION ANUAL CALIBRATION PASS to continue, or; CALIBRATION FAIL If ‘FAIL’ is displayed, press [<] to retry. To skip a range, press [↵] when the display shows >0<. When ‘PASS’ is displayed, press [↵] and the display will show;...
- Page 31 PM100 / 300 U ANUAL PECIFICATION C ± 5 5 - S C, 30 ECTION PECIFICATION MINUTES WARM Voltage Ranges (auto ranging) 2Vrms to 1000V pk in 8 ranges : 7.5, 15, 30, 60, 120, 240, 480, 1000 Vpk Accuracy 5Hz to 1kHz ±0.1% reading ±0.1% range ±10mV...
- Page 32 PM100 / 300 U PECIFICATION ANUAL Power Display Range 0 to 1,999GW Accuracy ±0.2% rdg ±0.2% rng ±5mW ±0.3%/kHz Apparent Power Display Range 0 to 1,999GVA Accuracy ±0.2% rdg ±0.2% rng ±5mVA ±0.3%/kHz Reactive Power Display Range 0 to 1,999GVAr Accuracy ±0.2% rdg ±0.2% rng ±5mVAr ±0.3%/kHz...
- Page 33 PM100 / 300 U ANUAL PECIFICATION Harmonics Range 0 to 50 Bandwidth Fundamental 5Hz to 50kHz* Harmonics 10Hz to 250kHz Accuracy Fundamental Volts ±0.1% rdg ±0.1% rng ±10mV ±0.1%/kHz Amps ±0.2% rdg ±0.1% rng ±1mA ±0.2%/kHz Harmonics ±(0.2 ± 0.1/kHz)% of fundamental...
- Page 34 PM100 / 300 U PECIFICATION ANUAL VPN 98-052...
- Page 35 PM300 ECTION CCESSORIES AVAILABLE FOR THE A number of interfaces have been designed for use with the PM100 and PM300 power analyzers: IEEE488.2 Interface. Full implementation of the IEEE488.2 bus communication standard using the latest National Instruments compatible circuits. Allows full control of the analyzer remotely. IEEE address may be any number from 2 to Centronics (parallel) and RS232 (serial) Interface.
- Page 36 PM300 OUNTING ETAILS FOR THE IMPORTANT: Detail applies to PM100 / PM300 manufactured from late 2001 onwards. Earlier models have a case which is split along its sides and different drilling details apply. Request an issue 4 manual. Front Remove feet...
- Page 37 Supplementary Information: The product herewith complies with the requirements of the EMC Directives 89/336/EEC and 92/31/EEC and the Low Voltage Directive 73/23/EEC Signed for on behalf of Voltech Instruments Ltd Martin Whitley, Quality Manager Abingdon, United Kingdom June, 1996 VPN 98-052...
- Page 38 Supplementary Information: The product herewith complies with the requirements of the EMC Directives 89/336/EEC and 92/31/EEC and the Low Voltage Directive 73/23/EEC Signed for on behalf of Voltech Instruments Ltd Martin Whitley, Quality Manager Abingdon, United Kingdom June, 1996 VPN 98-052...
- Page 39 Immunity The PM100 and the PM300 may be susceptible to Fast Electrical Transients on the power line and Electrostatic Discharges, which can disrupt the operation of the units. In the event of such an occurrence, to return the PM100 or PM300 to normal operation:...
- Page 40 EMC C PM100 / 300 U OMPLIANCE ANUAL VPN 98-052...
