MKS-1GD, 1GDV, 1GDVF
Fixed Camera Door Sentry Systems
DESCRIPTION:
The MKS-1GD, 1GDV and 1GDVF are audio video door
answering systems complete with a fixed camera door
station (MK-DH, MK-DV and MK-DVF respectively), an
inside monitoring station (MK-1GD) and a power supply
(PS-1820UL). Two additional interior stations may be
added, either audio only (MK-2SD), audio/video (MK-1HD)
or one of each. The video door stations feature a wide angle
black & white CCD camera with built in infrared illumination
for low light viewing, call-in button, and speaker/mic for
communication. The call button on the door station turns
on the 4" CRT at the inside monitor, initiates audio
monitoring from the door and activates a four-stroke chime.

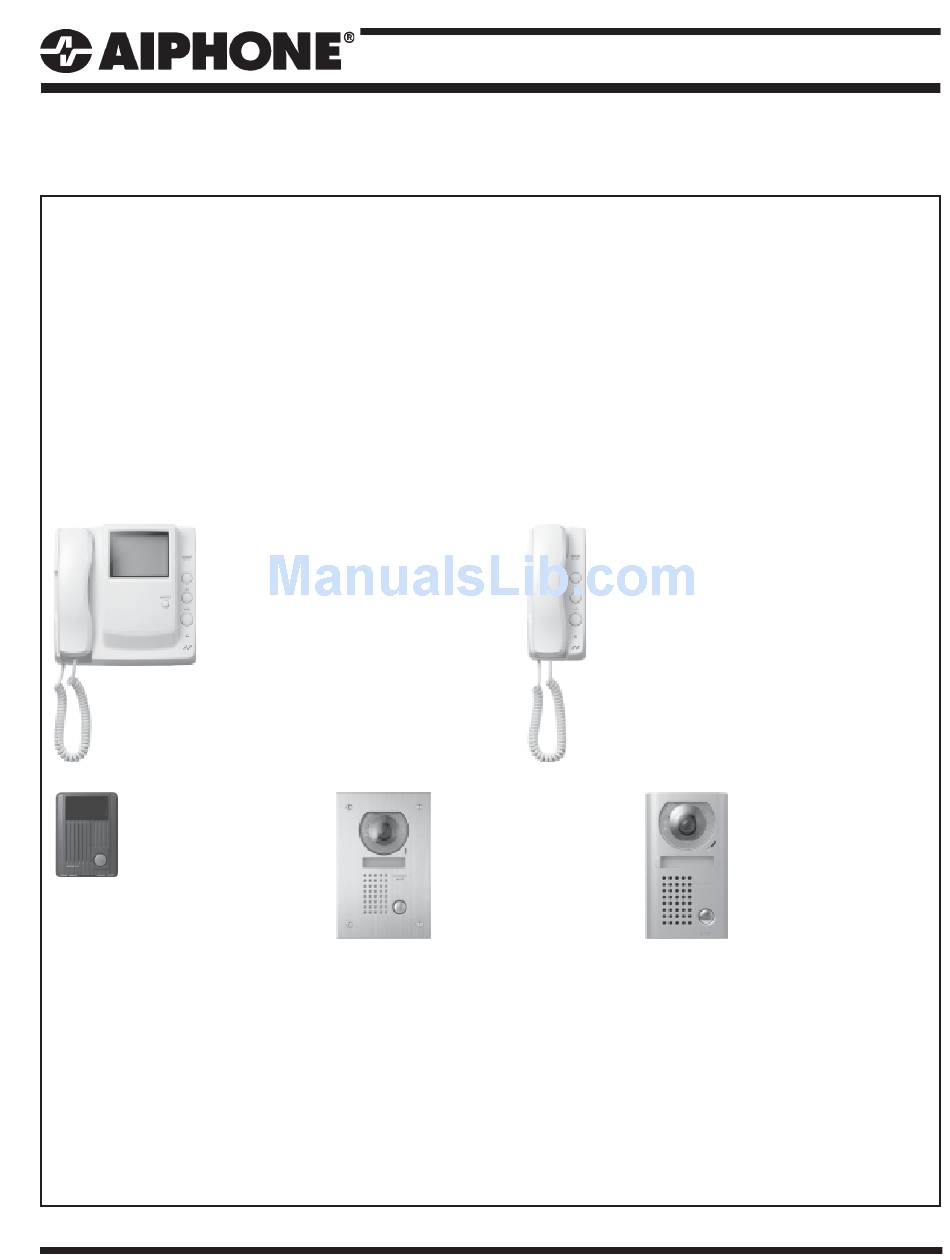

MK Series System Components
MK-1GD/HD Features:
• Audio/Video Monitor
• 4" CRT Screen
• Handset for private communication
• All call to other units
• Door release contact
• Extra dry contact (Optional)
• Call-in LED
• Chime tone Volume control
• Transfer of door call-in
• Instant-on when door calls
• Monitor the door station
MK-DH Features:
• Surface mount
• Adjustable camera angle
• Built in infrared LED's
• Lexan protected camera lens
FEATURES & FUNCTIONS:
• Video quality improved over current MK system
• Set contains door station, monitor and power supply
• Extra dry contact (requires additional equipment)
• Door call-in LED
• Video and audio turn on when door calls in
• Door Call Transfer
• Redesigned monitors
• Two additional monitor or handset only stations can be added
• Simple 2-wire hook up -- Can replace existing doorbell
• 4 conductors between inside monitors
• Handset for two-way communication at inside station
Aiphone Communication Systems • 1700 130th Ave. NE • Bellevue, WA 98005
(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com
Audio communication at the door station is hands
free, and communication at the inside station is
through the handset. The interior stations also
feature a normally open dry contact for door release
and an extra dry contact for light or secondary
door release activation. Additional door station
features vary by model: The MK-DH is surface
mount and features a gray ABS plastic housing
and an adjustable viewing area. The MK-DV is
surface mount and features a Zinc cast faceplate
with a metal call button. The MK-DVF is flush
mount with a stainless steel faceplate and metal
call button. One power supply (PS-1820UL)
supplies power for an entire system.
MK-2SD Features:
• Audio Only sub
• Handset for private communication
• All call to other units
• Door release contact
• Extra dry contact (Optional)
• Call-in LED
• Chime tone Volume control
• Transfer of door call-in
MK-DVF Features:
• Flush mount
• Backlit directory
• Vandal resistant
• Stainless steel face
• Metal call button
• Built in infrared LED's
• Lexan protected camera lens
• Hands free communication at the door station
• Infrared, CCD camera for low light applications
• Composite video output (with optional connector)
• All Call between inside stations
• One power supply for entire system
• Activate door strike from inside station(s)
• Wide angle CCD cameras
• Three sets include new door stations:
MKS-1GD: MK-DH Surface Mount ABS Plastic
MKS-1GDV: MK-DV Vandal proof, surface mount
MKS-1GDVF: MK-DVF Vandal proof flush mount
MK-DV Features:
• Surface mount
• Backlit directory
• Vandal resistant
• Zinc cast face
• Metal call button
• Built in infrared LED's
• Lexan protected camera lens
