Aiphone DB Series User Manual

Hands-Free Two-Wire Door Answering Intercom
The DB Series door station is surface mount with an aluminum faceplate and backlit call directory. The door stations
come in one, two, or four call button varieties and each tenant can have up to five interior stations. Multiple button
door stations allow system installation in multi-tenant buildings. Communication with the door is hands-free from any
wall mounted interior unit. After establishing a visitor's identity, a press of the door release button activates the door
strike to allow entry. Interior units communicate by placing an All Call announcement to all other units. Answering
the All Call announcement at a different inside location establishes point-to point communication.

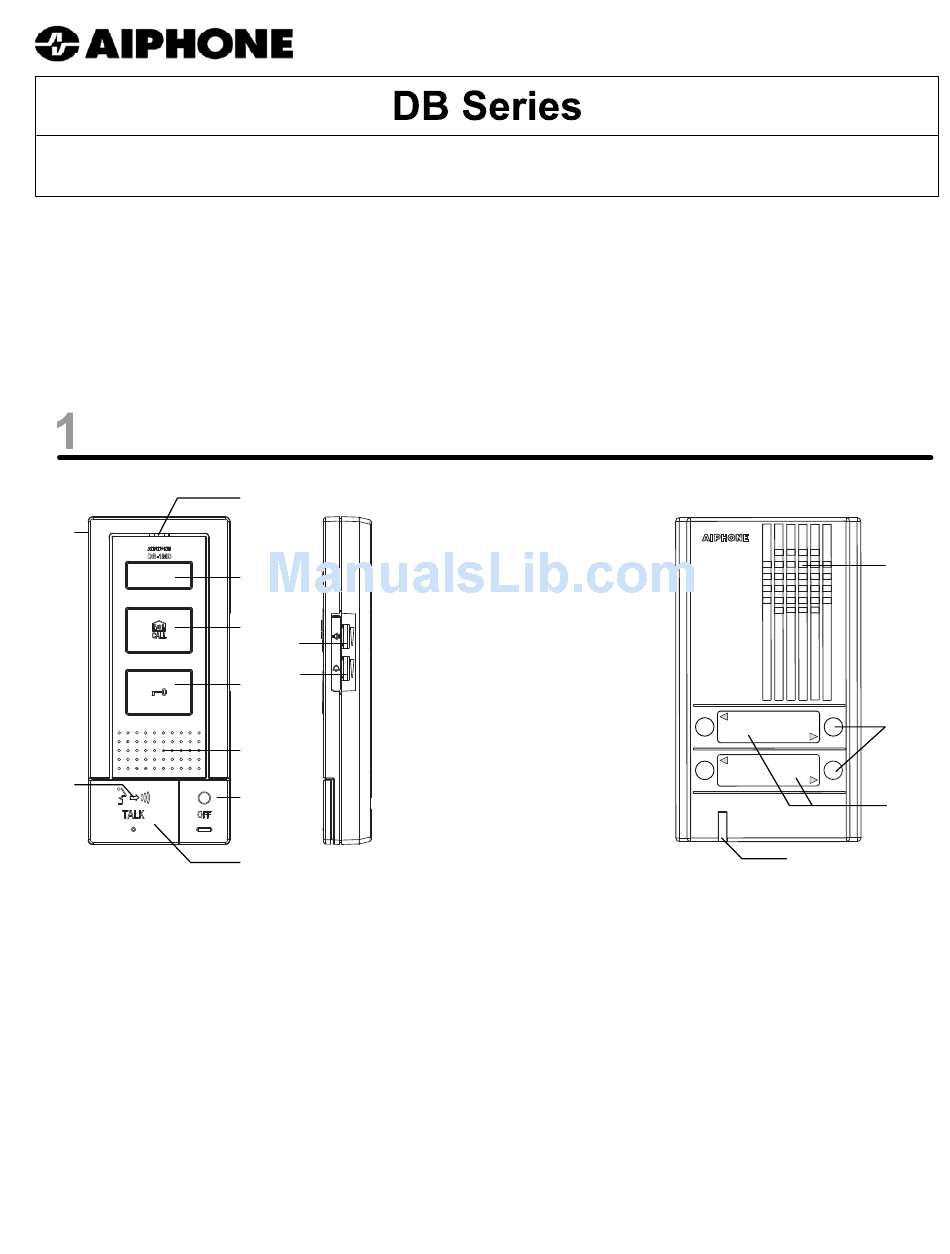

NAMES & FEATURES
[9]
[8]
FEATURES:
· Up to 5 stations per door call button (1 master, 4 subs)
· All Call between stations in same residence / office
· Internal communication can be hands-free (VOX) or push-to-talk (PTT)
· Door release powered by door station (output is 70Ω 9.5 ~ 20V AC)
· Option button for external device control (N/O dry contact, AC/DC 24V 1.6A Max)
· Call tone volume control with LED mute indicator
· Receive volume control
· Optional Call Extension speaker (IER-2)
· Optional external signaling to 3
· Simple 2-wire connection from door to master for intercom and door release
· 4 wires between master and subs (daisy-chain wiring method only), plus 2 additional for power
1009
- SUPPLEMENT TO DB INSTRUCTIONS -
[1]
[1] Microphone
[2] Option Button
[2]
[3] Room Call Button
[4] Door Release Button
[3]
[5] Speaker
[10]
[6] Off Button
[7] Talk Button
[11]
[4]
[8] Transmit/Chime Tone Off LED
[9] Power Switch
[10] Receive Volume
[5] [11] Chime Volume
[12] Door Speaker
[13] Call Buttons
[6]
[14] Backlit Directory
[15] Door Microphone
[7]
rd
party bell or light using TAR-3 (used in lieu the IER-2)
[12]
[13]
[14]
[15]
Pg. 1
