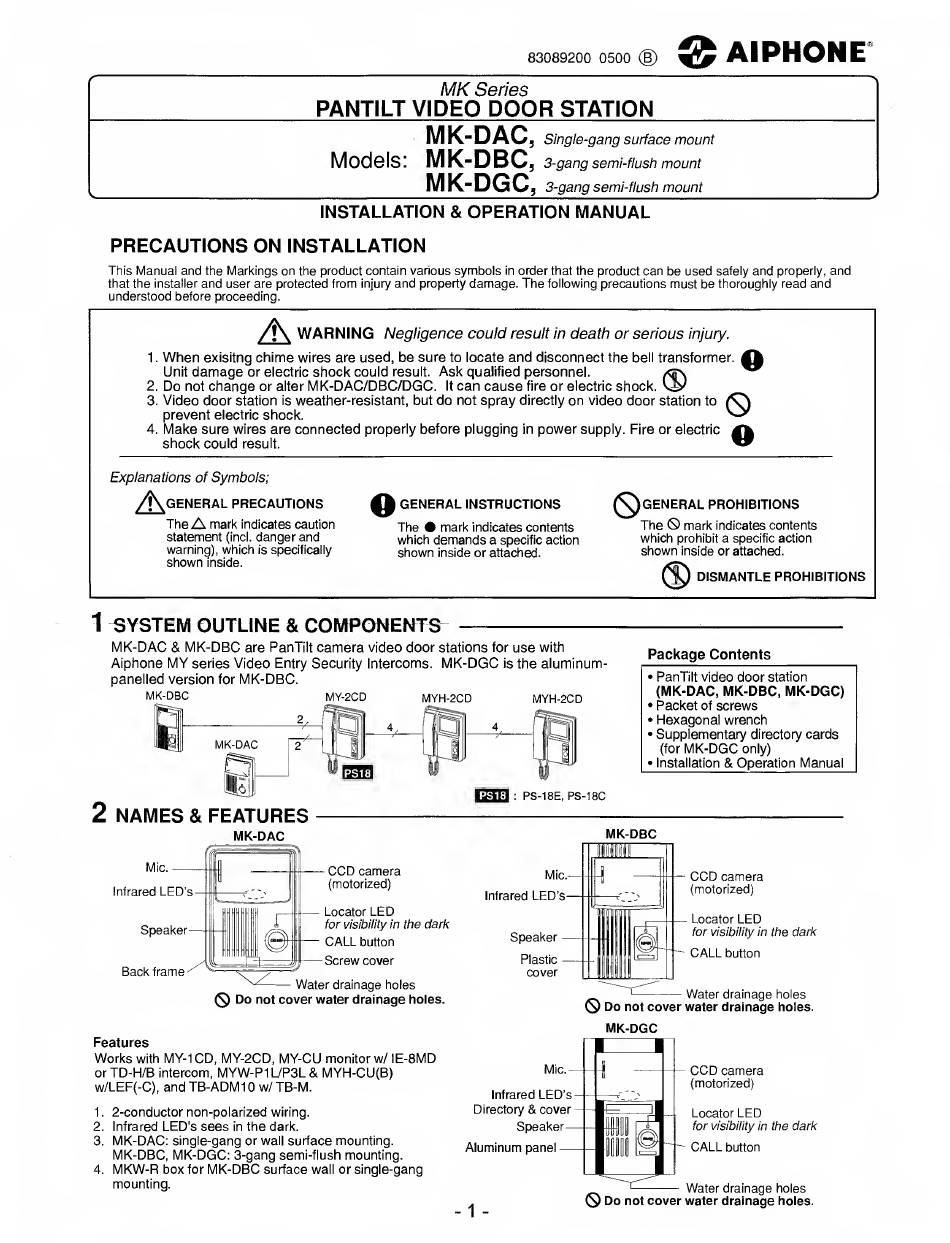

Aiphone MK Series Installation & Operation Manual

83089200 0500 (B)
MK Series
PANTILT VIDEO DOOR STATION
MK-DAC,
Single-gang surface mount
Models:
MK-DBC,
3-gang semi-flush mount
MK-DGC,
3-gang semi-flush mount
INSTALLATION & OPERATION MANUAL
© AIPHONE*
PRECAUTIONS ON INSTALLATION
This Manual and the Markings on the product contain various symbols in order that the product can be used safely and properly, and
that the installer and user are protected from injury and property damage. The following precautions must be thoroughly read and
understood before proceeding.
WARNING Negligence could result in death or serious injury.
1. When exisitng chime wires are used, be sure to locate and disconnect the bell transformer,
Unit damage or electric shock could result. Ask qualified personnel. x|\ v
2. Do not change or alter MK-DAC/DBC/DGC. It can cause fire or electric shock.
3. Video door station is weather-resistant, but do not spray directly on video door station to
prevent electric shock. ^
4. Make sure wires are connected properly before plugging in power supply. Fire or electric
shock could result. "
Explanations of Symbols;
/^GENERAL PRECAUTIONS
The
A
mark indicates caution
statement (incl. danger and
warning), which is specifically
shown inside.
| GENERAL INSTRUCTIONS
The • mark indicates contents
which demands a specific action
shown inside or attached.
0
GENERAL PROHIBITIONS
The
S>
mark indicates contents
which prohibit a specific action
shown inside or attached.
DISMANTLE PROHIBITIONS
1 SYSTEM OUTLINE & COMPONENTS
MK-DAC & MK-DBC are PanTilt camera video door stations for use with
Aiphone MY series Video Entry Security Intercoms. MK-DGC is the aluminum-
panelled version for MK-DBC.
MK-DBC MY-2CD MYH-2CD MYH-2CD
Package Contents
• PanTilt video door station
(MK-DAC, MK-DBC, MK-DGC)
• Packet of screws
• Hexagonal wrench
• Supplementary directory cards
(for MK-DGC only)
• Installation & Operation Manual
2 NAMES & FEATURES
: PS-18E, PS-18C
Infrared LED's -
Speaker-
Back frame -
MK-DAC
H --CCD camera
r_^ (motorized)
I
I-Locator LED
4 for visibility in the dark
((*"))-CALL button
IJ-Screw cover
^— Water drainage holes
0 Do not cover water drainage holes.
Infrared LED's
Speaker
Features
Works with MY-1CD, MY-2CD, MY-CU monitor w/ IE-8MD
or TD-H/B intercom, MYW-P1L/P3L & MYH-CU(B)
w/LEF(-C), and TB-ADM10 w/TB-M.
1. 2-conductor non-polarized wiring.
2. Infrared LED's sees in the dark.
3. MK-DAC: single-gang or wall surface mounting.
MK-DBC, MK-DGC: 3-gang semi-flush mounting.
4. MKW-R box for MK-DBC surface wall or single-gang
mounting.
MK-DBC
Infrared LED's -
Directory & cover -
Speaker—
Aluminum panel —
CCD camera
(motorized)
Locator LED
for visibility in the dark
CALL button
-Water drainage holes
0 Do not cover water drainage holes.
MK-DGC
CCD camera
(motorized)
Locator LED
for visibility in the dark
CALL button
—- Water drainage holes
0 Do not cover water drainage holes.
