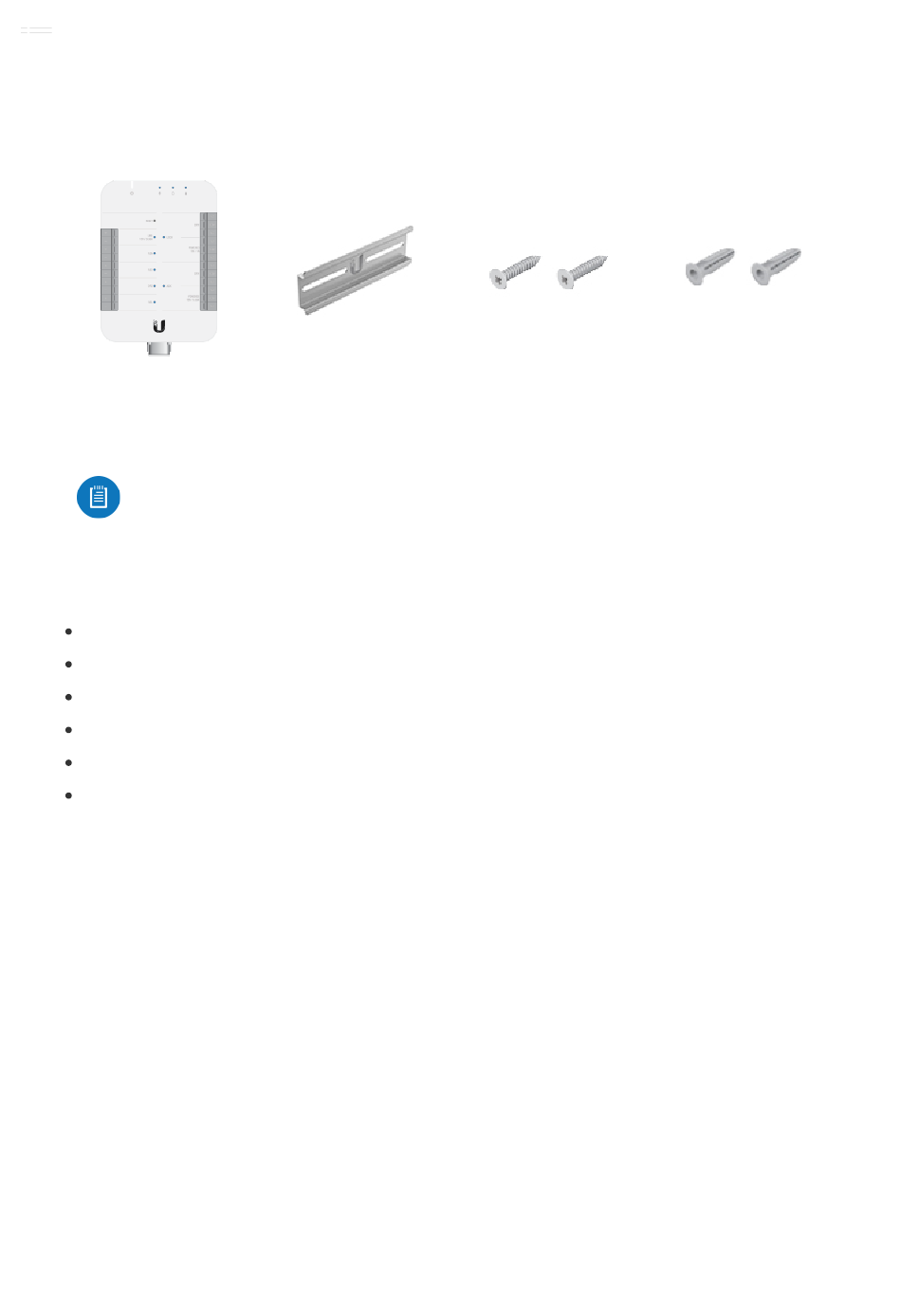

UA-Hub Quick Start Guide Door Position Switch Externally Powered Door Opener Magnetic Lock Hardware Overview...
Page 3
UA-Hub Quick Start Guide Power (In) LED Steady Blue Adopted/device is ready Steady White Pending adoption Alternating White/Blue Upgrading firmware PoE (Out) LEDs Not connected or no data link Steady Blue Connected and data link on 12V Line Output LED...
Page 4
Request to enter UA-Hub Quick Start Guide Request to exit Door position switch Remote release Input Relay LEDs Not connected Steady Blue Effectively connected* Output Relays Output relay with no power POWERED Output relay with 12VDC Output Relay LEDs Not connected...
Page 5
Controller. UA-Hub Wiring Connecting the UA-Hub to LAN Ensure the switch port that is connected to the UA-Hub is on the same LAN segment or VLAN as the UniFi Access agent. It must also support PoE+ or PoE++. Connecting the UA-Pro to the UA-Hub...
Page 6
Connecting a Fail-Safe Lock with No External Power Supply 1. Connect the Lock Powered (NC) port on the UA-Hub to the (+) on the lock. 2. Connect the Lock Powered (COM) port on the UA-Hub to the (-) on the lock.
Page 7
2. Connect COM on the motion sensor to REX (-) on the UA-Hub. 3. Connect V+ on the motion sensor to Line 12V (+) on the UA-Hub. 4. Connect V- on the motion sensor to Line 12V (-) on the UA-Hub.
Page 8
REL, REX, and REN all work the same way with motion sensors. Connecting a Siren 1. Connect AUX Powered (NO) on the UA-Hub to the (+) on the siren. 2. Connect AUX Powered (COM) on the UA-Hub to the (-) on the siren.
Page 9
UA-Hub Quick Start Guide Connecting a Door Position Switch (Door Sensor) 1. Connect NC on the door position switch to the DPS (+) on the UA-Hub. 2. Connect COM on the door position switch to the DPS (-) on the UA-Hub.
Page 10
UA-Hub Quick Start Guide Connecting a Fail-Secure Lock with No External Power Supply Connect the Lock Powered NO and COM ports on the UA-Hub to the NO and COM ports on the fail-secure lock, respectively. Fail-secure lock in this diagram refers to electric strike.
UA-Hub Quick Start Guide Hardware Installation DIN Rail...
Page 12
UA-Hub Quick Start Guide Peripherals Sample UniFi Access Diagram Note: The UA-Hub also features an additional PoE port for the UVC-G3- FLEX camera (optional).
UA-Hub in one of two ways: Dry connections Powered connections, 12VDC Dry locks do not require power from the UA-Hub and are generally accompanied by their own external power or power adapter. Powered locks receive 12VDC power from the UA-Hub.
Electrical Safety Information UA-Hub Quick Start Guide 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
