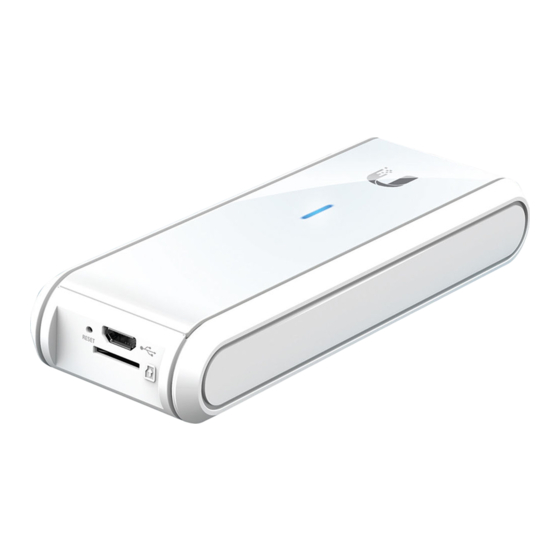

- Page 1 Package Contents UniFi Cloud Key Ethernet Cable microSD Card (8 GB) System Requirement Web Browser: Google Chrome (Other browsers may have limited functionality.) Hardware Overview Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 2 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 3 White Factory defaults. Flashing White Initializing. Device is busy; do not touch or unplug it. This Alternating White/Blue usually indicates that a process such as a firmware upgrade is taking place. Blue Device is working properly. Shutdown Button Press the Shutdown button to initiate a graceful shutdown (all services will be shut down and the CPU will remain active).
-
Page 4: Hardware Installation
Restart Press and release the Reset button quickly. Restore to Factory Default Settings Press and hold the Reset button for more than five seconds. USB Type C Power Port Optional power source (5V, minimum 1A) if PoE is not available. microSD Slot This slot is used to back up the Cloud Key configuration to the microSD card (included). - Page 5 Powering the UniFi Cloud Key Use an 802.3af-compliant switch, such as a UniFi Switch, or a USB power source (not included). UniFi Switch Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 6: Usb Power Source
USB Power Source Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... -
Page 7: Software Installation
Software Installation The UniFi Controller software is pre-installed on the UniFi Cloud Key. Use one of the following methods to launch the software: If you are using Chrome, go to the Chrome Instructions section (recommended). If you are using a different web browser, go to the Instructions for Other Web Browsers section. - Page 8 3. Enter the username and password for your Ubiquiti account. Click Sign In. 4. Enable the Discover Cloud Key option at the top right. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 9 5. If the Ubiquiti Device Discovery Tool is already installed, proceed to step 7. If the tool is not installed, you will be prompted to add it. Proceed to step 6. 6. To install the tool: a. Click Install. Create PDF in your applications with the Pdfcrowd...
- Page 10 Click Add app to confirm. 7. The Ubiquiti Device Discovery Tool will search for the UniFi Cloud Key. Click Adopt in the Cloud Key’s Actions column to continue. Create PDF in your applications with the Pdfcrowd HTML to PDF API...
- Page 11 8. If the Cloud Key firmware is not the latest version, click Upgrade Firmware to upgrade the firmware. 9. Click Open Controller Wizard to set up the Controller on the Cloud Key. 10. The UniFi Setup Wizard screen appears. Follow the on-screen instructions. Then, click Finish to save your changes.
- Page 12 Note: For step-by-step instructions, refer to the User Guide, which is available at ui.com/download/unifi 11. Enter your ui.com account credentials and click Enable Cloud Access. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 13 12. Go back to the UniFi Controller tab (https://unifi.ui.com) in your browser and wait for the UniFi Controller to be adopted. 13. Click Launch to open the UniFi Controller remotely. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 14 The UniFi Controller management interface will appear. You can manage your UniFi devices and view network statistics using the UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide located on our website: ui.com/download/unifi Instructions for Other Web Browsers 1.
- Page 15 4. Click Manage to run the UniFi Setup Wizard. Note: You can click Configure to change the settings of the UniFi Cloud Key. The default login is ubnt/ubnt. 5. The UniFi Setup Wizard screen appears. Follow the on-screen instructions. Then, click Finish to save your changes.
-
Page 16: Specifications
After the UniFi Setup Wizard is finished, the UniFi Controller management interface will appear. Log in with the Admin Name and Password that you created, and then you can manage your UniFi devices and view network statistics using the UniFi Controller management interface. -
Page 17: Safety Notices
UC-CK Networking Interface (1) 10/100/1000 Ethernet Port Buttons (1) Reset to Defaults Shutdown Power Method 48V 802.3af or Passive PoE (Pairs 4, 5+; 7, 8-) USB-C Power Supply 802.3af PoE or USB-C 5V, Minimum 1A Max. Power Consumption Operating Temperature 0 to 40°... -
Page 18: Electrical Safety Information
Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 19 communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This radio transmitter has been approved by FCC. ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s).
- Page 20 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. AVIS IMPORTANT Déclaration sur l’exposition aux rayonnements Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé. Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 20 cm entre l’élément rayonnant et vous.
-
Page 21: Weee Compliance Statement
Country List BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max. TX power limit per ETSI regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states. - Page 22 © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
