Ubiquiti UA-Hub Quick Start Manual

Ubiquiti UA-Hub Quick Start Manual

Hide thumbs Also See for UA-Hub:
Table of Contents

Advertisement

Quick Links

Download this manual
11/6/2020

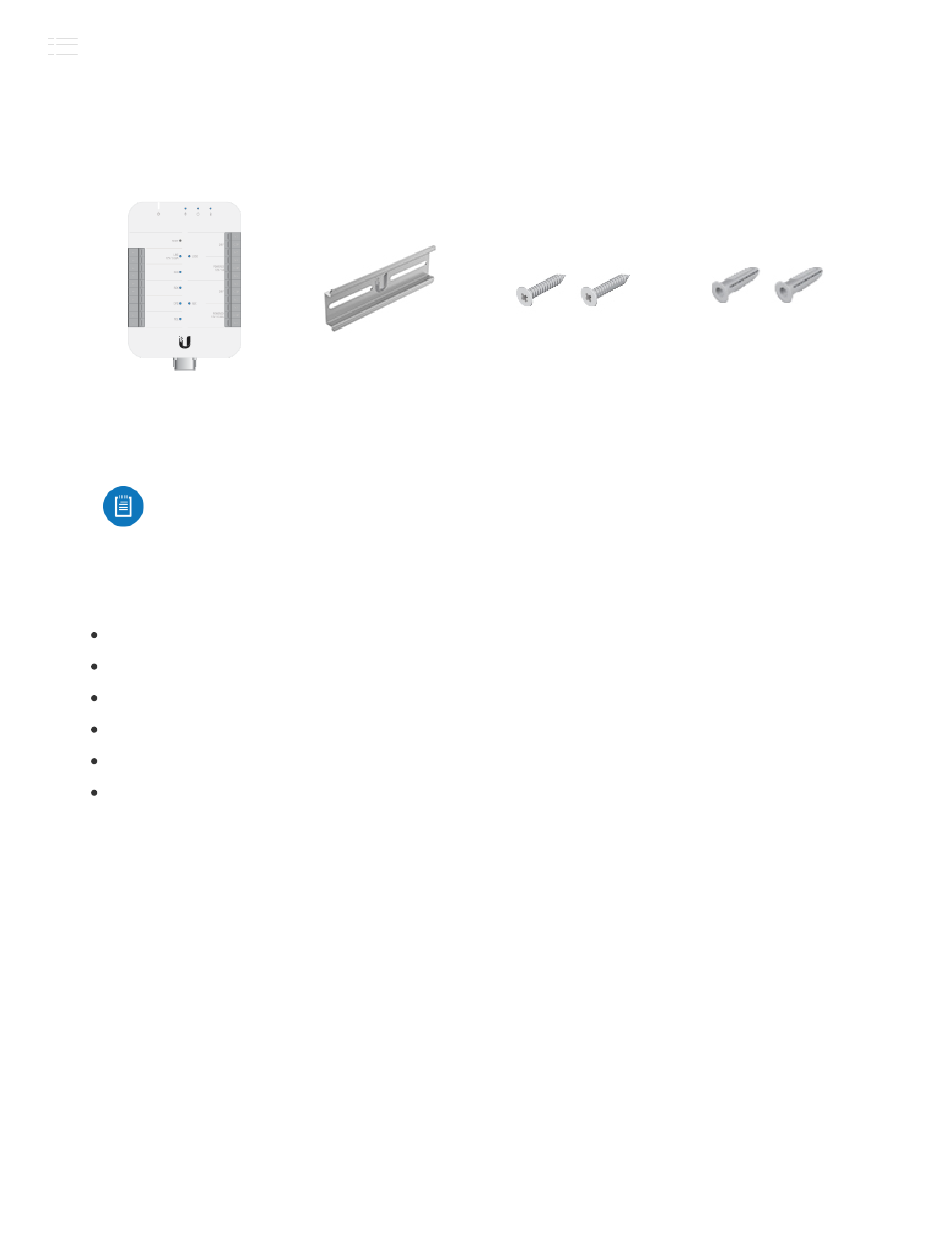

Package Contents
UA-Hub
Note:
separately.
Installation Requirements
Phillips screwdriver
Ethernet cables, CAT5e or better
Copper wire, 18 AWG to 22 AWG
Drill Kit
DIN Rail
Wire Ferrule Terminal (Recommended)
Sample Wiring Topology
https://dl.ubnt.com/qsg/UA-Hub/UA-Hub_EN.html
UA-Hub Quick Start Guide
DIN Rail
Each UniFi Access component and all third-party accessories are sold
UA-Hub Quick Start Guide
Self-Tapping Screws
(Qty. 2)
Screw Anchors
(Qty. 2)
1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UA-Hub and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti UA-Hub

Summary of Contents for Ubiquiti UA-Hub

  • Page 1 11/6/2020 UA-Hub Quick Start Guide UA-Hub Quick Start Guide Package Contents UA-Hub DIN Rail Self-Tapping Screws Screw Anchors (Qty. 2) (Qty. 2) Note: Each UniFi Access component and all third-party accessories are sold separately. Installation Requirements Phillips screwdriver Ethernet cables, CAT5e or better...

  • Page 2: Hardware Overview

    11/6/2020 UA-Hub Quick Start Guide UA-Hub Quick Start Guide Door Position Switch Externally Powered Door Opener Magnetic Lock Hardware Overview https://dl.ubnt.com/qsg/UA-Hub/UA-Hub_EN.html 2/16...
  • Page 3 11/6/2020 UA-Hub Quick Start Guide UA-Hub Quick Start Guide Power (In) LED Steady Blue Adopted/device is ready Steady White Pending adoption Alternating White/Blue Upgrading firmware PoE (Out) LEDs Not connected or no data link Steady Blue Connected and data link on...
  • Page 4 11/6/2020 UA-Hub Quick Start Guide Line voltage with 12VDC power UA-Hub Quick Start Guide Input Relays Request to enter Request to exit Door position switch Remote release Input Relay LEDs Not connected Steady Blue Effectively connected* Output Relays Output relay with no power...
  • Page 5 UA-Hub Wiring Connecting the UA-Hub to LAN Ensure the switch port that is connected to the UA-Hub is on the same LAN segment or VLAN as the UniFi Access agent. It must also support PoE+ or PoE++. Connecting the UA-Pro to the UA-Hub https://dl.ubnt.com/qsg/UA-Hub/UA-Hub_EN.html...
  • Page 6 Connecting a Fail-Safe Lock with No External Power Supply 1. Connect the Lock Powered (NC) port on the UA-Hub to the (+) on the lock. 2. Connect the Lock Powered (COM) port on the UA-Hub to the (-) on the lock.
  • Page 7 UA-Hub Quick Start Guide UA-Hub Quick Start Guide Connecting a Push Button 1. Connect NO on the push button to REL (+) on the UA-Hub. 2. Connect COM on the push button to REL (-) on the UA-Hub. Note: REL, REX, and REN all work the same way with push buttons.
  • Page 8 2. Connect COM on the motion sensor to REX (-) on the UA-Hub. 3. Connect V+ on the motion sensor to Line 12V (+) on the UA-Hub. 4. Connect V- on the motion sensor to Line 12V (-) on the UA-Hub.
  • Page 9 UA-Hub Quick Start Guide Connecting a Door Position Switch (Door Sensor) 1. Connect NC on the door position switch to the DPS (+) on the UA-Hub. 2. Connect COM on the door position switch to the DPS (-) on the UA-Hub.
  • Page 10 Connecting a Fail-Secure Lock with No External Power Supply Connect the Lock Powered NO and COM ports on the UA-Hub to the NO and COM ports on the fail-secure lock, respectively. Fail-secure lock in this diagram refers to electric strike.

  • Page 11: Hardware Installation

    11/6/2020 UA-Hub Quick Start Guide UA-Hub Quick Start Guide Hardware Installation DIN Rail https://dl.ubnt.com/qsg/UA-Hub/UA-Hub_EN.html 11/16...
  • Page 12 11/6/2020 UA-Hub Quick Start Guide UA-Hub Quick Start Guide Peripherals https://dl.ubnt.com/qsg/UA-Hub/UA-Hub_EN.html 12/16...

  • Page 13: Third-Party Accessories

    UA-Hub in one of two ways: Dry connections Powered connections, 12VDC Dry locks do not require power from the UA-Hub and are generally accompanied by their own external power or power adapter. Powered locks receive 12VDC power from the UA-Hub.
  • Page 14 11/6/2020 UA-Hub Quick Start Guide UA-Hub UA-Hub Quick Start Guide Weight 457 g (16.12 oz) Enclosure Characteristics Plastic Enclosure with Metal Mount Plate Mounting Options DIN Rail Networking Interface (4) 1 Gbps Ethernet Max. Power Consumption Power Method 802.3bt Powered Relay...

  • Page 15: Safety Notices

    11/6/2020 UA-Hub Quick Start Guide Safety Notices UA-Hub Quick Start Guide 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water.

  • Page 16: Declaration Of Conformity

    CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/UA-Hub/UA-Hub_EN.html 16/16...
